TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202122 | ORBEA ORBEA | 23
EN

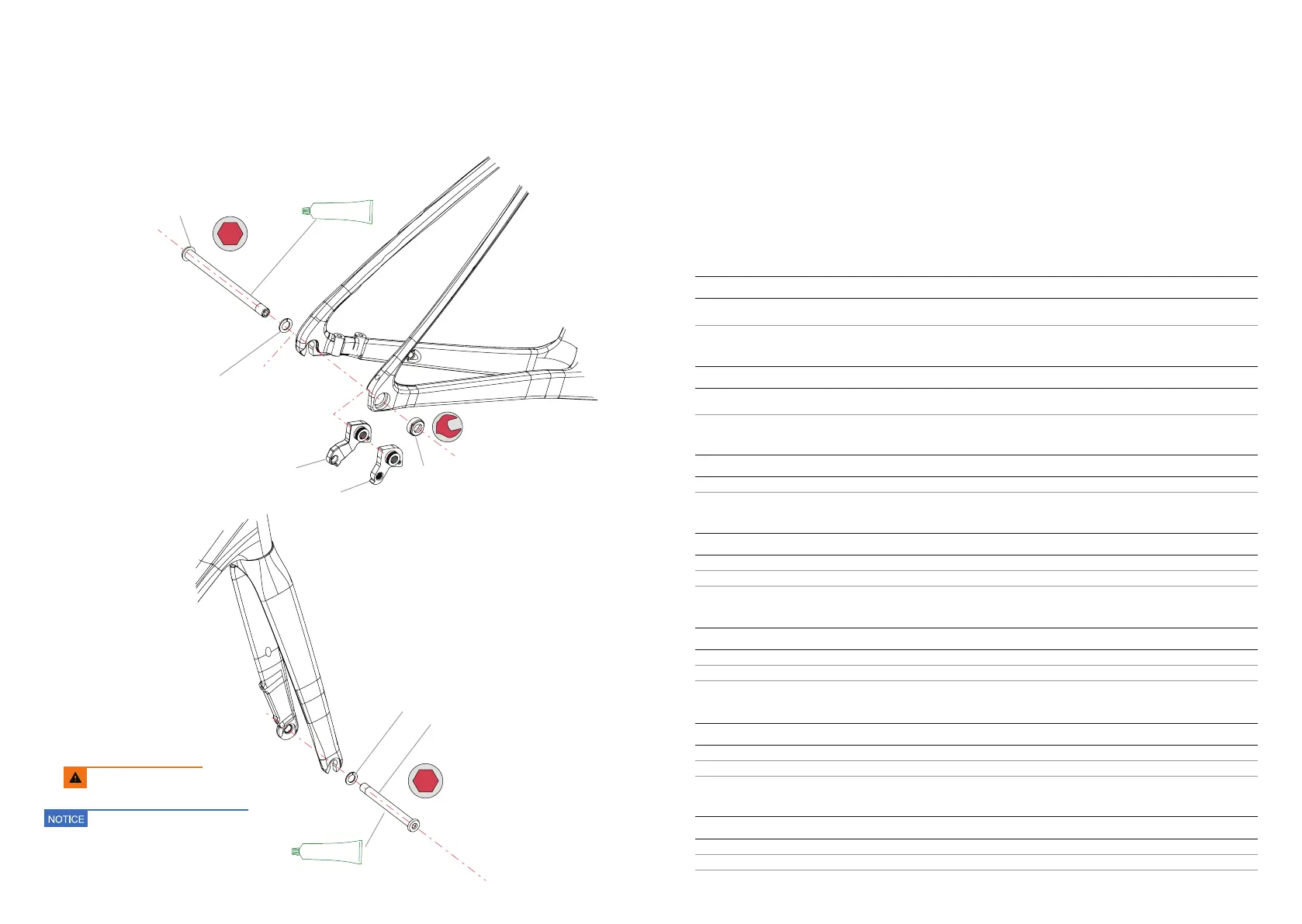

AXLES AND REAR DERAILLEUR
REAR AXLE
07 M18 DER. HANGER NUT X12 ROAD 20
ART Nº: X049 QUANTITY
M18 DER. HANGER NUT X12 ROAD 20 1
08 THRU-AXLE ROAD 12x165mm. DOUBLE LEAD THREAD PITCH 2P1.0x15mm
ART Nº: X050 QUANTITY
8.1 AXLE ROAD 12x165x2P1.0x15mm 1
8.2 AXLE WASHER 12mm 1
09 THRU-AXLE ROAD 12x165mm LITE. DOUBLE LEAD THREAD PITCH 2P1.0x15mm
ART Nº: X051 QUANTITY
9.1 AXLE ROAD 12x165x2P1.0x15mm LITE 1
9.2 AXLE WASHER 12mm 1
11 THRU-AXLE ROAD 12x119mm. DOUBLE LEAD THREAD PITCH 2P1.0x13mm
ART Nº: X053 QUANTITY
11.1 AXLE ROAD 12x119x2P1.0x13mm 1
11.2 AXLE WASHER 12mm 1
12 THRU-AXLE ROAD 12x119mm LITE. DOUBLE LEAD THREAD PITCH 2P1.0x13mm
ART Nº: X054 QUANTITY
12.1 AXLE ROAD 12x119x2P1.0x13mm LITE 1
12.2 AXLE WASHER 12mm 1
FRONT AXLE
4 N.m
17
2
6
10 N.m
GREASE
8.1 / 9.1
8.2 / 9.2
6.1
5.1
7
Always follow the recommended
torque settings.
Orca OMR is only compatible with thru-axles
with a double-lead 2P1.0 thread pitch for
faster wheel changes.
The use of axles with other thread pitch will
damage the frame.
3
6
10 N.m
11.2 / 12.2
11.1 / 12.1
GREASE
05 REAR DERAILLEUR HANGER STANDARD ROAD 20 X12
ART Nº: X047 QUANTITY
5.1
DER. HANGER ROAD 20 STD X12
BOLT M4x12. The bolt is not used on Orca OMR
1
06 REAR DERAILLEUR HANGER DIRECT MOUNT ROAD 20 X12
ART Nº: X048 QUANTITY
6.1
DER. HANGER ROAD 20 DM X12
BOLT M4x12. The bolt is not used on Orca OMR
1

Orbea ORCA M40 Specifications

General

Frame Material	Carbon
Groupset	Shimano 105
Shifters	Shimano 105 R7020
Front Derailleur	Shimano 105 R7000
Rear Derailleur	Shimano 105 R7000
Bottom Bracket	Shimano Press Fit
Chain	KMC X11
Frame	Orbea Orca Carbon OMR
Fork	Orbea OMR Carbon
Brakes	Shimano R7070 Hydraulic Disc
Crankset	Shimano RS510 34x50
Cassette	Shimano 105 R7000
Wheelset	Orbea Ready GR
Wheels	Orbea Ready GR
Tires	Vittoria Zaffiro V Rigid bead 700x25c
Handlebar Details	Drop: 125mm
Headset	FSA Integrated
Seatpost	OC2 Carbon 27.2mm
