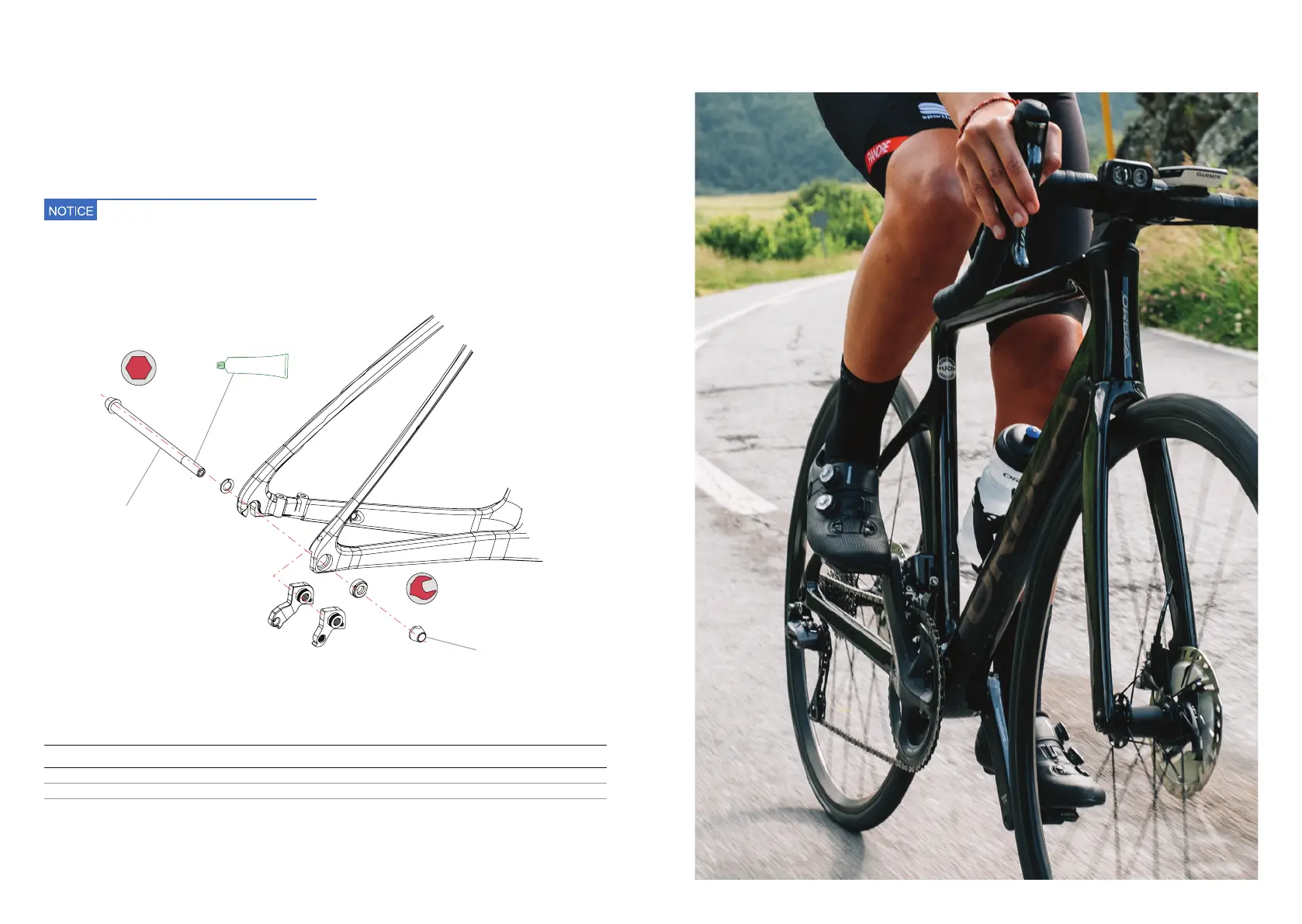

14 TRAINER AXLE. DOUBLE LEAD 2P1.0x35mm THREAD
ART Nº: X056 QUANTITY
14.1 TRAINER AXLE 12x183x2P1.0x35mm 1
14.2 TRAINER AXLE NUT 12mm 1
TRAINER AXLES COMPATIBILITY
3
5
4 N.m
17
6
10 N.m
GREASE
14.1
14.2
To use your Orca OMR on a trainer, a dou-
ble-lead 2Px1.0 thread pitch trainer axle
must be used. Installing axles with a diffe-
rent thread pitch will damage the frame.
