Orbea ORCA M40 User Manual

TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202126 | ORBEA ORBEA | 27
EN

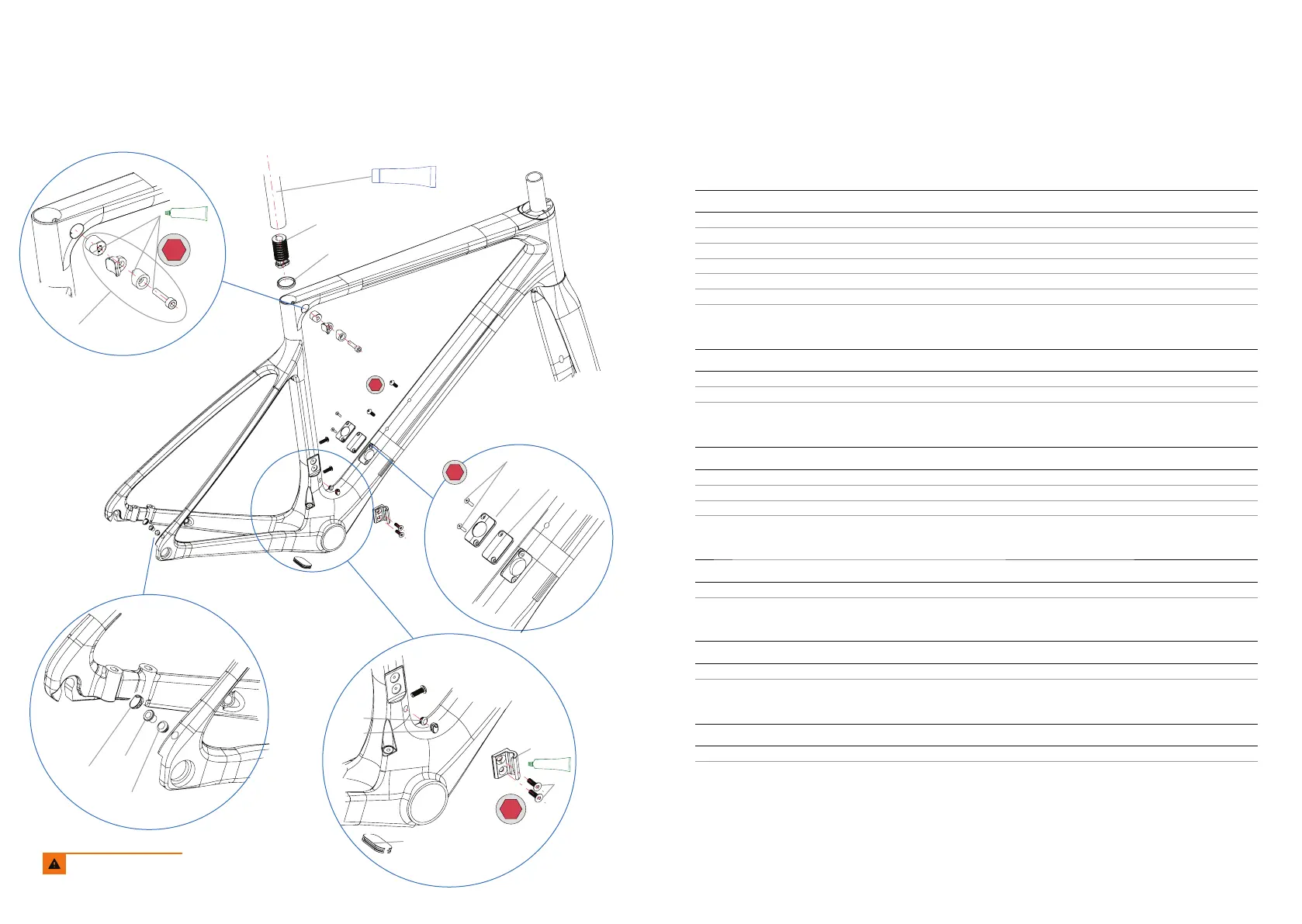

FRAME HARDWARE
Always follow the recommended
torque settings.
15 GROMMET/CABLEGUIDE KIT ORCA OMR MECHANICAL/DI2/ETAP
ART Nº: X057 QUANTITY
15.1 BLIND GROMMET FRONT DER. MECH/ETAP 1
15.2 DI2 GROMMET FRONT DER. 1
15.3 SEATSTAY STOP MECHANICAL 1
15.4 DI2 SEATSTAY GROMMET 1
15.5 BLIND GROMMET SEATSTAY ETAP 1
15.6 BB COVER 1
16 FRONT DERAILLEUR HANGER
ART Nº: X058 QUANTITY
16.1 FRONT DER. HANGER 1
16.2 BOLT M5x16 2
17 DOWNTUBE COVER KIT
ART Nº: X059 QUANTITY
17.1 DI2 JUNCTION COVER DT 1
17.2 BLIND DT COVER MECH/ETAP 1
17.3 BOLT M3x12 2
18 SEATPOST WEDGE ORCA OMX/OMR
ART Nº: X060 QUANTITY
SEATPOST WEDGE ORCA OMX/OMR 1
19 RUBBER COLLAR SEATPOST 27.2
ART Nº: X061 QUANTITY
RUBBER COLLAR SEATPOST 27.2 1
20 DI2 BATTERY SEATPOST HOLDER 27.2
ART Nº: X062 QUANTITY
DI2 BATTERY SEATPOST HOLDER 27.2 1
3
4 N.m
FIBER CARBON GRIP
5
8 N.m
2
3 N.m
18
20
19
17.3
17.1
17.2
15.4
15.3
15.5
3
4 N.m
15.1
16.1
16.2
15.2
15.6
GREASE
GREASE

Orbea ORCA M40 Specifications

General

Frame Material	Carbon
Groupset	Shimano 105
Shifters	Shimano 105 R7020
Front Derailleur	Shimano 105 R7000
Rear Derailleur	Shimano 105 R7000
Bottom Bracket	Shimano Press Fit
Chain	KMC X11
Frame	Orbea Orca Carbon OMR
Fork	Orbea OMR Carbon
Brakes	Shimano R7070 Hydraulic Disc
Crankset	Shimano RS510 34x50
Cassette	Shimano 105 R7000
Wheelset	Orbea Ready GR
Wheels	Orbea Ready GR
Tires	Vittoria Zaffiro V Rigid bead 700x25c
Handlebar Details	Drop: 125mm
Headset	FSA Integrated
Seatpost	OC2 Carbon 27.2mm
