TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202116 | ORBEA ORBEA | 17
EN

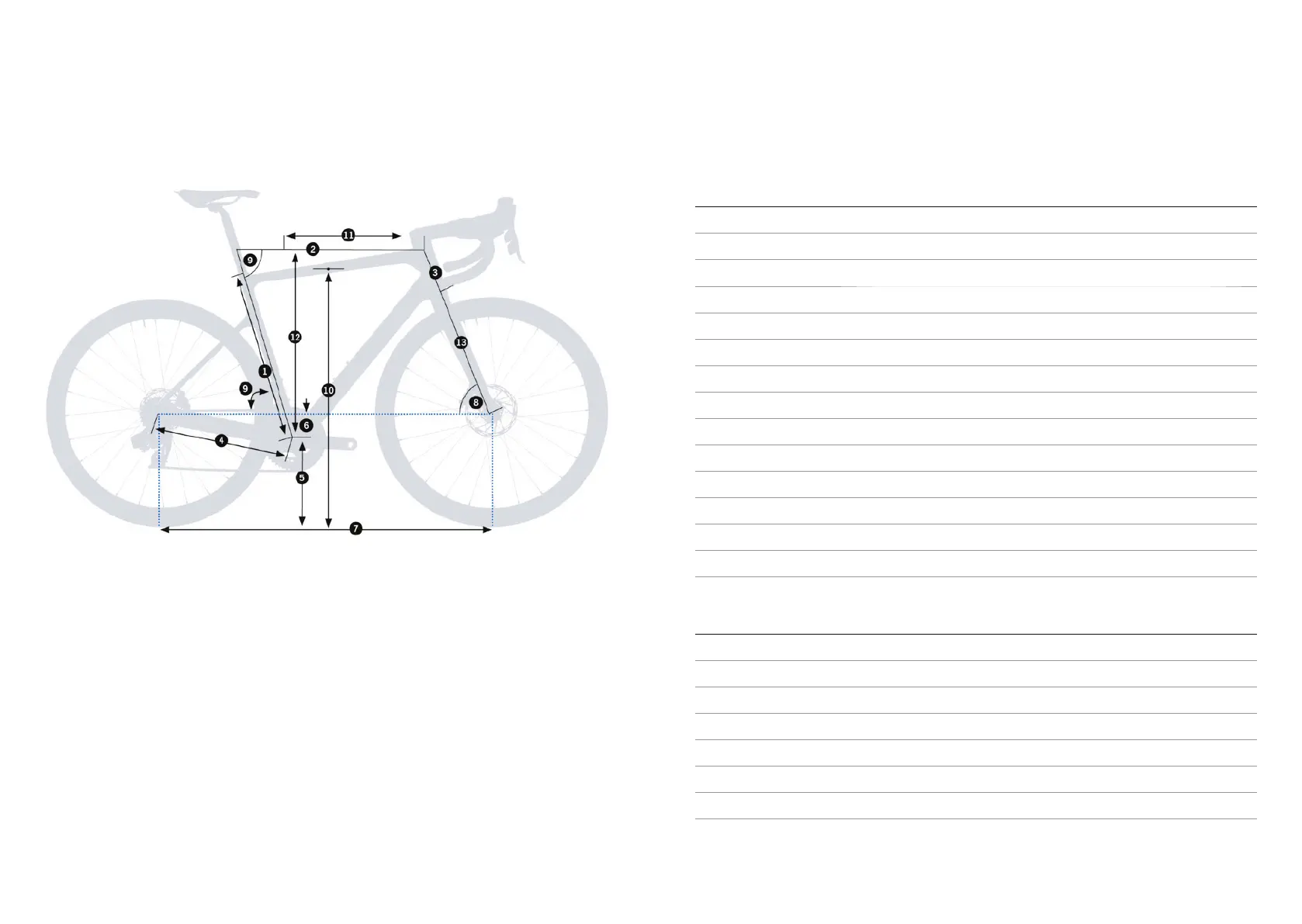

GEOMETRY AND SIZING
ORCA OMR
HEIGHT (CM) HEIGHT (IN) SIZE*
155-160 61.1”-63.0” 47
160-166 63.0”-65.4” 49
167-172 65.7”-67.7” 51
173-179 68.1”-70.5” 53
180-185 70.9”-72.8” 55
186-191 73.2”-75.2” 57
192-207 75.6”-81.5” 60
SIZES 47 49 51 53 55 57 60
1 - Seat Tube (C-T)
440 460 480 500 520 540 570
2 - Top Tube (EFF)
510 523 535 548 560 576 590
3 - Head Tube
105 113 130 148 168 186 213
4 - Chainstay
408 408 408 408 408 408 408
5 - BB Height
267 267 267 269 269 269 269
6 - BB Drop
72 72 72 70 70 70 70
7 - Wheelbase
972 976 980 981 991 1002 1016
8 - Head Angle
71º 71,5º 72,2º 72,8º 73º 73,2º 73,2º
9 - Seat Angle
74.5º 74º 73.7º 73.5º 73.5º 73.2º 73.2º
10 - Standover
735 747 766 787 807 825 851
11 - Reach
367 372 377 382 388 395 401
12 - Stack
513 522 540 559 579 597 623
13 - Fork Length
370 370 370 370 370 370 370
14 - Rake
48 48 48 43 43 43 43
* These sizing measurements are an approximate guide. The most effective method to choose the right size for you is to try the
bicycle at one of our authorized dealers.

Orbea ORCA M40 Specifications

General

Frame Material	Carbon
Groupset	Shimano 105
Shifters	Shimano 105 R7020
Front Derailleur	Shimano 105 R7000
Rear Derailleur	Shimano 105 R7000
Bottom Bracket	Shimano Press Fit
Chain	KMC X11
Frame	Orbea Orca Carbon OMR
Fork	Orbea OMR Carbon
Brakes	Shimano R7070 Hydraulic Disc
Crankset	Shimano RS510 34x50
Cassette	Shimano 105 R7000
Wheelset	Orbea Ready GR
Wheels	Orbea Ready GR
Tires	Vittoria Zaffiro V Rigid bead 700x25c
Handlebar Details	Drop: 125mm
Headset	FSA Integrated
Seatpost	OC2 Carbon 27.2mm
