ENG
VEGA
TWILIGHT SWITCH
INSTRUCTIONS

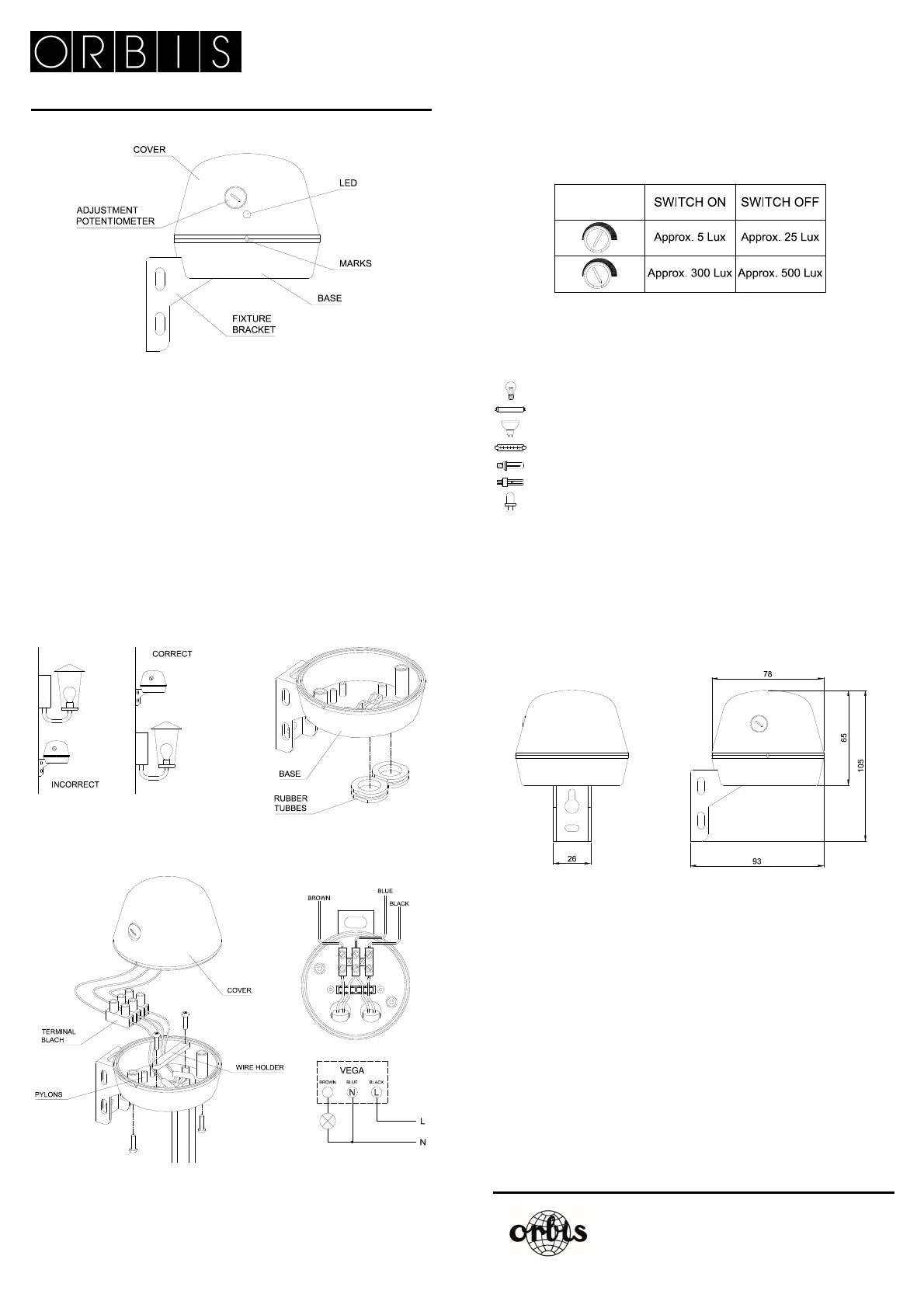

DESCRIPTION
The VEGA twilight switch permits the controlling of premises depending on the
prevailing light.
The device compares the surrounding light with the adjusted level; if it is less than
this level, it is activated after a delay time. When the light increases and reaches
the switch off level, it turns off after the delay time.
INSTALLATION
Note: the installation and fitting of electrical devices must be carried out by an
authorised fitter.
BEFORE BEGINNING THE INSTALLATION, DISCONNECT THE POWER SUPPLY.
The apparatus is internally protected against interferences from safety circuits.
However, some specially strong electromagnetic fields may cause an incorrect
functioning; therefore, it must not be installed near inductive fields (motors,
transformers, etc.)
FITTING AND CONNECTION
On a wall or support avoiding direct sunlight. Do not install in places where artificial
light may affect the dusk switch or where flashes or reflections may be produced.
Open the device by removing the two fixture screws situated in the base.
Insert 2 rubber tubes in the opening at the base of the device.
Pass the wires through the tubes and connect them to the connection terminals as
shown in the diagrams.
Insert the connection strip in the pylons at the base of the device and fasten the
wires by means of the provided wire holder with two screws.
Close the device by making sure the two existing marks at the top and the base
coincide and fasten it with the two screws.
ADJUSTMENT
The adjustment of the dawn switch must be carried out when the surrounding light
is that required to switch on the lighting, operating on the adjustment
potentiometer.
Turn it anti-clockwise to minimum. Then turn it gradually in the opposite direction
until the LED lights up. The light will switch on approximately 60 seconds after the
LED lights up.
The dawn switch turns on and switches off after an approximate delay time of 60
seconds. The purpose of these delay mechanisms is to avoid them being activated
or switched off due to sudden changes in the light (lightning, clouds, headlights,
etc.)
TECHNICAL CHARACTERISTICS
Supply 230V~ 50Hz
Breaking power 10(3) A / 250V~
Maximum Recommended charges
Incandescent lamps 2000 W
Fluorescent tubes 100 VA
Low voltage halogen (12 Vac) 1000 VA
Halogen (230 Vac) 1000 W
Low consumption lamps (CFL) 100 VA
Low consumption lamps (Downlights) 100 VA
Led lamps 50 VA
Own consumption 8VA (1W approx.)
Sensor type Sulphur Cadmium
Sensibility 5-300 Lux. Logarithmic.
Lighting up delay 60 seconds
Switching off delay 60 seconds
Working temperature -30 C to +50 C
Degree of protection IP54 according to EN 60529
Class of protection II according to EN 60335 with
correct installation
DIMENSIONS
07/07.2018 A016.13.50527
ORBIS TECNOLOGÍA ELÉCTRICA, S.A.
Lérida, 61 E–28020 MADRID
Teléfono:+ 34 91 5672277; Fax:+34 91 5714006
E-mail: info@orbis.es
http://www.orbis.es
