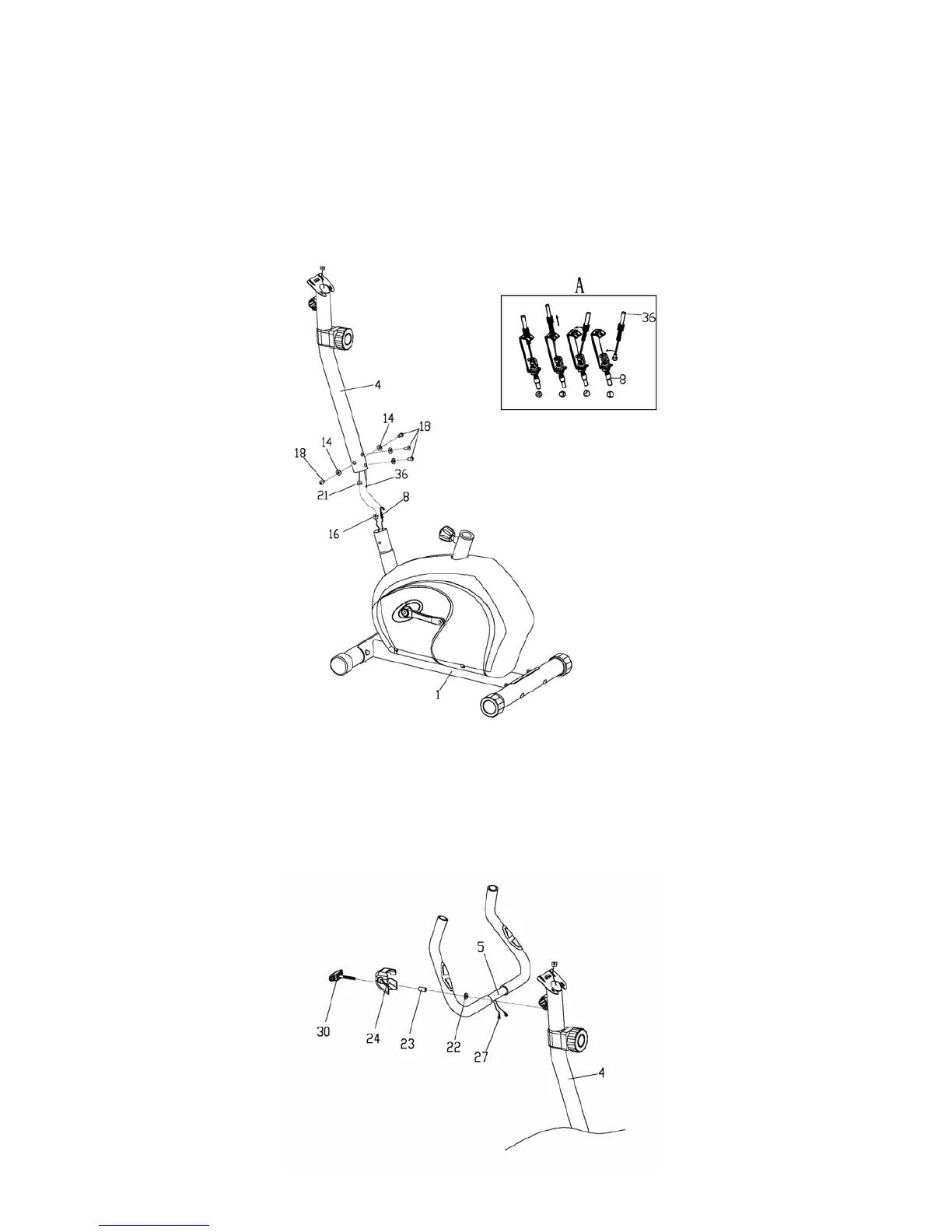

Step 2:
Connect the Sensor connective wire (21) with the Sensor wire (16), then connect the Resistance
wire (8) with the Resistance controller (36) as picture A show.
Fix the Front vertical tube (4) to the Main frame (1) with the Bolts (18) and Arc washers (14).
Step 3:
Put the Pulse wire (27) through to the top hole of the Front vertical tube (4), then adjust the Handle
bar (5) to a appropriate location ,then tighten the Handlebar to the Front vertical tube (4) with
T-shaped bolt(30), Handle cover(24), Fix pipe (23) and Flat washer(22).
