ASSEMBLY INSTRUCTION:
1.PREPARATION:
A. Before assembling make sure that you will have enough space around the item.
B. Use the present tooling for assembling.
C. Before assembling please check whether all needed parts are available (at the above
of this instruction sheet you will find an explosion drawing with all single parts (marked
with numbers) which this item consists of.
2.ASSEMBLY INSTRUCTION:
:

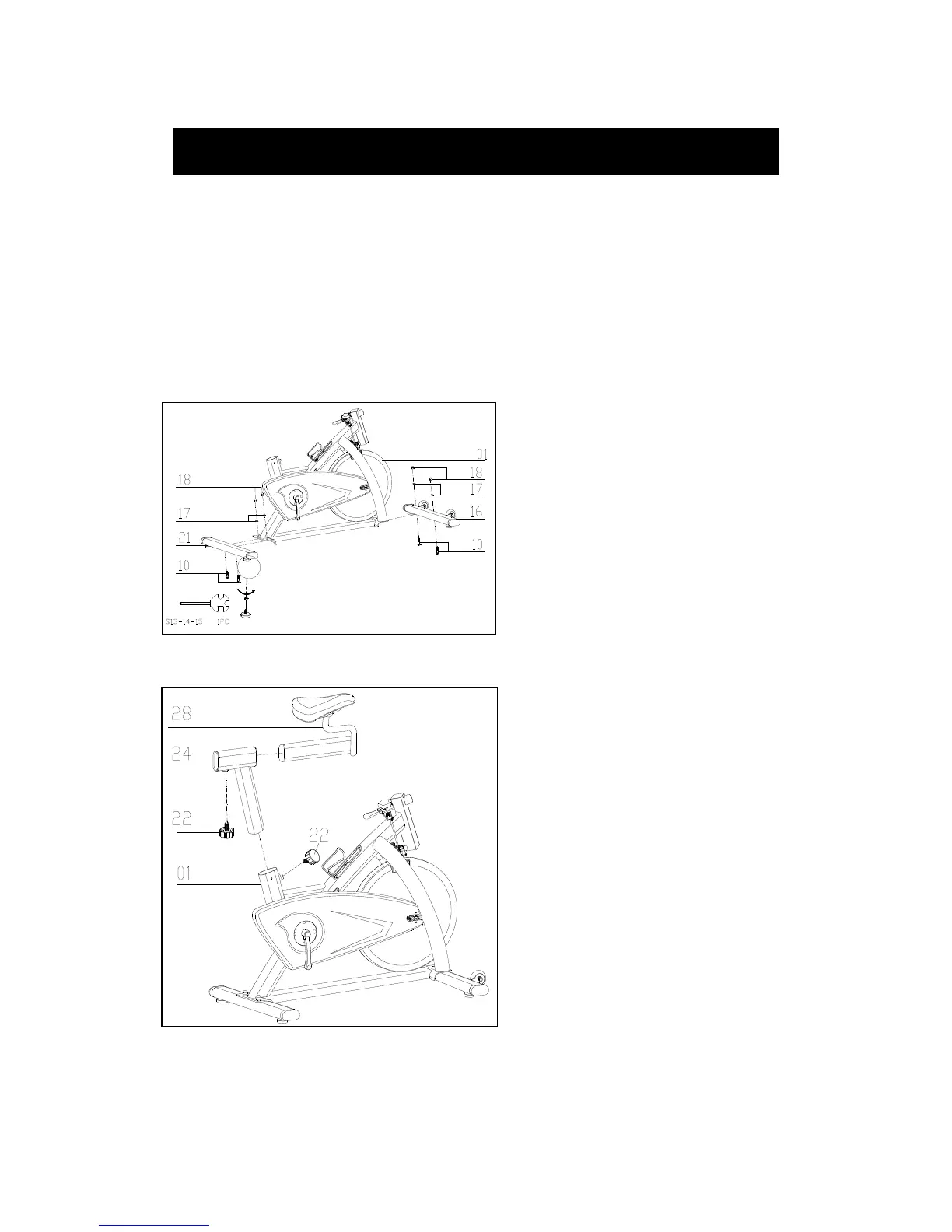

FIG.2
FIG.2:
Slide the Vertical Seat Post (pt.24)
into the seat post housing on the main
frame (pt.01). Then slide the Seat
Post (pt.28) into the Vertical Seat Post
(pt.24). You will have to slacken the
knurled section of the Spring
Adjustment Knob (pt.22) and pull the
knob back and then select and align
holes for the desired height. Release
the knob and retighten the knurled
portion.
Now fix the Seat (pt.29) to the Seat
Post (pt.28) as shown, and tighten the
bolts around the screws under the
seat.
FIG.1:
Remove the bolts and nut from the
bottom tube, then attach the Front
Stabilizer (pt.16) to the Main Frame
(pt.01) using two sets of Ø8 Flat
Washers (pt.17), M8 Domed Nut (pt.18)
and M8*55 Carriage bolt (10).
Attach the Rear Stabilizer (pt.21) to the
Main Frame (pt.01) using two sets of
Ø8 Flat Washers (pt.17), M8 Domed
Nut (pt.18) and M8*55 Carriage bolt
(10).
