Orbit Silver XT - Arm and End Cap Installation (Steps 6-7)

10
ASSEMBLY INSTRUCTIONS

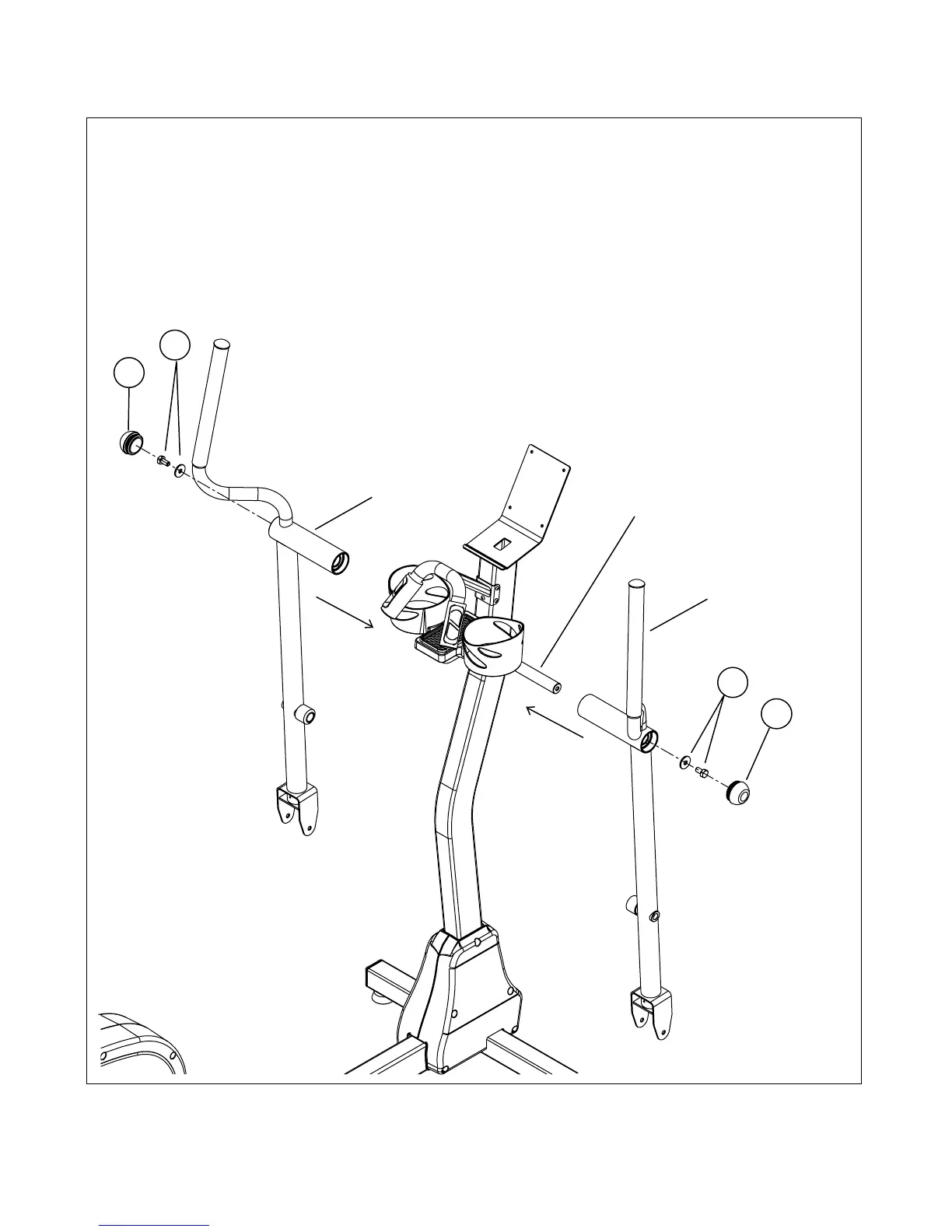

STEP 6: Slide the Right Arm onto the shaft as indicated below. Secure the right arm to the
shaft using bolt 'E' and washer 'K'. Repeat this procedure for the Left Arm.
STEP 7: Install the end caps for both arms.
Shaft
Right Arm
Left Arm
6
7
6
7
