Orbit Silver XT - Link Shaft Installation (Step 8)

11

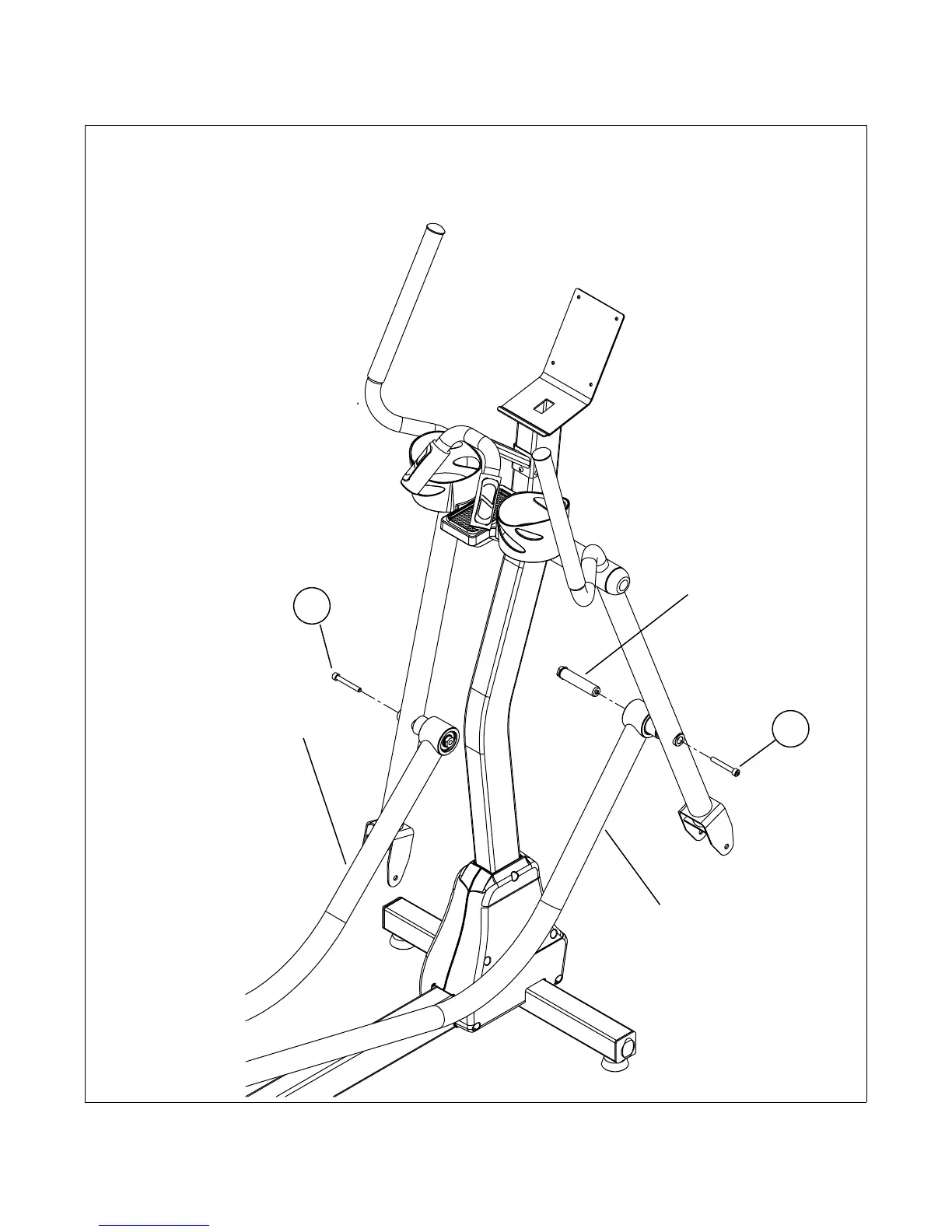

STEP 8: Insert the Link shaft through the Right link and into the hole on the Right arm as
indicated below. Use screw 'D' to secure the link shaft. Perform the same procedure for the
Left link
ASSEMBLY INSTRUCTIONS
Link Shaft
Right Link
Left Link
