Orbit Silver XT - Foot Link and Arm Attachment (Steps 9-10)

12
ASSEMBLY INSTRUCTIONS

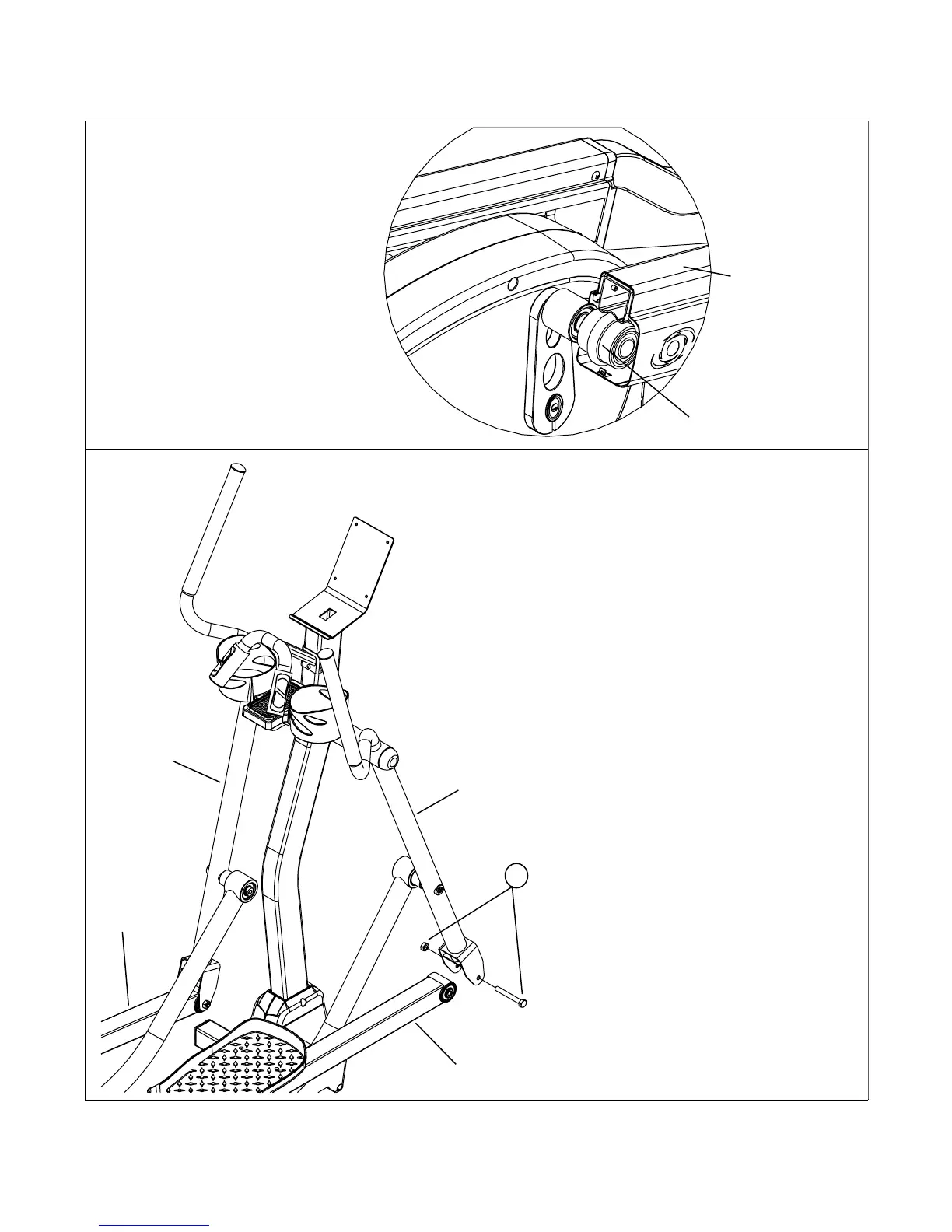

STEP 9: Slide the Right Foot Link on to
the Right Foot Link Roller, as shown
to the right, making sure the convex
hump on the roller is centered with
the concave portion of the square
tube.
STEP 10: Attach the Right Foot Link
to the Right Arm using Bolt 'B' and Nut 'J'
as shown below. Repeat steps 9 & 10
for the Left side.
Right Arm
Left Arm
Left Foot Link
Right Foot Link
10
Right Foot Link
Right Foot Link Roller
