Notice: Do not turn on before assembly is done.

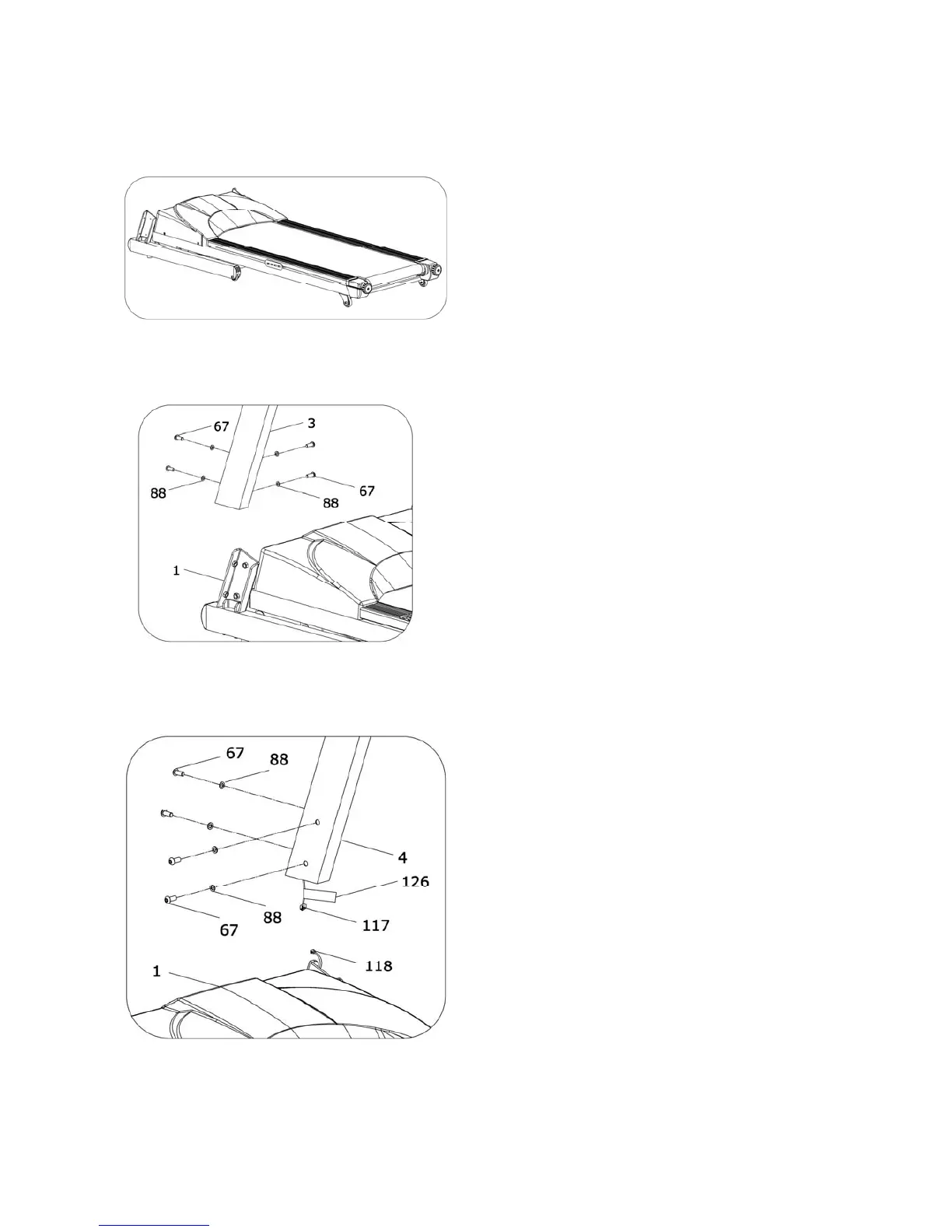

ASSEMBLY STEP 1：
4
Open the carton，get out the above spare
parts ， put the MAIN FRAME on the
ground.
ASSEMBLY STEP 2：
Use the 6# allen wrench, drill through
the bolt (67) to Lock washer(88), then
lock the Left upright (3) onto MAIN
FRAME (1)
ASSEMBLY STEP 3：
1 、 Connect the computer middle
wire(117) under the right upright
tube with computer lower wire(118)
on the main frame. Then insert the
right upright (4) into main frame(1)
Warning: Please note not to damage
the wires.The connect method is
shown on lable(126)
2 、 Use 6# wrench, M10*20
screw(67) and flat head bolt to fix the
Right upright to Main Frame(1)
