Operation Manual
CompactDual – Two in One
© 08/2019 Rev 0 / Subject to change without notice! Page 47/53

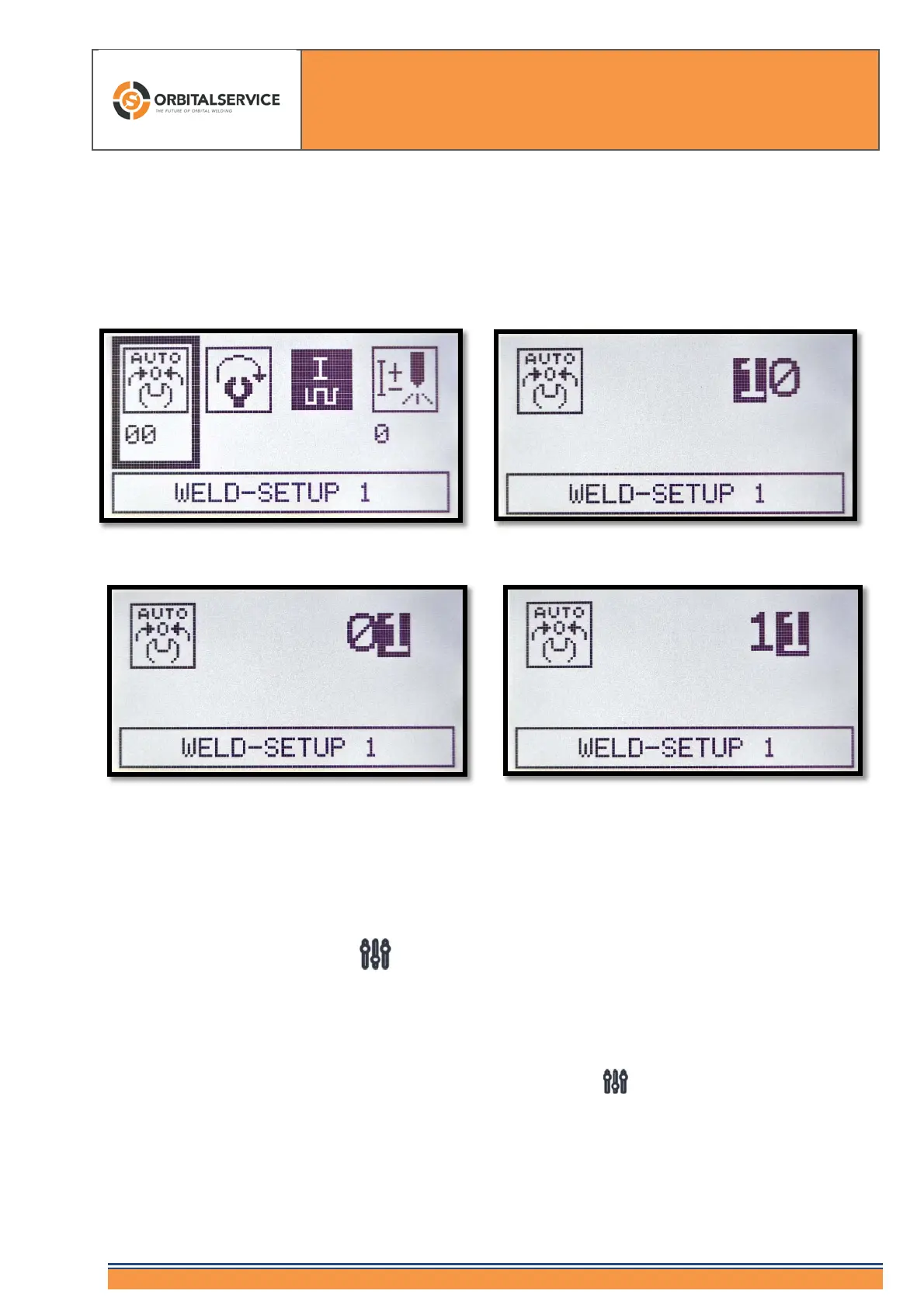

Automatic winding and unwinding
With this function, you have the possibility, e. g. with an open weld head, to wind up the hose
assembly before starting of the welding process and after finishing the weld, the weld head
returns to the start position.
No winding and unwinding Winding activated, No unwinding
No winding, only return to the Start Position Both activated
Sense of Rotation
If field is NOT highlighted in black, one sense of rotation, if highlighted in black, the other
sense of rotation.
Setting performed with button
Pulsed Current
As a rule, with orbital welding, currents are always pulsed. If this is not desired in some
special cases, you can change this by means of the button . In this case, just one current
value is shown in the main screen, and no pulsing times are displayed.
