Orcon MVS-15RH - Electrical Installation

3. Electrical installation
List of colour codes of power supply wiring
Code Colour
PE Green / Yellow
N Blue
L Brown
M Black (MVS-15RHBP)
H Grey (MVS-15RHBP)
List of DIP switch functions
Options DIP switch
7 8
Table A curve speeds Off -
Table B curve speeds On -
15-minute afterrun humidity sensor - Off
30-minute afterrun humidity sensor - On
6

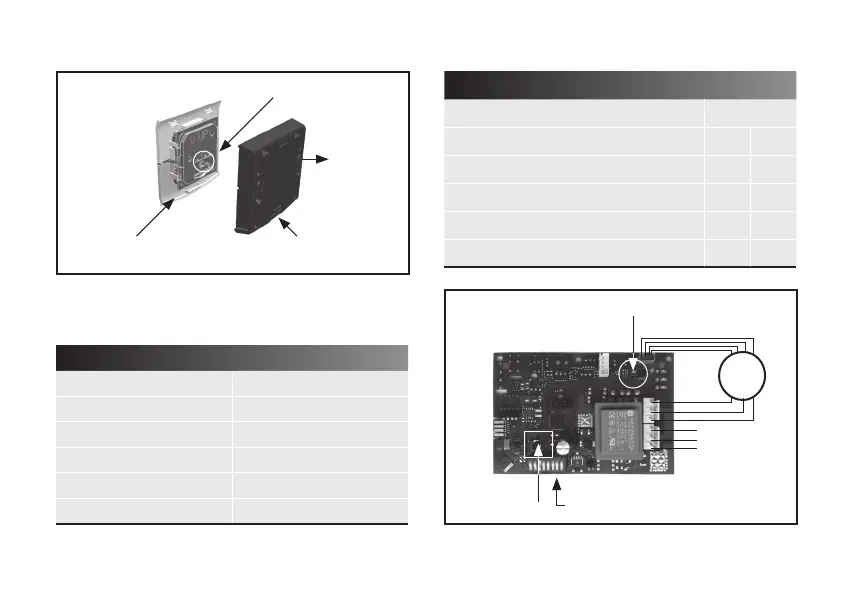

Fig. 7 Receiver PCB in the device
Fig. 6 Exploded view RF remote control
Upper part
Battery position
Wall frame
Push button to open control
DIP switches
Push button
Red/green LED
M
L
PE
N
