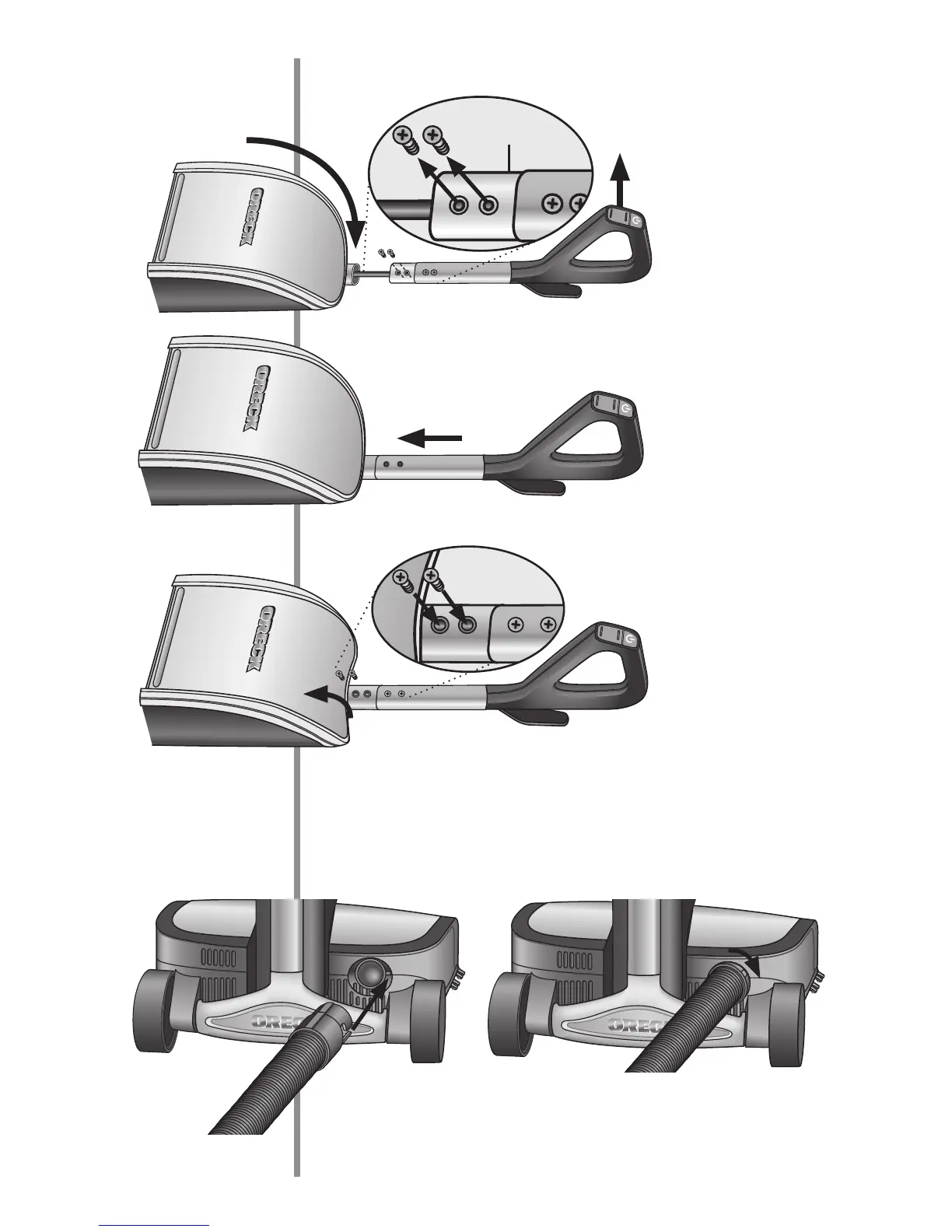

Attaching the Handle Tube
1. Place the vacuum on its back with the handle facing
up. Remove the two lower screws from the
interconnect, and set them aside.
2. Push the top handle down onto the handle tube.
3. Fasten the screws you removed in step one into
the two lower screw holes located behind the outer
bag. Tip! You may need to bend the outer bag back
slightly to expose the bottom screw holes.
Attaching the Suction Hose
1. Align the slot on the
suction hose with the
tab inside the suction
hose opening.
2. Insert the suction hose into the
opening and turn clockwise.
Interconnect
To Next Page
