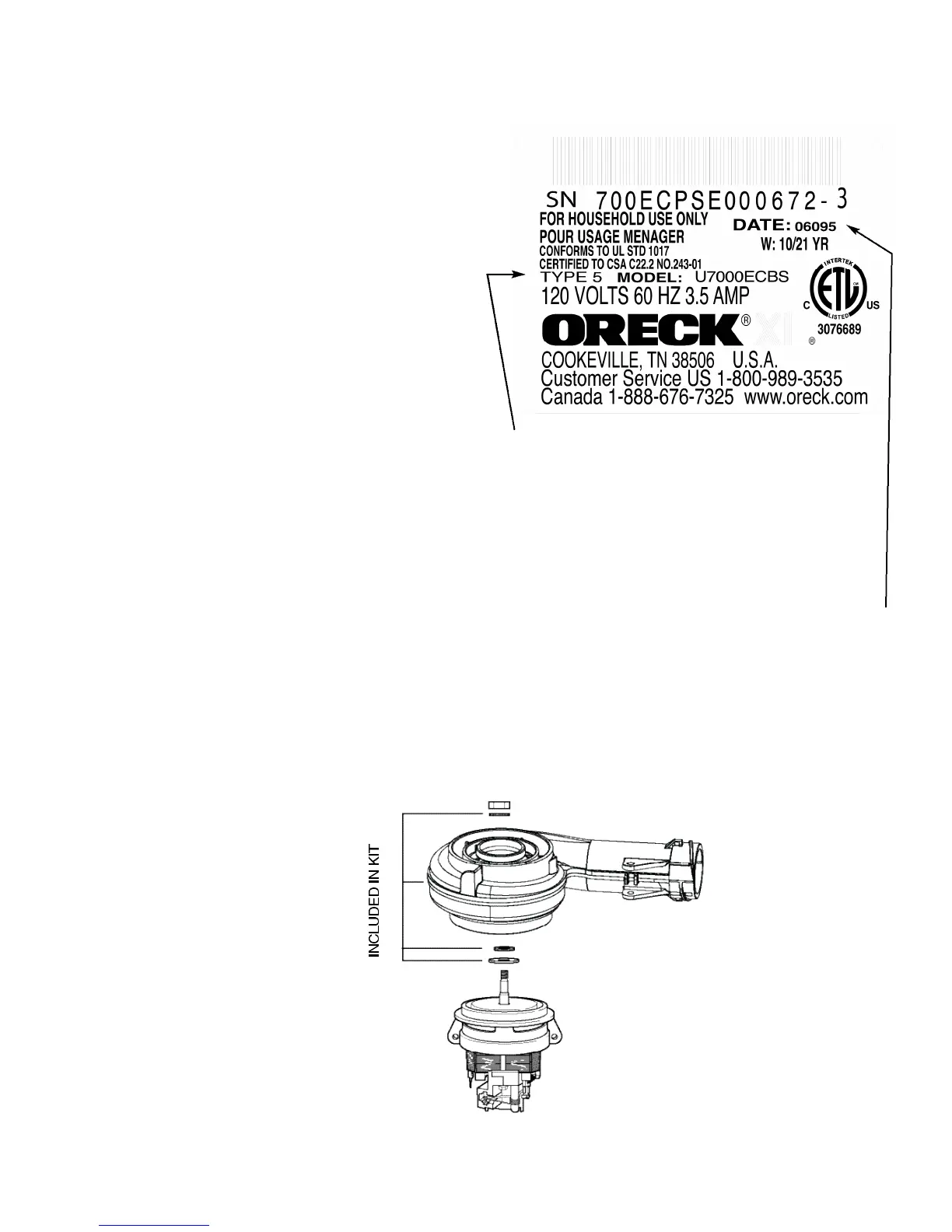

Data LabelService Information
!
Component configuration on exploded view may differ in
case of specific versions. However, the actual
components are distinguished by means of item and
part numbers.
!
If a repair has been made, make sure that all functions
of the appliance are working correctly.
!
Spare parts have been standardized as much as
possible and the part may not be the exact replacement
part.
!
To extend life of top cover, use 03751M screw for
baseplate if current screw strips.
Type Code: Represents product service
revision number.
Type 1: Initial Production
Type 2: Hardwire Handle
Type 3: Tube & Fan Housing
Type 4: Upper Handle Tube & Connector
Type 5: Fan Housing Assembly
Julian Date Code:
Represents date of manufacture.
06 Represents the year.
095 Represents the day in that year.
2
Metaxalloy™ Fan Replacement Kit
#09-77230-51
Replaces Fan Housing in all ORECK
®
XL21 upright models .
Must use both washers included in kit.
I M P O R TA N T S A F E T Y N O T E S :
l Unplug unit before servicing.
l Replacement of fans should only be done
by an experienced technician or an authorized
ORECK Service Center.
INSTRUCTIONS:
NOTE: The rivet, pushnut, and bag spring
included with this kit are assembled prior to
shipping.
1. Remove old fan housing
2. Replace Fan Housing, felt seal and both
washers
3. Place nut back on and tighten
To Next Page
