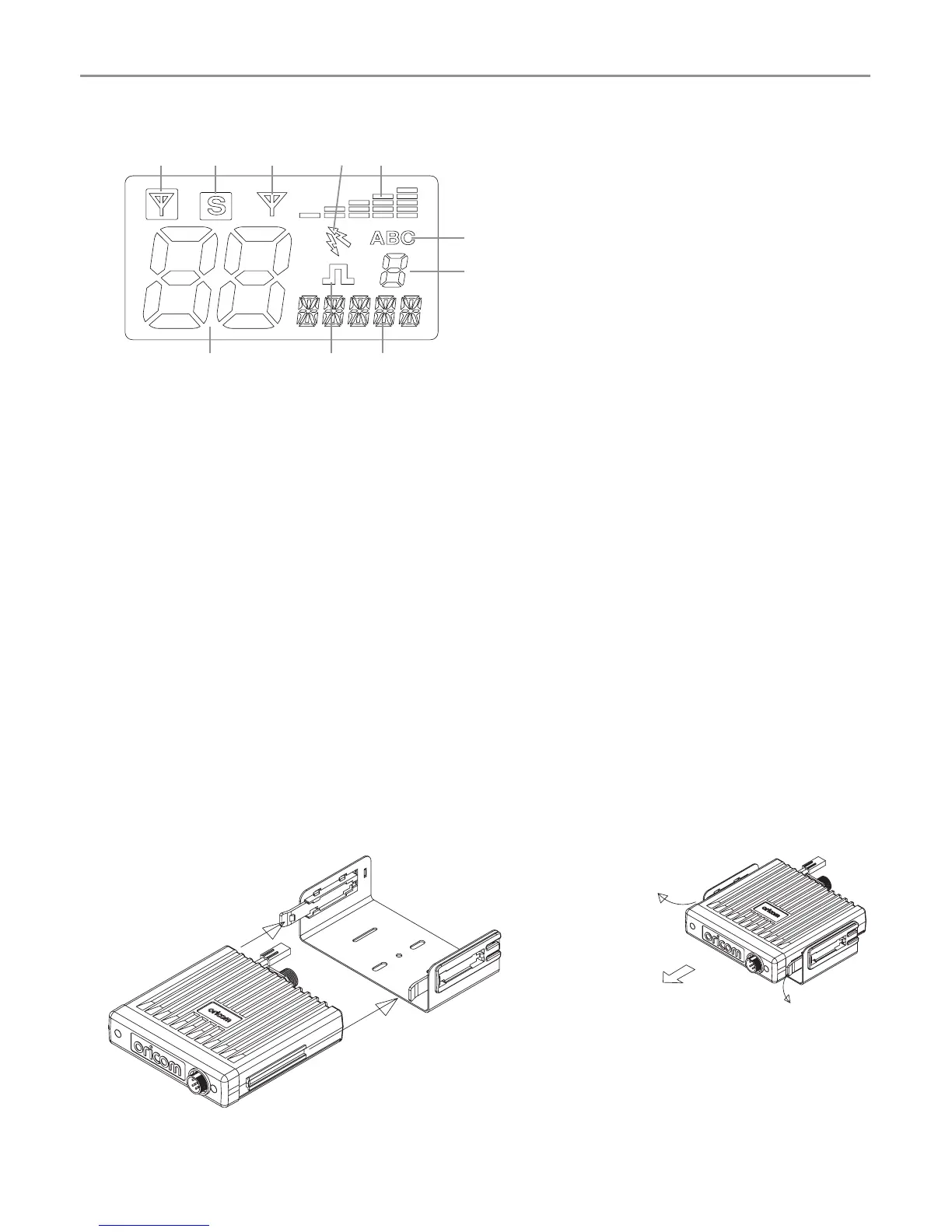

Controls and Indicators
LCD Icons & Indicators
245
6
7
8
3
1
10
9
1. Sub receiver busy 6. Group display (A, B, C groups)
2. Sub receiver on 7. Group address channel
3. Main receiver busy 8. Status display
4. Duplex on 9. CTCSS or DCS on
5. Signal strength & TX power 10. Channel display
TO MOUNT: SLIDE
INTO UNIVERSAL
MOUNTING BRACKET
TO REMOVE:
SLIDE OUT HOLDING
BRACKETS AWAY FROM
UHF RADIO
Installation of the DTX4200 and tting optional accessories
Mounting the UHF radio
The universal mounting bracket supplied with your UHF radio allows
overhead/dash mounting.
Mount the UHF radio via the bracket, securely with the supplied screws in
the desired location, ensuring the surface is sturdy and can support the
weight of the radio.

Oricom DTX4200 Specifications

General

Brand	Oricom
Model	DTX4200
Category	Radio
Language	English
