Power button
Power LED ring
One piece aluminum chassis
VFD/IR acryl window
Top panel
Slot for optical disk drive (ODD)
ODD eject button
Soft-eject access panel
I/O ports/multi-format card reader
Door latch
2 x 60mm low dB exhaust fans
I/O ports/card reader PCB
ODD bracket
Philips IR controller* fixing point
Hard drive mount brackets
VF210 VFD/IR module
HD chassis mount
2 x 60mm low dB intake fans
Auxiliary access slot
Top panel fixing screw
Philips IR blaster* fixing point
PSU intake vent (when isolated)
*part of an optional IR kit (IR221)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

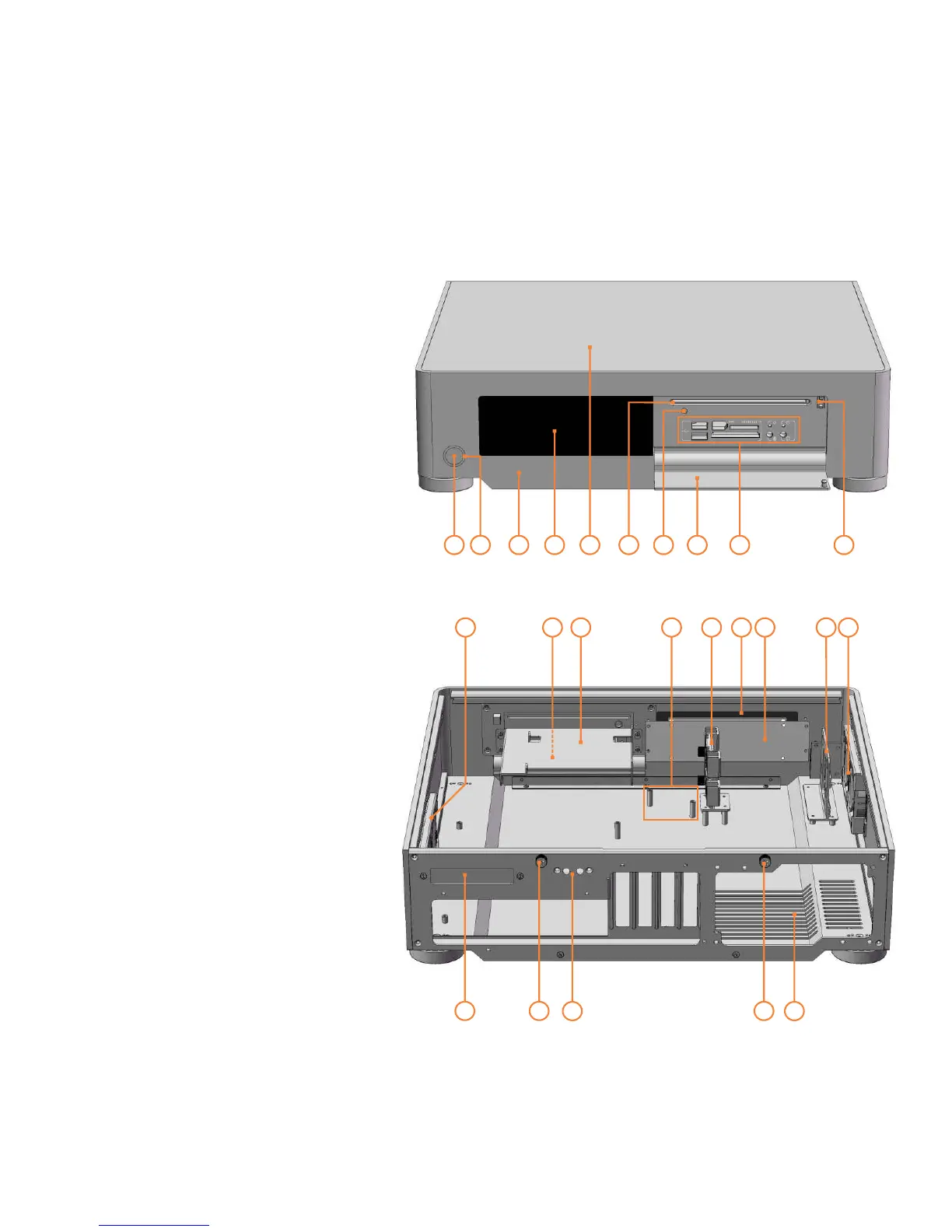

S10V overview
These are the main features and
controls of the S10V htpc enclosure.
