ASSEMBLY INSTRUCTIONS
7
9

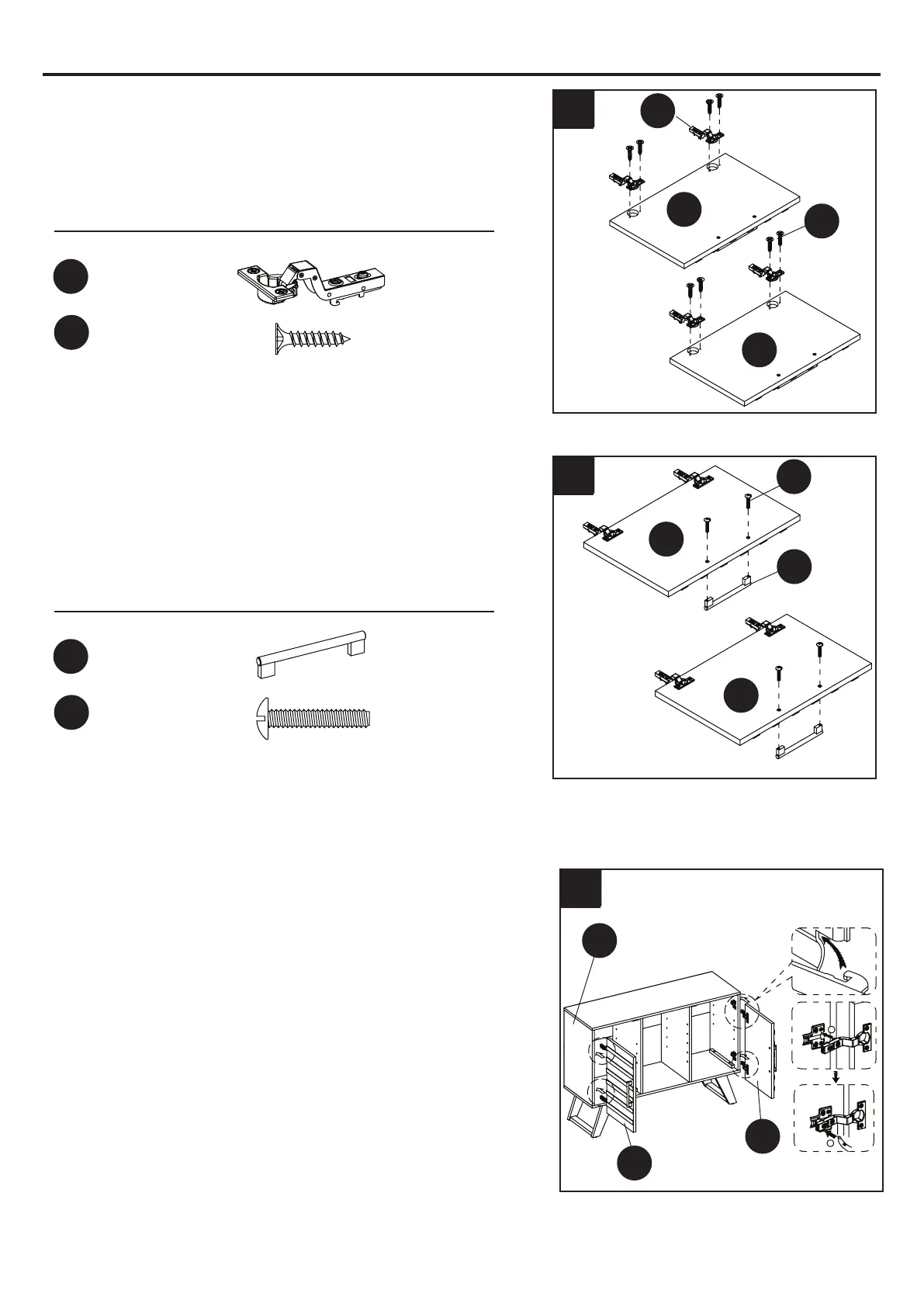

7. Extend the Hinge Arms (NN) and rest the hinge cups
onto the cutouts of each Door (E and F). Secure the
Hing Arms (NN) in place by using two screws (OO) in
each.
OO
Hardware Used
E
NN
Hinge arm
NN
x 4
OO
M3.5 x 15mm
Flat Head
Screw
x 8
E
9.1 Pick up
the
Left Door (E) and attach it to one side panel
(C) by engaging both door hinges together. Please follow
the steps below to combine the door hinges together.
a) Extend both hinge arms of the door (E) to open position.
b) Locate the lugs on mounting plates pre-attached on the
side panel (C) into the “J” hooks beneath the hinge arms.
c) Press lightly on the end of both hinge arms to engage
the catch.
d)To remove the hinge arms from the mounting plates,
press gently in the release lever on the back of hinge arms.
9.2
Repeat the same procedure to attach the right door
(F)
.
9.3 Open and close the doors to make sure they are
aligned and shut correctly. If necessary, adjust the screws
for a good t. Refer to the hinge sticker on the door for
adjustment.
