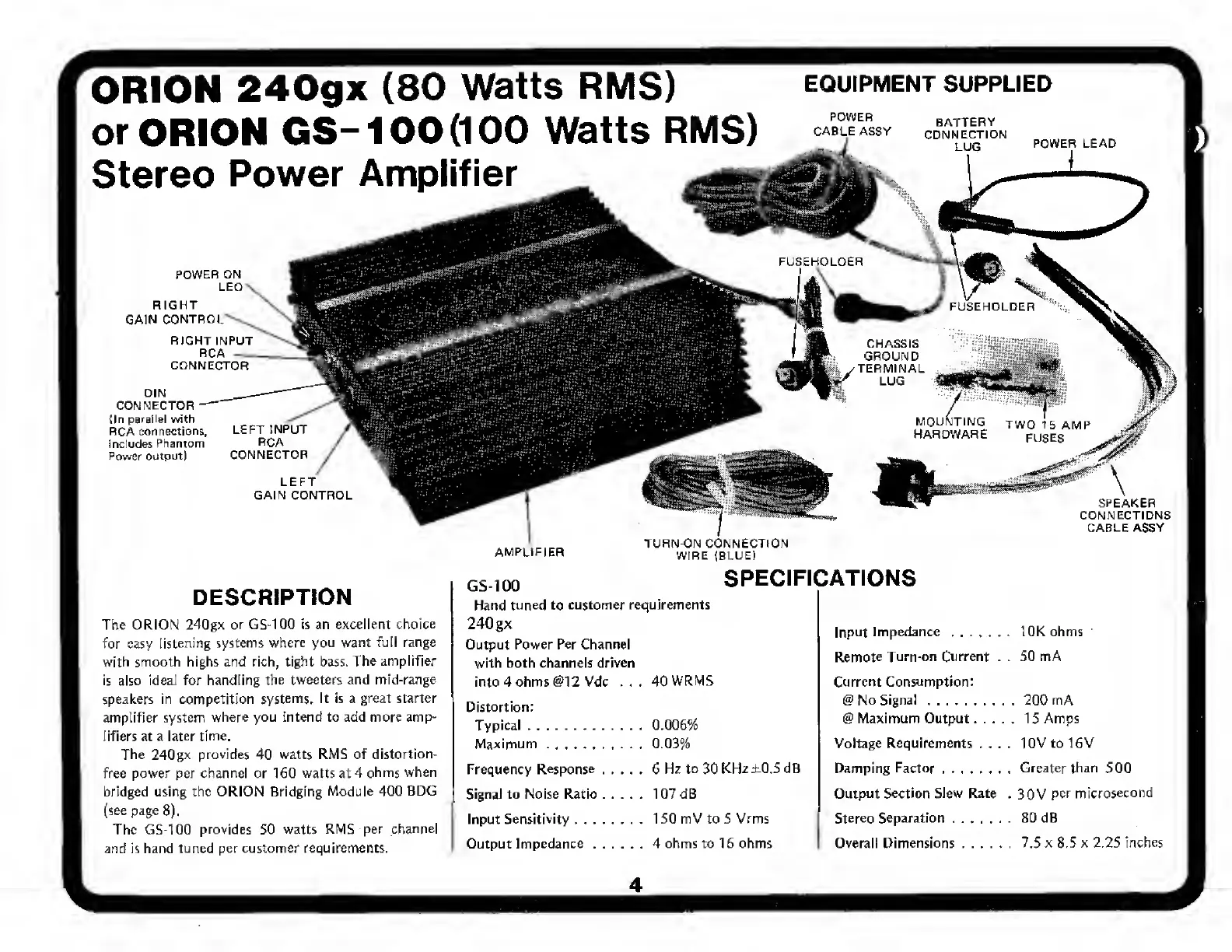

EQUIPMENT SUPPLIED
ORION 240gx (80 Watts RMS)
or ORION GS-100 (100 Watts RMS)
Stereo Power Amplifier
POWER
CABLE ASSY
BATTERY
CONNECTION _
LUG POWER LEAD
POWER ON
LED \
RIGHT
GAIN CONTROL\^
RIGHT INPUT
RCA _
CONNECTOR
DIN
CONNECTOR —
(In parallel with
RCA connections,
includes Phantom
Power output)
LEFT INPUT r
RCA /
CONNECTOR /
LEFT
GAIN CONTROL
DESCRIPTION
The ORION 240gx or GS-100 is an excellent choice
for easy listening systems where you want full range
with smooth highs and rich, tight bass. The amplifier
is also ideal for handling the tweeters and mid-range
speakers in competition systems. It is a great starter
amplifier system where you intend to add more amp¬
lifiers at a later time.
The 240gx provides 40 watts RMS of distortion-
free power per channel or 160 watts at 4 ohms when
bridged using the ORION Bridging Module 400 BDG
(see page 8).
The GS-100 provides 50 watts RMS per channel
and is hand tuned per customer requirements.
FUSEHOLDER
CHASSIS
GROUND
TERMINAL
LUG
FUSEHOLDER '*%
MOUNTING TWO 15 AMP
HARDWARE FUS ES
SPEAKER
CONNECTIONS
CABLE ASSY
AMPLIFIER
TURN-ON CONNECTION
WIRE (BLUE)
GS-100 orcv^ir
Hand tuned to customer requirements
240 gx
Output Power Per Channel
with both channels driven
into 4 ohms @12 Vdc ... 40 WRMS
Distortion:
Typical.. . 0.006%
Maximum.0.03%
Frequency Response.6 Hz to 30 KHz±0.5 dB
Signal to Noise Ratio.107 dB
Input Sensitivity.150 mV to 5 Vrms
Output Impedance.4 ohms to 16 ohms
SPECIFICATIONS
Input Impedance .....
Remote Turn-on Current
10K ohms
50 mA
Current Consumption:
@ No Signal. 200 mA
@ Maximum Output.15 Amps
Voltage Requirements .... 10V to 16V
Damping Factor.Greater than 500
Output Section Slew Rate -30V per microsecond
Stereo Separation.80 dB
Overall Dimensions.7.5 x 8.5 x 2.25 inches
4
