Orion HCCA 10.2 - Series Wiring: Single Speaker (2 Ohm)

12

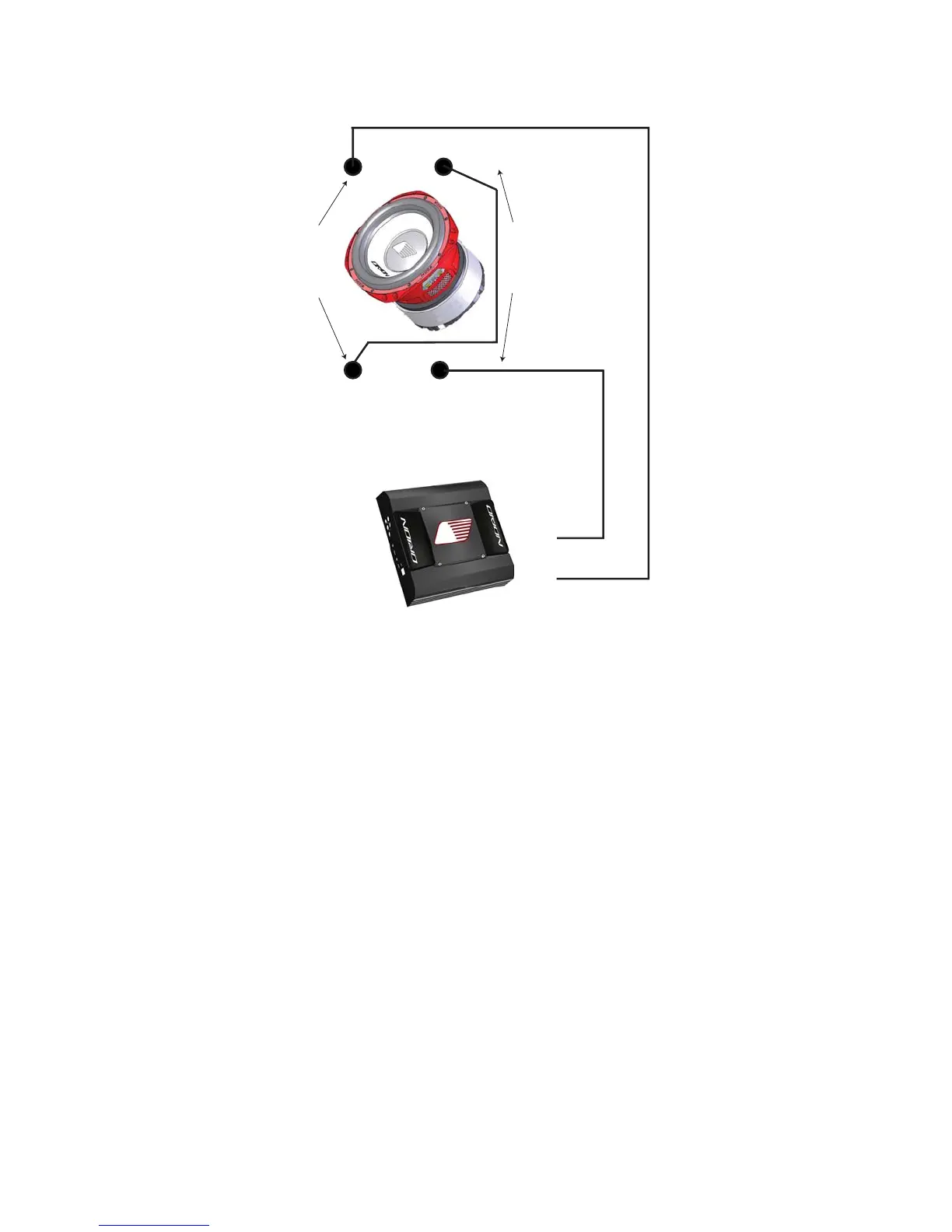

Series—One Speaker (dual 2 ohm voice coils)
One dual 2 ohm voice coil woofer with voice coils in connected in series results in a 4
ohm load to the amplifier.
1. Connect the woofer in series by connecting the negative (-) of one terminal to the
positive (+) terminal of the other coil.
2. Wire the positive (+) terminal of the first coil to the positive (+) terminal on the
amplifier. Wire the negative (-) terminal of the second coil to the negative (-) terminal
on the amplifier.
2 ohm 2 ohm
++
--
+
-
