Orion HCCA 10.2 - HCCA 12.2;12.4 Sealed Enclosures

HCCA 12.2 & 12.4 Sealed Enclosure Recommendations
c
b
—Box Parts—

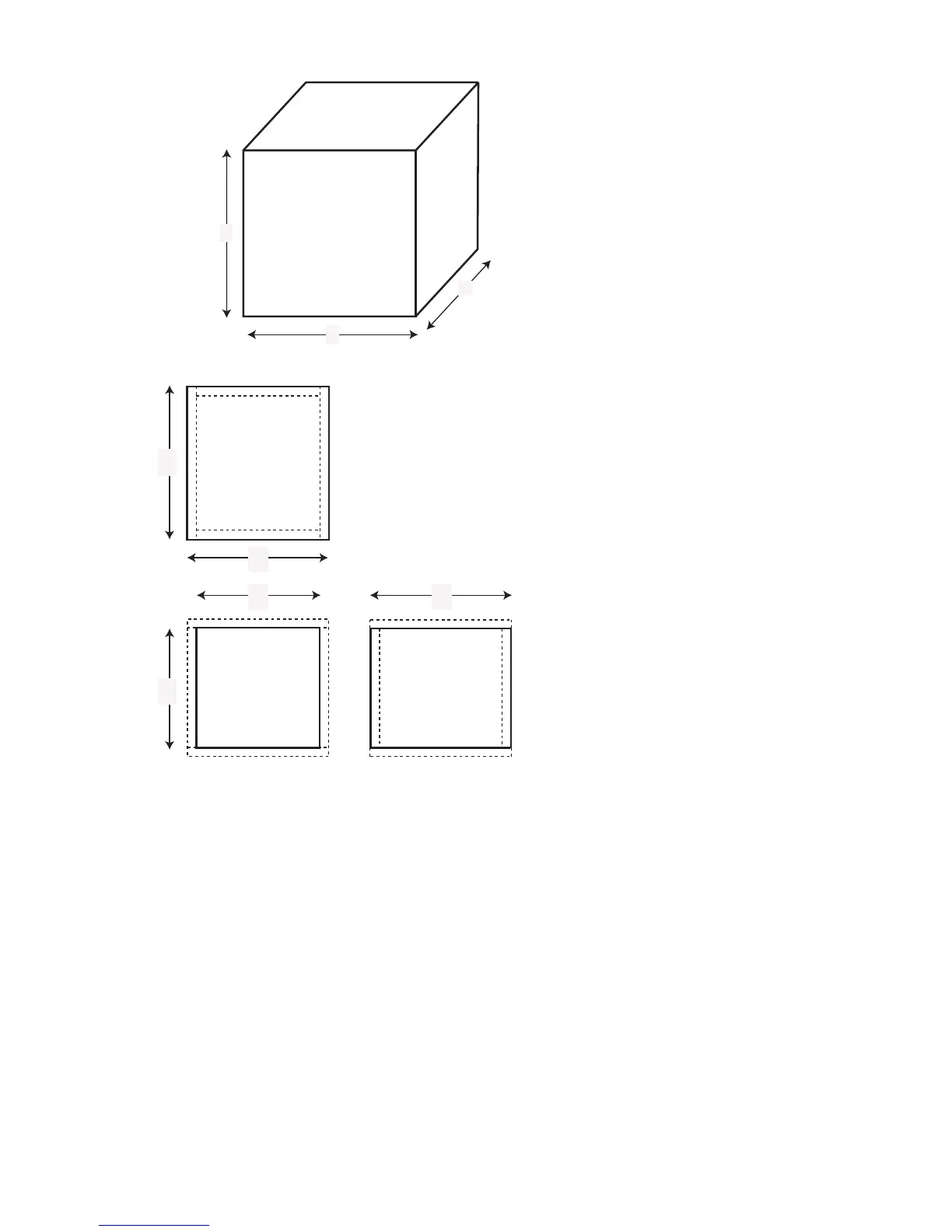

Box Shape – Square Prism
1 Top, 1 Bottom
depth (c) = 16 in.
width (b) = 16 in.
thickness = 1.0 in.
1 Front, 1 Back
height (a) = 14.5 in.
width (d) = 14 in.
thickness = 14 in.
2 Sides
height (a) = 14.5 in.
depth (c) = 16 in.
thickness = 1.0 in.
—Driver Mounting—
Front
To p &
Bottom
a
d
Front &
Back
c
Sides
A
B
C
—External Dimensions
—
A = 16.5 in.
B = 16 in.
C = 16 in.
—Internal Dimensions—
A = 14 in.
B = 14 in.
C = 14 in.
—Wall Thickness—
All Sides = 1.0 in.
