Orion HCCA 10.2 - Dual Amplifier Wiring: Single Speaker (2 Ohm)

15

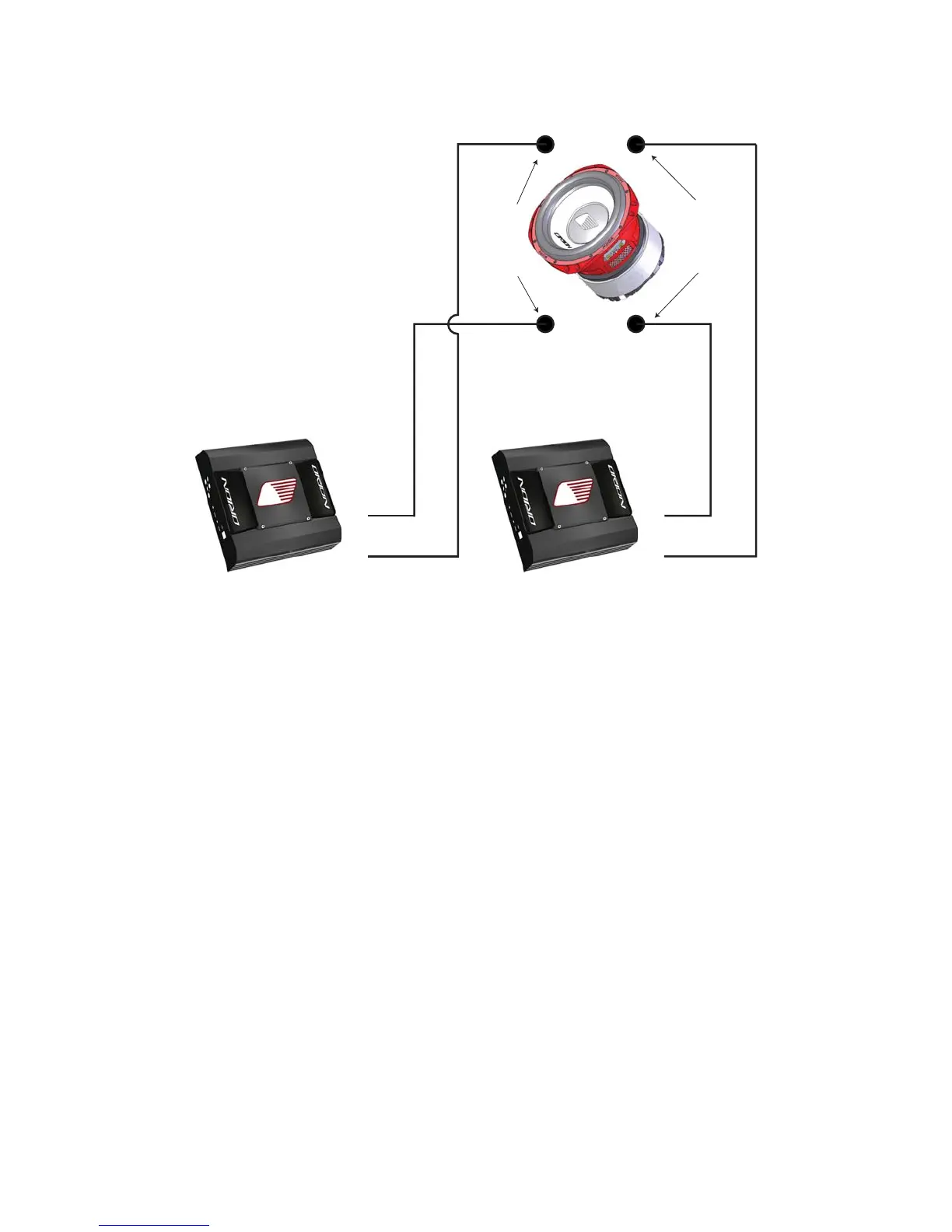

2 Amplifiers—One Speaker (dual 2 ohm voice coils)
One dual 2 ohm voice coil woofer with each voice coil connected to an individual
amplifier, resulting in a 2 ohm load to each amplifier.
1. Connect one of the speaker’s voice coils to the first amplifier by connecting the
positive (+) terminal and the negative (-) terminal from the speaker to the respective
positive (+) terminal and the negative (-) terminal from the first amplifier.
2. Connect the other of the speaker’s voice coils to the second amplifier by connecting
the positive (+) terminal and negative (-) terminal from the speaker to the respective
positive (+) terminal and the negative (-) terminal from second amplifier.
2 ohm
2 ohm
++
--
+
-
+
-
