Orion HCCA 10.2 - HCCA 12.2;12.4 Vented Enclosures

HCCA 12.2 & 12.4 Vented Enclosure Recommendations

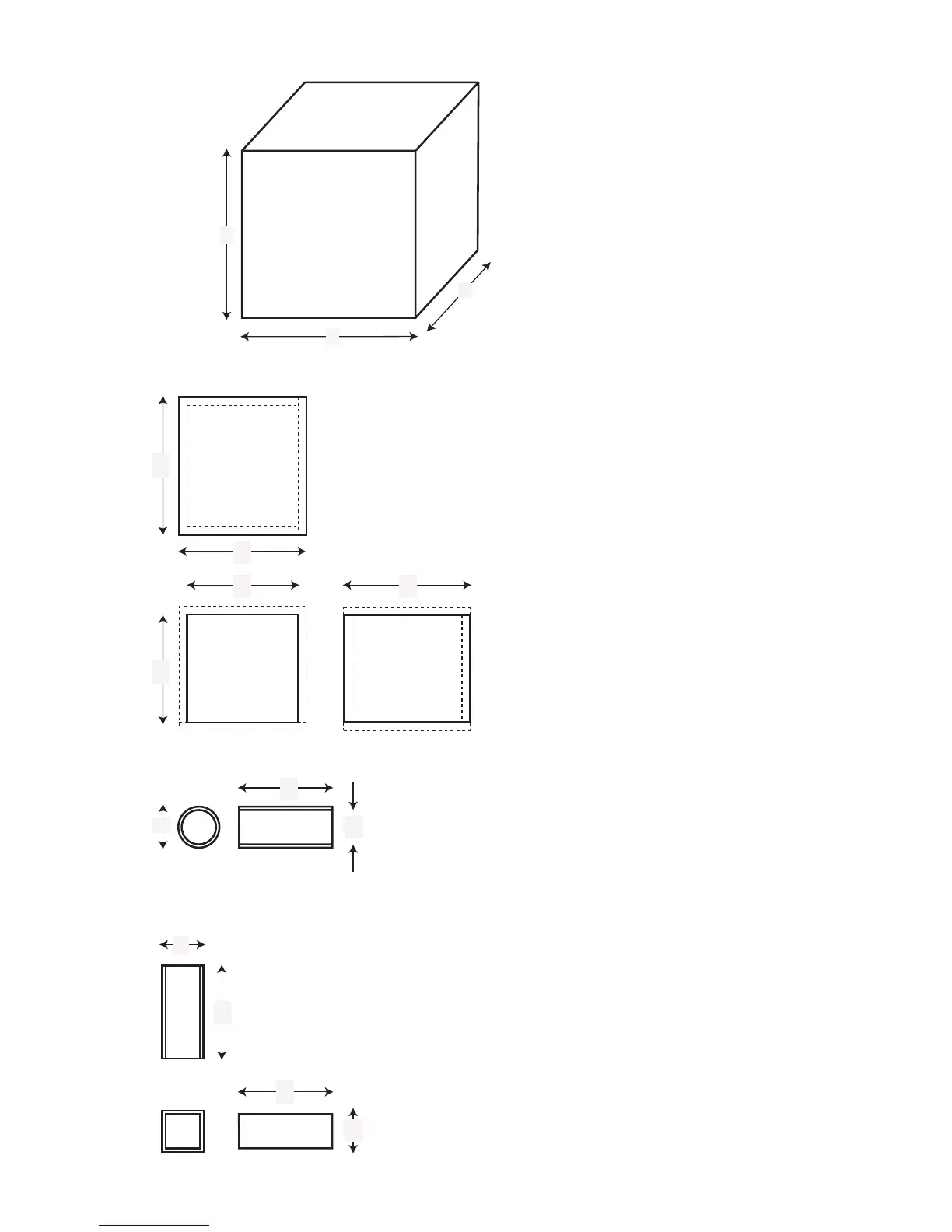

—Box Parts—
Box Shape – Square Prism
1 Top, 1 Bottom
depth (c) = 20 in.
width (b) = 15.5 in.
thickness = 1.0 in.
1 Front, 1 Back
height (a) = 14 in.
width (d) = 13.5 in.
thickness = 1.0 in.
2 Sides
height (a) = 14 in.
depth (c) = 20 in.
thickness = 1.0 in.
—Driver Mounting—
Front
—Vent Part—Round
outside diameter (e) = 4.25 in.
inside diameter (g) = 4 in.
length (h) = 15 in.
—Vent Part—Square
1 Top, 1 Bottom
width (e) = 3.795 in.
length (h) = 15 in.
thickness = 0.125 in.
2 Sides
height (g) = 3.545 in.
length (h) = 15 in.
thickness = 0.125 in.
c
b
Top &
Bottom
a
e
d
Front &
Back
c
Sides
h
h
VENT Round
- OR -
VENT Square
e
h
g
g
A
B
C
—External Dimensions
—
A = 16 in.
B = 15.5 in.
C = 20 in.
—Internal Dimensions—
A = 14 in.
B = 13.5 in.
C = 18 in.
—Wall Thickness—
All Sides = 1.0 in.
