7

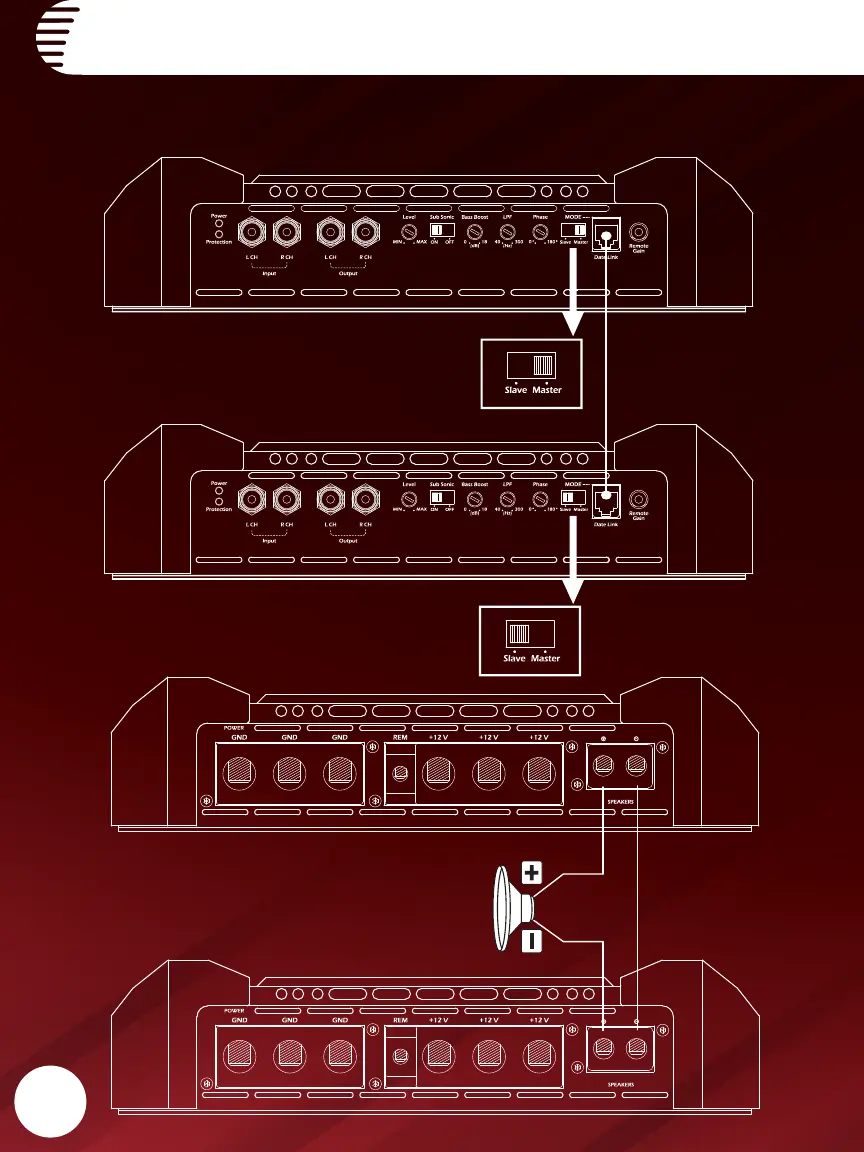

DIAGRAM
Bridged Switch: Master Position
Bridged Switch: Slave Position
Bridging two mono-block Class-D amplifiers can be done
only between two amplifiers of the same model number.
