9 INSTALLATION
Before choosing your preferable location, check the Wi-Fi strength/coverage is adequate
for camera function.

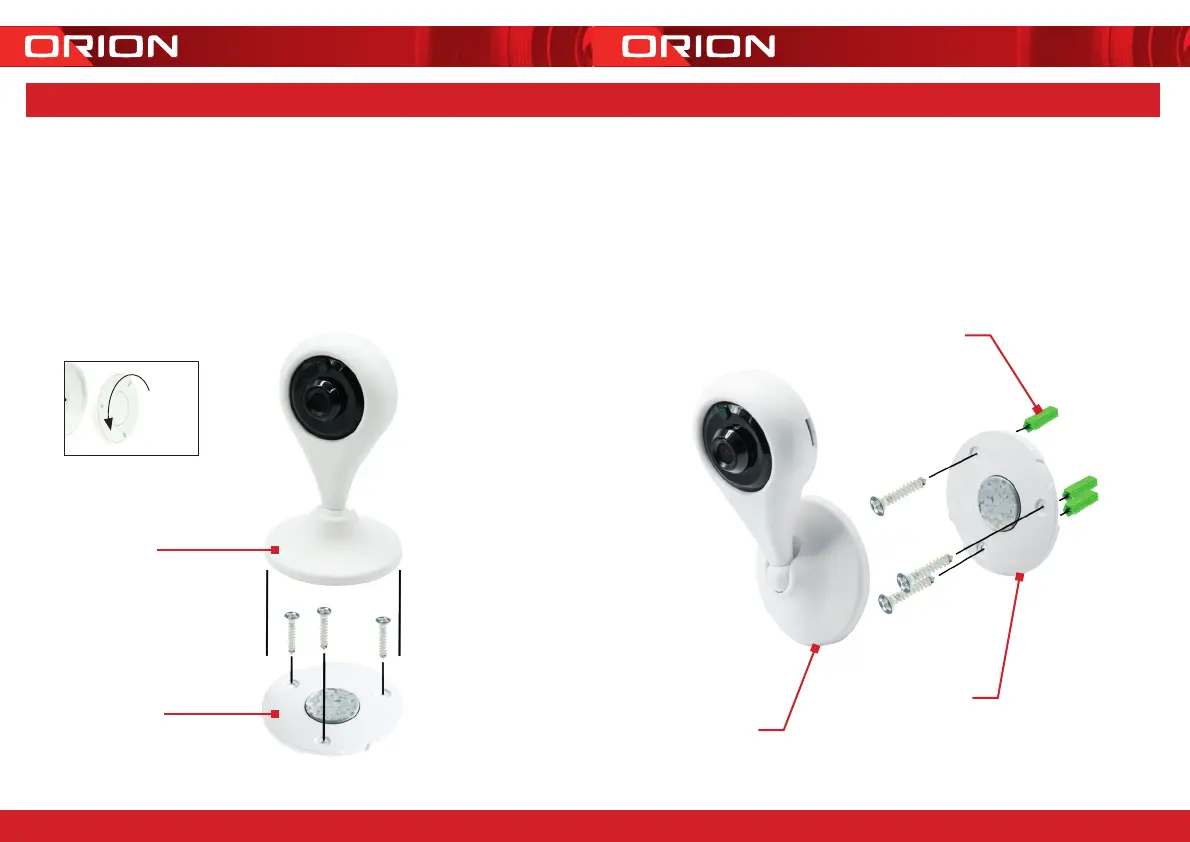

TABLE OR SHELF MOUNT
1. Twist off the mounting base from the bottom of the stand.
2. Use the mounting base as a template, mark the screw positions on the table/shelf.
Drill holes into the surface.
3. Install the mounting base using the mounting screws.
4. Attach the camera onto the mounting bracket and rotate clockwise to secure.
Mounting Base
Camera Stand
WALL MOUNT
1. Take off the mounting base from the bottom of the stand.
2. Flip the stand to the rear as shown.
3. Hold the mounting base as a template to mark the screw positions on the wall.
Drill holes into the wall and push wall plugs into the holes.
4. Install the mounting base using the mounting screws.
5. Attach the camera onto the mounting base and rotate clockwise to secure.
Note: For ceiling mount, ensure navigate settings > basic function settings > ip
screen to obtain correct orientation.
Mounting Base
Wall Plugs
Camera Stand
