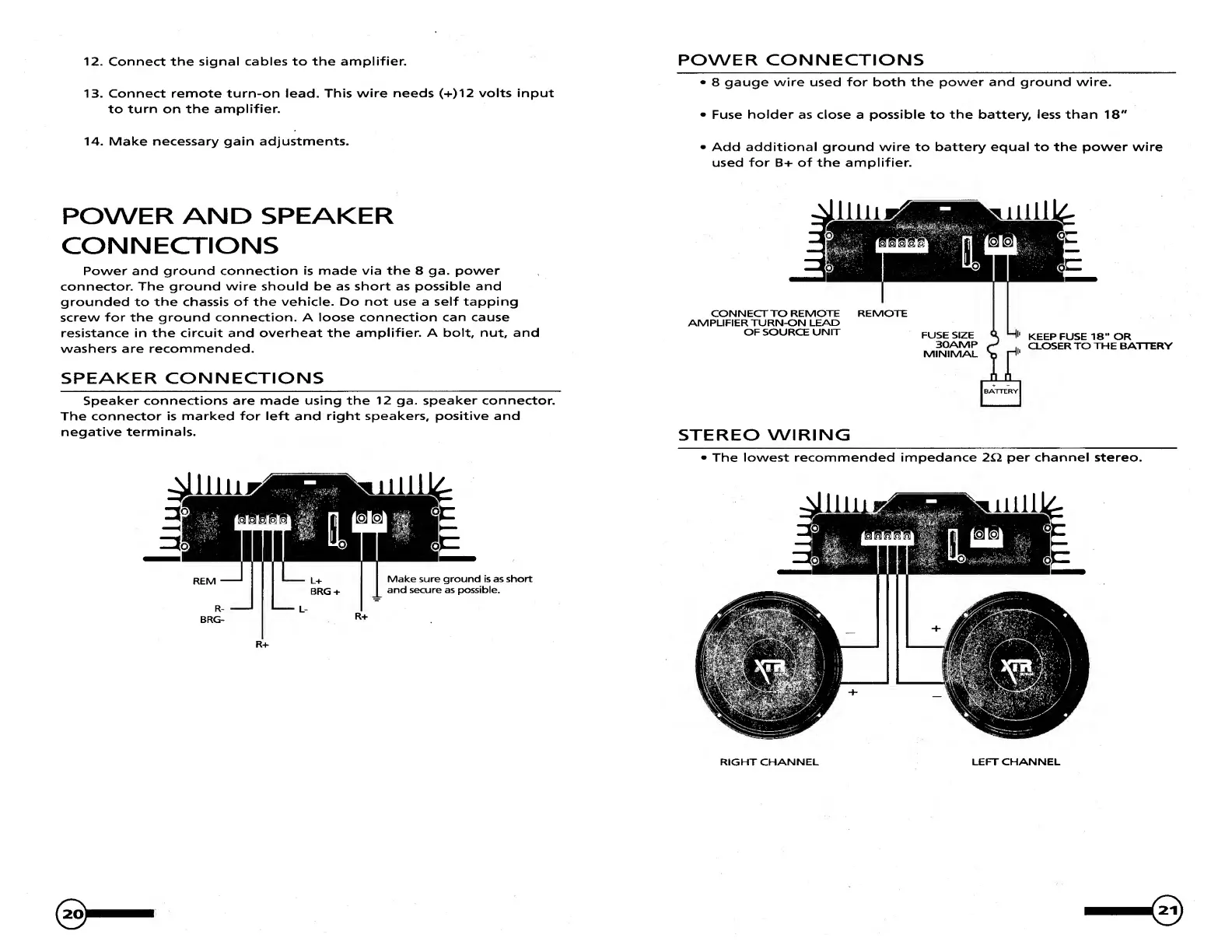

12.
Connect
the
signal
cables
to
the
amplifier.
13.
Connect
remote
turn-on
lead.
This
wire
needs
(+)12
volts
input
to
turn
on
the
amplifier.
14.
Make
necessary
gain
adjustments.
POWER
AND
SPEAKER
CONNECTIONS
Power
and
ground
connection
is
made
via
the
8
ga.
power
connector.
The
ground
wire
should
be
as
short
as
possible
and
grounded
to
the
chassis
of
the
vehicle.
Do
not
use
a
self
tapping
screw
for
the
ground
connection.
A
loose
connection
can
cause
resistance
in
the
circuit
and
overheat
the
amplifier.
A
bolt,
nut,
and
washers
are
recommended.
SPEAKER
CONNECTIONS
Speaker
connections
are
made
using
the
12
ga.
speaker
connector.
The
connector
is
marked
for
left
and
right
speakers,
positive
and
negative
terminals.
R+
20
POWER
CONNECTIONS
•
8
gauge
wire
used
for
both
the
power
and
ground
wire.
•
Fuse
holder
as
close
a
possible
to
the
battery,
less
than
18"
•
Add
additional
ground
wire
to
battery
equal
to
the
power
wire
used
for
B+
of
the
amplifier.
STEREO
WIRING
•
The
lowest
recommended
impedance
2Q
per
channel
stereo.
RIGHT
CHANNEL
LEFT
CHANNEL
21
