Orion Xtreme Series User Manual

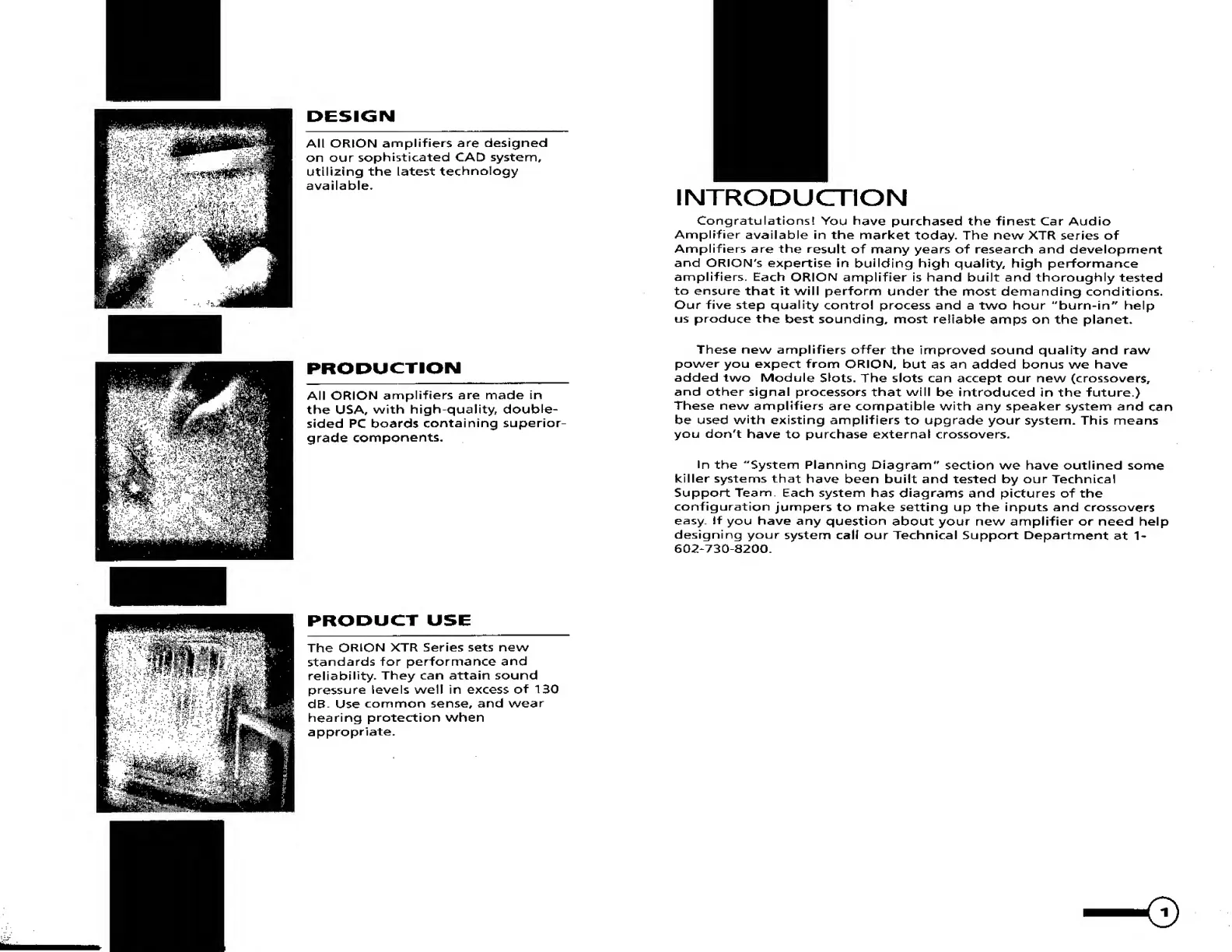

DESIGN
All ORION amplifiers are designed
on our sophisticated CAD system,
utilizing the latest technology
available.
PRODUCTION
All ORION amplifiers are made in
the USA, with high-quality, double¬
sided PC boards containing superior-
grade components.
INTRODUCTION
Congratulations! You have purchased the finest Car Audio
Amplifier available in the market today. The new XTR series of
Amplifiers are the result of many years of research and development
and ORION'S expertise in building high quality, high performance
amplifiers. Each ORION amplifier is hand built and thoroughly tested
to ensure that it will perform under the most demanding conditions.
Our five step quality control process and a two hour "burn-in" help
us produce the best sounding, most reliable amps on the planet.
These new amplifiers offer the improved sound quality and raw
power you expect from ORION, but as an added bonus we have
added two Module Slots. The slots can accept our new (crossovers,
and other signal processors that will be introduced in the future.)
These new amplifiers are compatible with any speaker system and can
be used with existing amplifiers to upgrade your system. This means
you don't have to purchase external crossovers.
In the "System Planning Diagram" section we have outlined some
killer systems that have been built and tested by our Technical
Support Team Each system has diagrams and pictures of the
configuration jumpers to make setting up the inputs and crossovers
easy. If you have any question about your new amplifier or need help
designing your system call our Technical Support Department at 1-
602-730-8200.
PRODUCT USE
The ORION XTR Series sets new
standards for performance and
reliability. They can attain sound
pressure levels well in excess of 130
dB- Use common sense, and wear
hearing protection when
appropriate.
