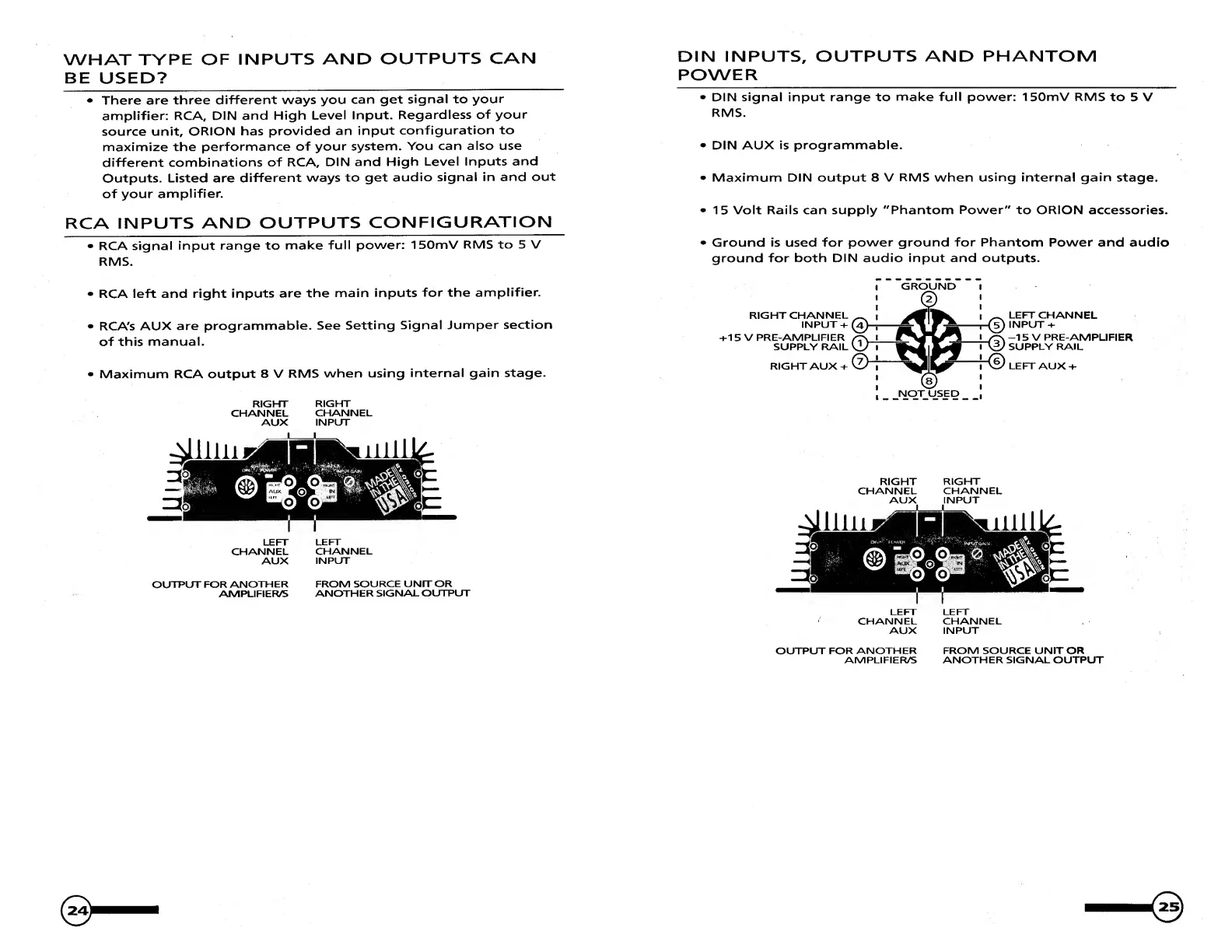

WHAT
TVPE
OF
INPUTS
AND
OUTPUTS
CAN
BE
USED?
__
•
There
are
three
different
ways
you
can
get
signal
to
your
amplifier;
RCA,
DIN
and
High
Level
Input.
Regardless
of
your
source
unit,
ORION
has
provided
an
input
configuration
to
maximize
the
performance
of
your
system.
You
can
also
use
different
combinations
of
RCA,
DIN
and
High
Level
Inputs
and
Outputs.
Listed
are
different
ways
to
get
audio
signal
in
and
out
of
your
amplifier.
RCA
INPUTS
AND
OUTPUTS
CONFIGURATION
•
RCA
signal
input
range
to
make
full
power;
1
50mV
RMS
to
5
V
RMS.
•
RCA
left
and
right
inputs
are
the
main
inputs
for
the
amplifier.
•
RCA's
AUX
are
programmable.
See
Setting
Signal
Jumper
section
of
this
manual.
•
Maximum
RCA
output
8
V
RMS
when
using
internal
gain
stage.
RIGhrr
RIGHT
CHANNEL
CHANNEL
AUX
INPUT
LEFT
LEFT
CHANNEL
CHANNEL
AUX
INPUT
OUTPUT
FOR
ANOTHER
AMPLIFIER/5
FROM
SOURCE
UNIT
OR
ANOTHER
SIGNAL
OUTPUT
DIN
INPUTS,
OUTPUTS
AND
PHANTOM
POWER
•
DIN
signal
input
range
to
make
full
power:
ISOmV
RMS
to
5
V
RMS,
•
DIN
AUX
is
programmable.
•
Maximum
DIN
output
8
V
RMS
when
using
internal
gain
stage.
•
15
Volt
Rails
can
supply
"Phantom
Power"
to
ORION
accessories.
•
Ground
is
used
for
power
ground
for
Phantom
Power
and
audio
ground
for
both
DIN
audio
input
and
outputs.
RIGHT
RIGHT
CHANNEL
CHANNEL
AUX
INPUT
LEFT
LEFT
CHANNEL
CHANNEL
AUX
INPUT
OUTPUT
FOR
ANOTHER
AMPLlFIEFl/5
FROM
SOURCE
UNITOR
ANOTHER
SIGNAL
OUTPUT
