IM0973570 A 05
6
Installation manual

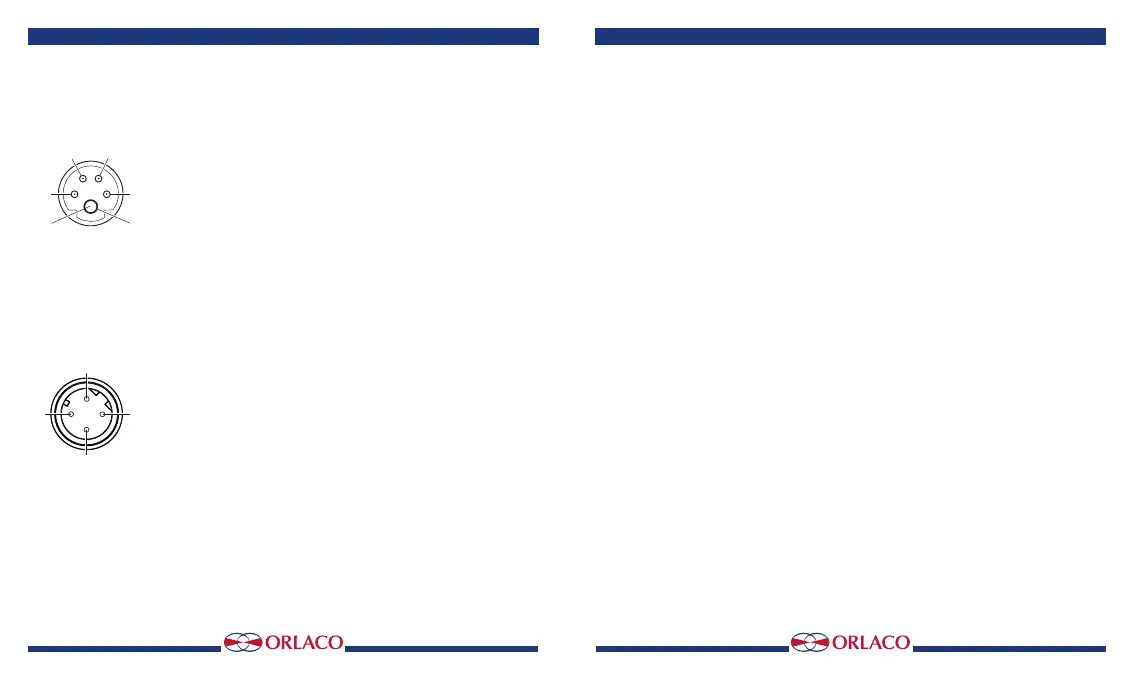

2. Pin connection
Camera HMOS
Front side of Molded M16 4p + Coax connector:
4
5
1
6
2
3
1 = Black = 0V
2 = Red = Power
3 = Yellow = Aux 1
4 = Grey = Aux 2
5 = Coax core = Video signal
6 = Coax screen = Video GND
Overall shielding connected to connector housing.
1
4
3
2
Camera EMOS Ethernet Front side of Molded M12-D 4p connector:
Connector
1 = Orange/white = +Tx
2 = Green/white = +Rx
3 = Orange = -Tx
4 = Green = -Rx
Overall shielding connected to connector housing.
Open wires
1 = Red = Power
2 = White = 0V
15
Image processing: Color and gamma correction, 3D noise correction, edge
enhancement, digital WDR, advanced contrast enhancement, auto white-balance,
auto exposure control, mirroring, flipping, photometric and geometric lens
distortion correction.
Electrical
Power input: 12/24V/DC. Below 7V: camera is non-functional. Above 33V the
overvoltage protection is activated. This overvoltage protection is deactivated
below 30V. Powercircuit is protected up to 80V/DC. Outputs are Short Circuit
Protected.
In all these above mentioned values; a tolerance of +/-10% is applied.
Power consumption: <2W.
Transient protection: Camera may be powered directly from 12V or 24V battery
without additional electrical protection since camera has an integrated circuit
that protects the camera against over- and undervoltage, spikes, ripples and
loaddumps.
Connector/Cable: 4 wire: 1x twisted pair for data and 2 wires for power supply.
Connector 4-pin M12 for data and open wires for power supply.
Min. cable bend radius: 50mm.
Mechanical
Housing: Anodised aluminium, black, UV resistant, light fastness >8, corrosion
proof according IEC 60068-2-52 salt mist, cyclic.
Filling: Camera is potted with automotive potting resin
Ingress protection: IP67 according to IEC 60529; dust tight and protected
against the effects of continuous immersion in water up to 1m under water for
30 minutesIP69k according to DIN 40050-9: camera can withstand a high
pressure cleaning/washing with water: 14-16L/min. 80°C and 100 bars flow.
