Hartley and Sugden
14. Procee d in the same way for the i ntermedia te panel(s).
15. Proceed in the same way for the front pa nel.

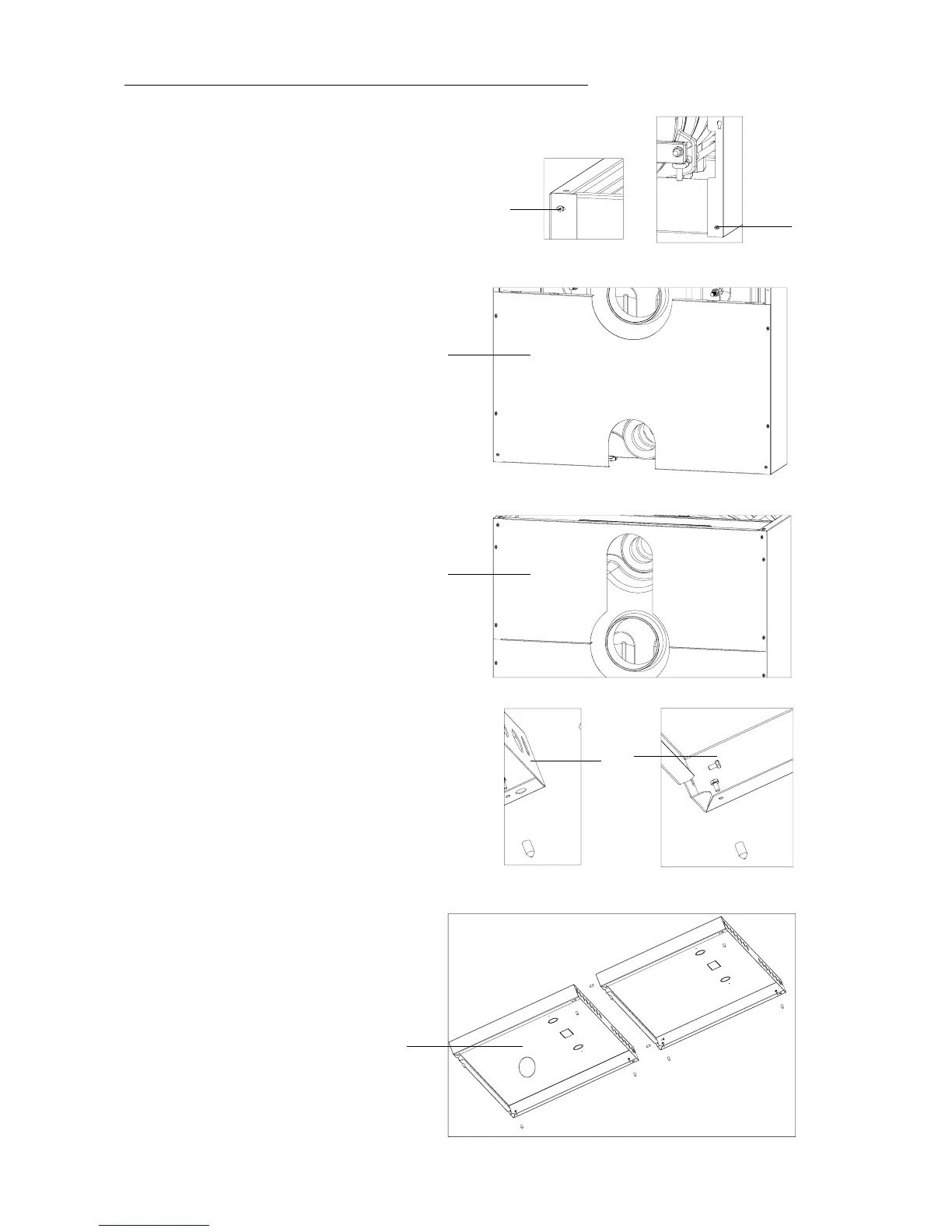

16. Tighten the right front panel ahead on the lower and
upper guide
- 2 Parker screws 4.2X10
16
16
17. Place and screw the rear lower plate.
- 6 Parker screws 4.2X10
17
18. Place and screw the rear upper plate.
- 6 Parker screws 4.2X10
18
19. Assembly of the centering studs on the cov ers.
- from 10 to 22 centering studs Ø8X16 (M4) according
to model. 1 0 centering studs for the Commodore Plus
5 & 6, 16 centering studs for the Commodore Plus 7 ,
8, 9 & 10, 22 centering studs for the Commodore Plus
11, 12, 13 & 1 4.
- from10 to22thrust screwsM4X6 according to model
10 thrust screws for the Commodore Plus 5 & 6,
16 thrust screws for the Commodore Plus 7, 8, 9 & 10,
22 t hrust screws for the Commodor e P lus 11, 12, 13 &
14.
19
20. Place the front cover (A).
20
front door rear door
A
Examplefor n° 122 (5 inter) -132 (6)
