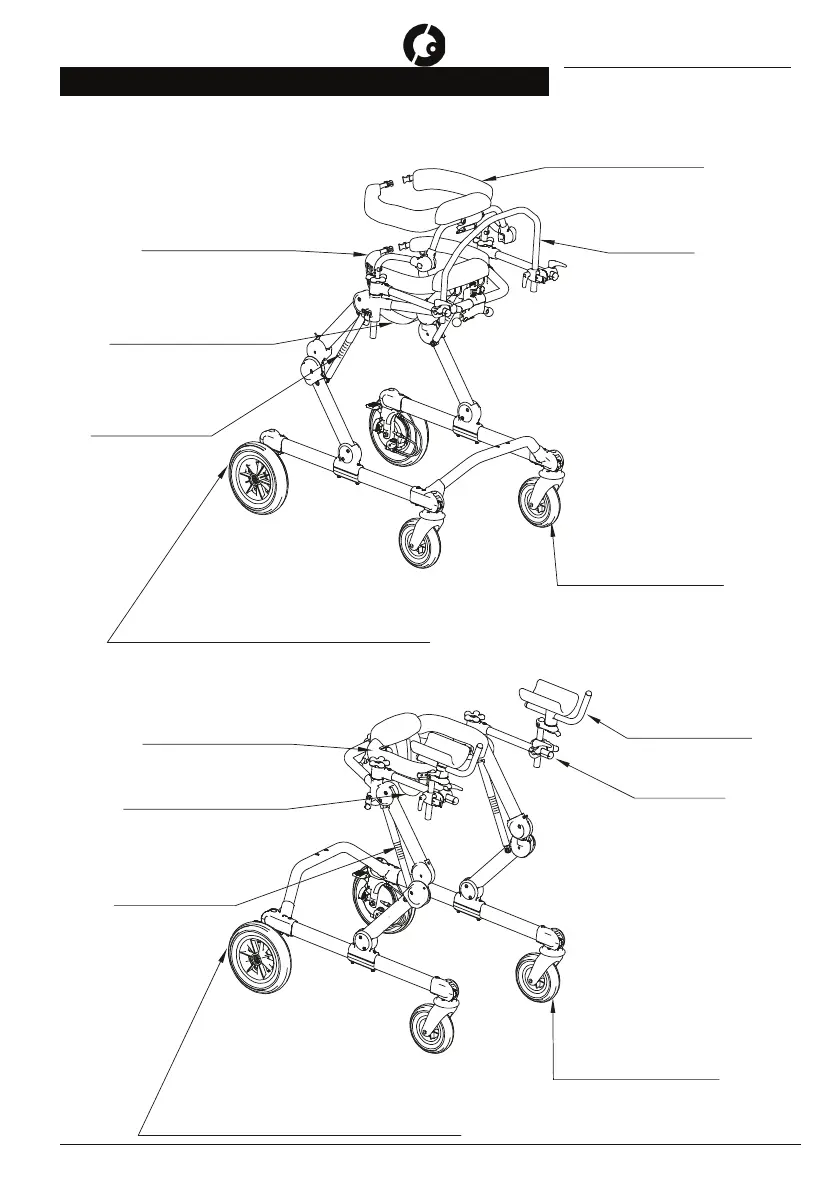

HOW GRILLO IS COMPOSED

FRONT-DRIVE FRAME

pelvic support

harness support

thoracic support

handlebar

anterior wheels with

directional locks

posterior wheels with

- pedal parking brake

- adjustable brake

-anti-reverse wheel stops

arm supports

handrests

pelvic support

harness support

REAR DRIVE FRAME

posterior wheels with

- pedal parking brake

- adjustable brake

-anti-reverse wheel stops

anterior wheels with

directional locks

height adjustment

numbered bars

height adjustment

numbered bars
