TECHNICAL SPECIFICATIONS - GRILLO GAIT TRAINER
§ Available in 3 SIZES [S, M and L] and 2 MODELS (GRILLO Front drive and REAR
DRIVE gait trainer).
§ ALUMINIUM FRAME, foldable for easy transportation and with PATENTED
HEIGHT-ADJUSTMENT SYSTEM.
§ PELVIC SUPPORT and THORACIC SUPPORT, padded, independently adjustable
in height, width and circumference; allow an easy access thanks to the back
opening. They hold the user just like two hands and this gives him/her a sense of
security and stability allowing the user to concentrate only on walking without any
fear.
§ GRADUATED BARS as a reference on height adjustments.
§ PELVIC HARNESS, ergonomic, comfortable, adjustable and easily removable for
washing. It supports the users in case of necessity without generating painful
pressures.
§ HANDLEBAR removable and adjustable in height, it is used as a reference and as
an armrest.
§ Adjustable HANDLES.
§ ARM SUPPORTS, adjustable in height, tilting, rotation and depth.
§ LUMBAR SUPPORT.
§ Manually FOLDABLE SEAT. It gives a support in case of need.
§ PROXIMAL ABDUCTOR adjustable in height and foldable.
§ Exclusive ORMESA DESIGN WHEELS, light and puncture-proof: 2 front swiveling,
Ø15 (size “S”) and cm 17,5 (size “M” and “L”) and 2 rear fixed, Ø cm 20 [size “S”]
and Ø cm 25 [size “M” and size “L”].
§ DIRECTIONAL LOCKS on front wheels.
§ ADJUSTABLE BRAKES.
§ ANTIREVERSE DEVICE.
§ PEDAL PARKING BRAKE
§ SEMI-ELASTIC BUFFERS on front wheels to protect against bumps.
§ LEG DIVIDER avoids adduction and helps to follow the right gait pattern.
§ PUSH HANDLE FOR THE ASSISTANT
§ WEIGHT BARS. They make the aid heavier according to the size: Grillo S + 2,6 kg.
(Lbs. 5.7) x2, Grillo M and L+ 3,4 kg. (Lbs. 7.5) x 2
§ PAIR OF REAR WHEELS NARROW BASE [for size M and L]
USER HEIGHT (C):
cm 90 -135 GRILLO S
cm 110-165 GRILLO M
cm 160-190 GRILLO L
IMPORTANT:

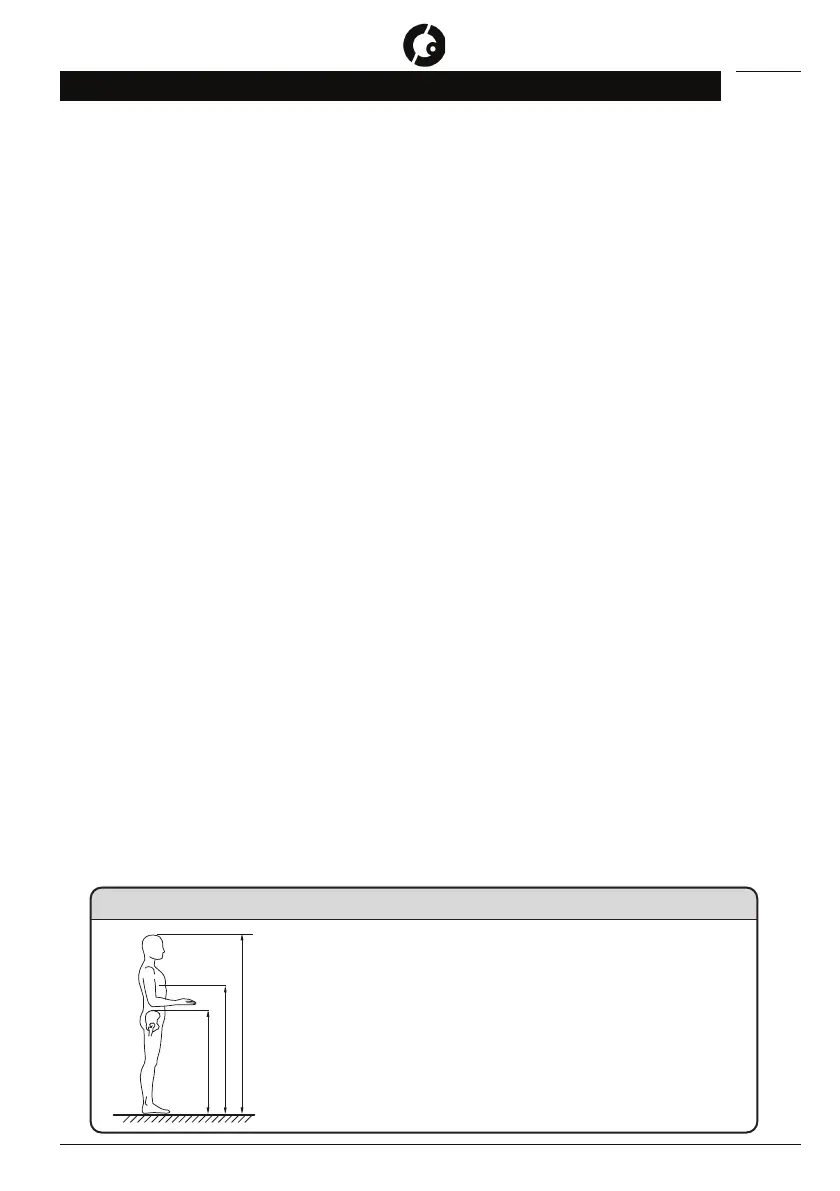

Make sure that measures A and B indicated in the figure do
not exceed the suggested range indicated for the supports
(see pages 13,14 and 15)
User dimensions
A
B
C
