Technical Note • May 4, 2021
Page 7
[4]: Slot 1 & 2 Installation
Option cards installed in Slot 1 or Slot 2 sit on top of and are screwed into pre-installed standoffs and plug in to the
unit through the included ribbon cable.
Instructions for installing an option card into one of the slots above the CPU board (1 or 2):
a.
Safely power down the SecureSync unit and remove the top cover of the main chassis (housing). Save the
screws.
b.
DANGER! SecureSync does not have an ON/OFF switch. You must unplug the machine to
remove power!
Caution: NEVER install an option card from the rear of the unit, ALWAYS from the top,
after removing the chassis cover.
c.
Unscrew and remove the blank option card plate from the back of the unit (or the existing option card).
Save the screws.
d.
Insert option card into the slot, lining up the screw holes on the card with the standoffs..

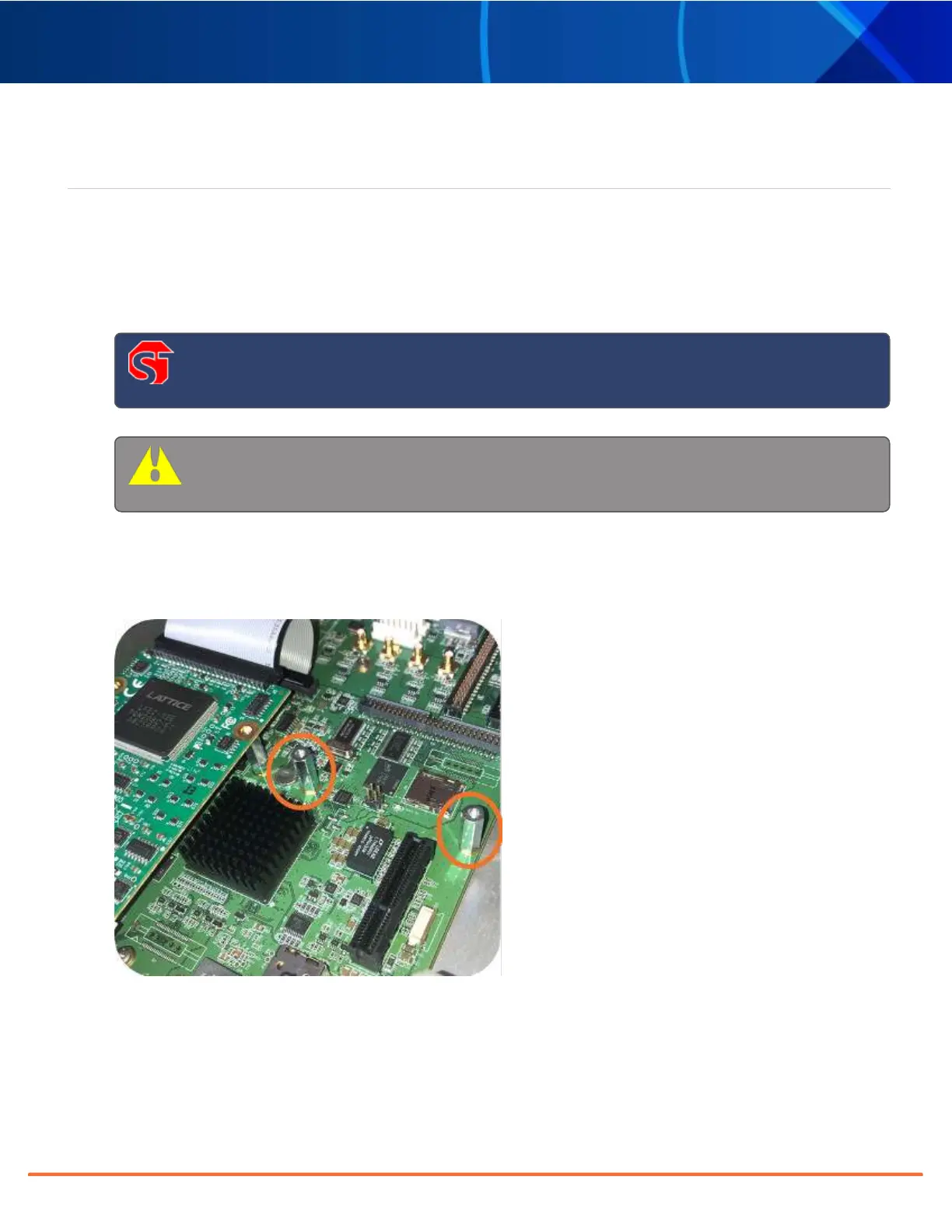

Figure 3: Standoffs location
SecureSync 2400 Option Card Field Installation Guide
