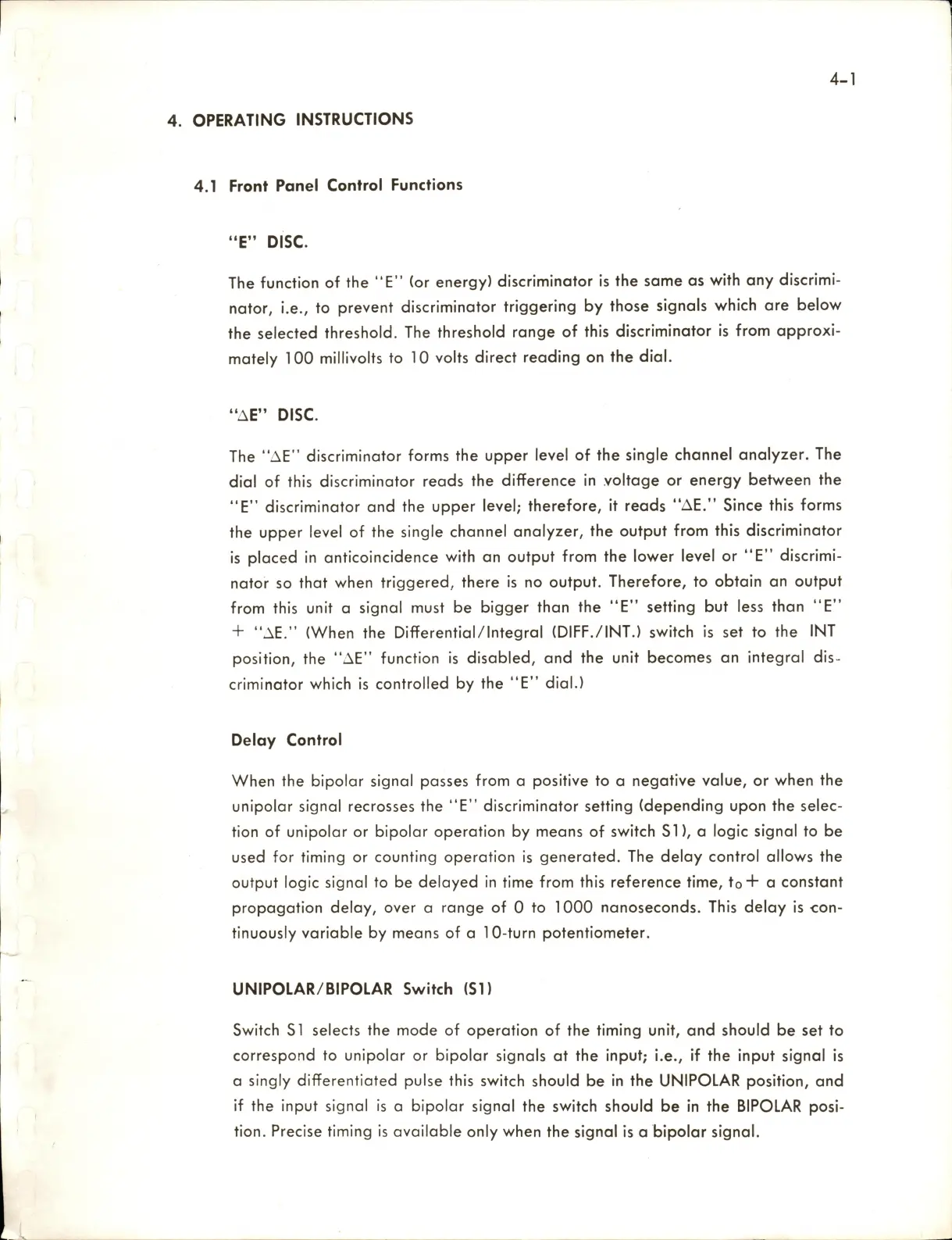

4-1
4.
OPERATING
INSTRUCTIONS
4.1
Front
Panel
Control
Functions
"E"
DISC.
The
function
of
the
"E"
(or
energy)
discriminator
is
the
some
as
with
any
discrimi
nator,
i.e.,
to
prevent
discriminator
triggering
by
those
signals
which
are
below
the
selected
threshold.
The
threshold
range
of
this
discriminator
is
from
approxi
mately
100
millivolts
to
10
volts
direct
reading
on
the
dial.
"AE"
DISC.
The
"AE"
discriminator
forms
the
upper
level
of
the
single
channel
analyzer.
The
dial
of
this
discriminator
reads
the
difference
in
voltage
or
energy
between
the
"E"
discriminator
and
the
upper
level;
therefore,
it
reads
"AE."
Since
this
forms
the
upper
level
of
the
single
channel
analyzer,
the
output
from
this
discriminator
is
placed
in
anticoincidence
with
an
output
from
the
lower
level
or
"E"
discrimi
nator
so
that
when
triggered,
there
is
no
output.
Therefore,
to
obtain
an
output
from
this
unit
a
signal
must
be
bigger
than
the
"E"
setting
but
less
than
"E"
+
"AE."
(When
the
Differential/Integral
(DIFF./INT.)
switch
is
set
to
the
INT
position,
the
"AE"
function
is
disabled,
and
the
unit
becomes
an
integral
dis
criminator
which
is
controlled
by
the
"E"
dial.)
Delay
Control
When
the
bipolar
signal
passes
from
a
positive
to
a
negative
value,
or
when
the
unipolar
signal
recrosses
the
"E"
discriminator
setting
(depending
upon
the
selec
tion
of
unipolar
or
bipolar
operation
by
means
of
switch
SI),
a
logic
signal
to
be
used
for
timing
or
counting
operation
is
generated.
The
delay
control
allows
the
output
logic
signal
to
be
delayed
in
time
from
this
reference
time,
to+
a
constant
propagation
delay,
over
a
range
of
0
to
1000
nanoseconds.
This
delay
is
con
tinuously
variable
by
means
of
a
10-turn
potentiometer.
UNIPOLAR/BIPOLAR
Switch
(SI)
Switch
SI
selects
the
mode
of
operation
of
the
timing
unit,
and
should
be
set
to
correspond
to
unipolar
or
bipolar
signals
at
the
input;
i.e.,
if
the
input
signal
is
a
singly
differentiated
pulse
this
switch
should
be
in
the
UNIPOLAR
position,
and
if
the
input
signal
is
a
bipolar
signal
the
switch
should
be
in
the
BIPOLAR
posi
tion.
Precise
timing
is
available
only
when
the
signal
is
a
bipolar
signal.
