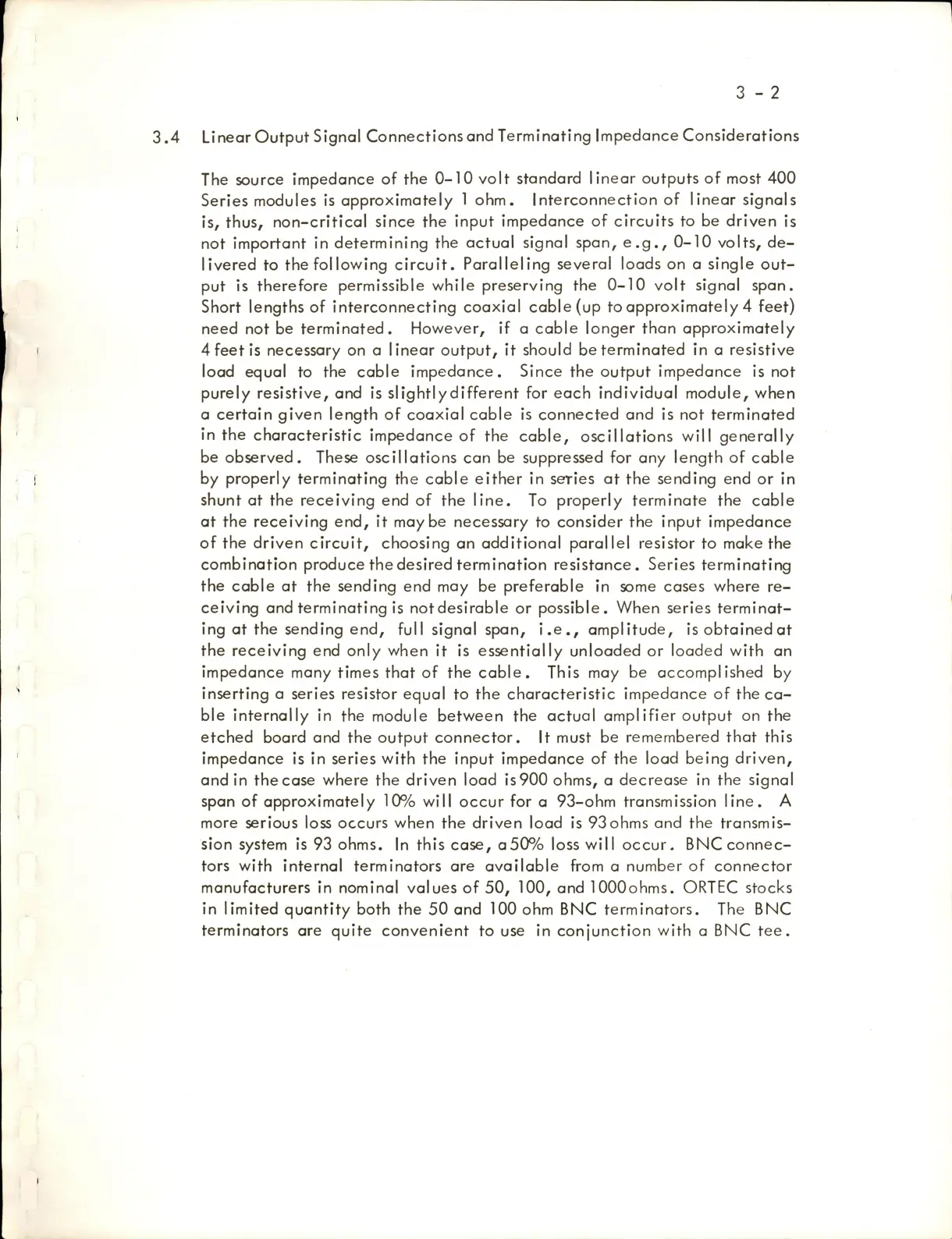

3-2
3.4
Linear
Output
Signal
Connections
and
Terminating
impedance
Considerations
The
source
impedance
of
the
0-10
volt
standard
linear
outputs
of
most
400
Series
modules
is
approximately
1
ohm.
Interconnection
of
linear
signals
is,
thus,
non-critical
since
the
input
impedance
of
circuits
to
be
driven
is
not
important
in
determining
the
actual
signal
span,
e.g.,
0-10
volts,
de
livered
to
the
fol
lowing
circuit.
Paralleling
several
loads
on
a
single
out
put
is
therefore
permissible
while
preserving
the
0-10
volt
signal
span.
Short
lengths
of
interconnecting
coaxial
cable
(up
to
approximately
4
feet)
need
not
be
terminated.
However,
if
a
cable
longer
than
approximately
4
feet
is
necessary
on
a
linear
output,
it
should
be
terminated
in
a
resistive
load
equal
to
the
cable
impedance.
Since
the
output
impedance
is
not
purely
resistive,
and
is
slightly
different
for
each
individual
module,
when
a
certain
given
length
of
coaxial
cable
is
connected
and
is
not
terminated
in
the
characteristic
impedance
of
the
cable,
oscil
lations
wil
l
generally
be
observed.
These
oscillations
can
be
suppressed
for
any
length
of
cable
by
properly
terminating
the
cable
either
in
series
at
the
sending
end
or
in
shunt
at
the
receiving
end
of
the
line.
To
properly
terminate
the
cable
at
the
receiving
end,
it
maybe
necessary
to
consider
the
input
impedance
of
the
driven
circuit,
choosing
on
additional
paral
lel
resistor
to
make
the
combination
produce
the
desired
termination
resistance.
Series
terminating
the
cable
at
the
sending
end
may
be
preferable
in
some
coses
where
re
ceiving
and
terminating
is
notdesirable
or
possible.
When
series
terminat
ing
at
the
sending
end,
ful
l
signal
span,
i.e.,
amplitude,
isobtainedat
the
receiving
end
only
when
it
is
essential
ly
unloaded
or
loaded
with
an
impedance
many
times
that
of
the
cable.
This
may
be
accomplished
by
inserting
a
series
resistor
equal
to
the
characteristic
impedance
of
the
ca
ble
internally
in
the
module
between
the
actual
ampiifier
output
on
the
etched
board
and
the
output
connector.
It
must
be
remembered
that
this
impedance
is
in
series
with
the
input
impedance
of
the
load
being
driven,
and
in
the
case
where
the
driven
load
is
900
ohms,
a
decrease
in
the
signal
span
of
approximately
10%
will
occur
for
a
93-ohm
transmission
line.
A
more
serious
loss
occurs
when
the
driven
load
is
93ohms
and
the
transmis
sion
system
is
93
ohms.
In
this
case,
a50%
loss
will
occur.
BNC
connec
tors
with
internal
terminators
are
available
from
a
number
of
connector
manufacturers
in
nominal
values
of
50,
100,
and
lOOOohms.
ORTEC
stocks
in
limited
quantity
both
the
50
and
100
ohm
BNC
terminators.
The
BNC
terminators
are
quite
convenient
to
use
in
conjunction
with
a
BNC
tee.
