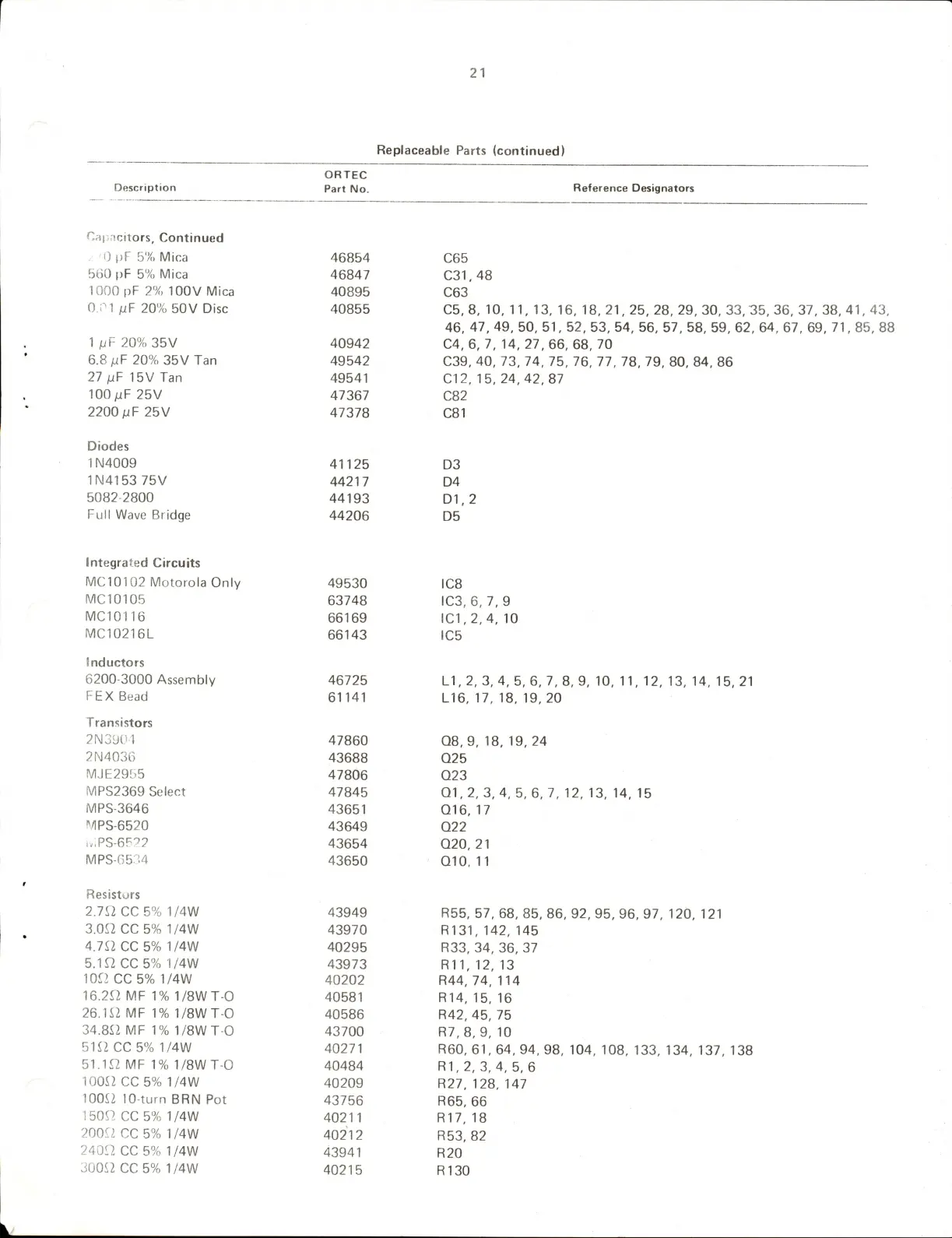

Replaceable Parts (continued)
ORTEC
Description
Part No.
Reference Designators
Caijacitors, Continued
/ 0 pF 5% Mica
46854
C65
560 pF 5% Mica
46847
C31,48
1000 pF 2% 100V Mica
40895
C63
0.01 /iF 20% 50V Disc
40855
C5, 8, 10, 11, 13, 16, 18, 21, 25, 28, 29, 30, 33,35, 36, 37, 38, 41, 43,
46, 47, 49, 50, 51, 52, 53, 54, 56, 57, 58, 59, 62, 64, 67, 69, 71, 85, 88
1 juF 20% 35V
40942 C4, 6, 7, 14, 27, 66, 68, 70
6.8/jF 20% 35 V Tan
49542
C39, 40, 73, 74, 75, 76, 77, 78, 79, 80, 84, 86
27 /uF 15V Tan
49541
C12, 15, 24,42,87
100 mF 25V
47367
C82
2200/iF 25V
47378 C81
Diodes
1N4009
41125
D3
1N4153 75V
44217 D4
5082-2800
44193
D1, 2
Full Wave Bridge
44206
D5
Integrated Circuits
MC10102 Motorola Only
49530
IC8
MC10105
63748
IC3, 6, 7, 9
MC10116
66169
IC1,2,4, 10
MC10216L
66143
IC5
Inductors
6200-3000 Assembly
46725
LI, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 21
FEX Bead
61141
L16, 17, 18, 19, 20
Transistors
2N3901
47860
Q8, 9, 18, 19, 24
2N4036
43688
Q25
MJE2955
47806 Q23
MPS2369 Select
47845 Q1, 2, 3, 4, 5, 6, 7, 12, 13, 14, 15
MPS-3646
43651
Q16, 17
MPS-6520
43649
Q22
,v,PS-6522
43654
Q20, 21
MPS-6534
43650
Q10, 11
Resistors
2.70 CC 5% 1/4W
43949
R55, 57, 68, 85, 86, 92, 95, 96, 97, 120, 121
3.012 CC 5% 1/4W
43970
R131, 142, 145
4.712 CC 5% 1/4W
40295 R33, 34, 36, 37
5.112 CC 5% 1/4W
43973
R11, 12, 13
10O CC 5% 1/4W
40202
R44, 74, 114
16.212 MF 1% 1/8WT-0
40581 R14, 15, 16
26.112 MF 1% 1/8WT-0
40586
R42, 45, 75
34.812 MF 1% 1/8WT-0
43700
R7, 8, 9, 10
5112 CC 5% 1/4W
40271
R60, 61, 64, 94, 98, 104, 108, 133, 134, 137, 138
51.112 MF 1% 1/8WT-0
40484
R1, 2, 3, 4, 5, 6
10012 CC 5% 1/4W
40209
R27, 128, 147
10012 10-turn BRN Pot
43756
R65, 66
15052 CC 5% 1/4W
40211
R17, 18
20012 CC 5% 1/4W
40212
R53, 82
24012 CC 5% 1 /4W
43941
R20
30012 CC 5% 1/4W
40215
R130
