REMOVING/DISMANTLING THE ACTIVATION HANDLE
Remove the cartridge before removing the activation handle (T).

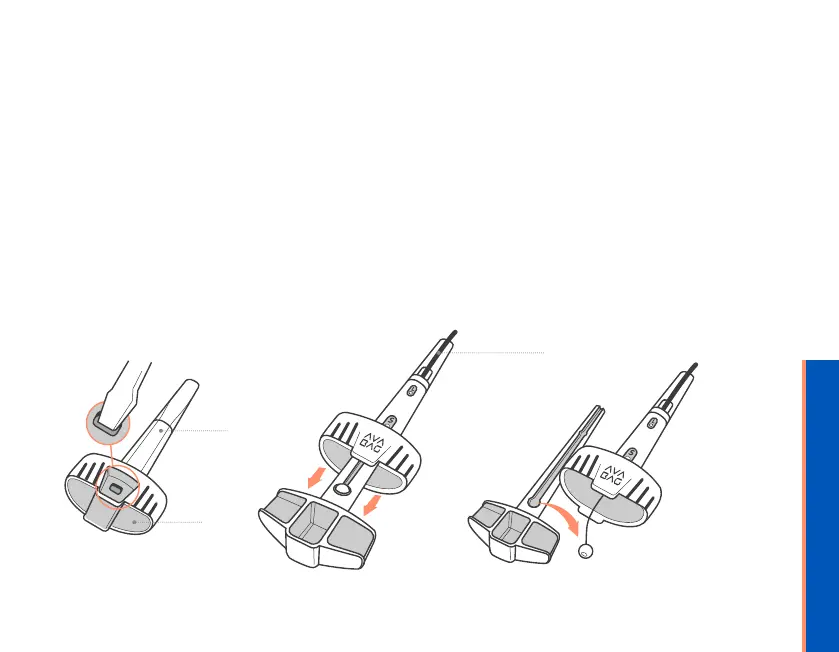

Remove the activation handle (T) from the feed channel (J) using the following steps:
a. Open the lock on the position slider (X) on the back of the activation handle (T) by pressing on the lock with a
suitable object.
b. By pressing the activation cable with silver ball (O) above the activation handle (T) and pushing it downward
toward the position slider (X), you can push the position slider (X) out of the activation handle (T).
c. Now remove the silver ball on the activation cable (O) from the position slider (X).
