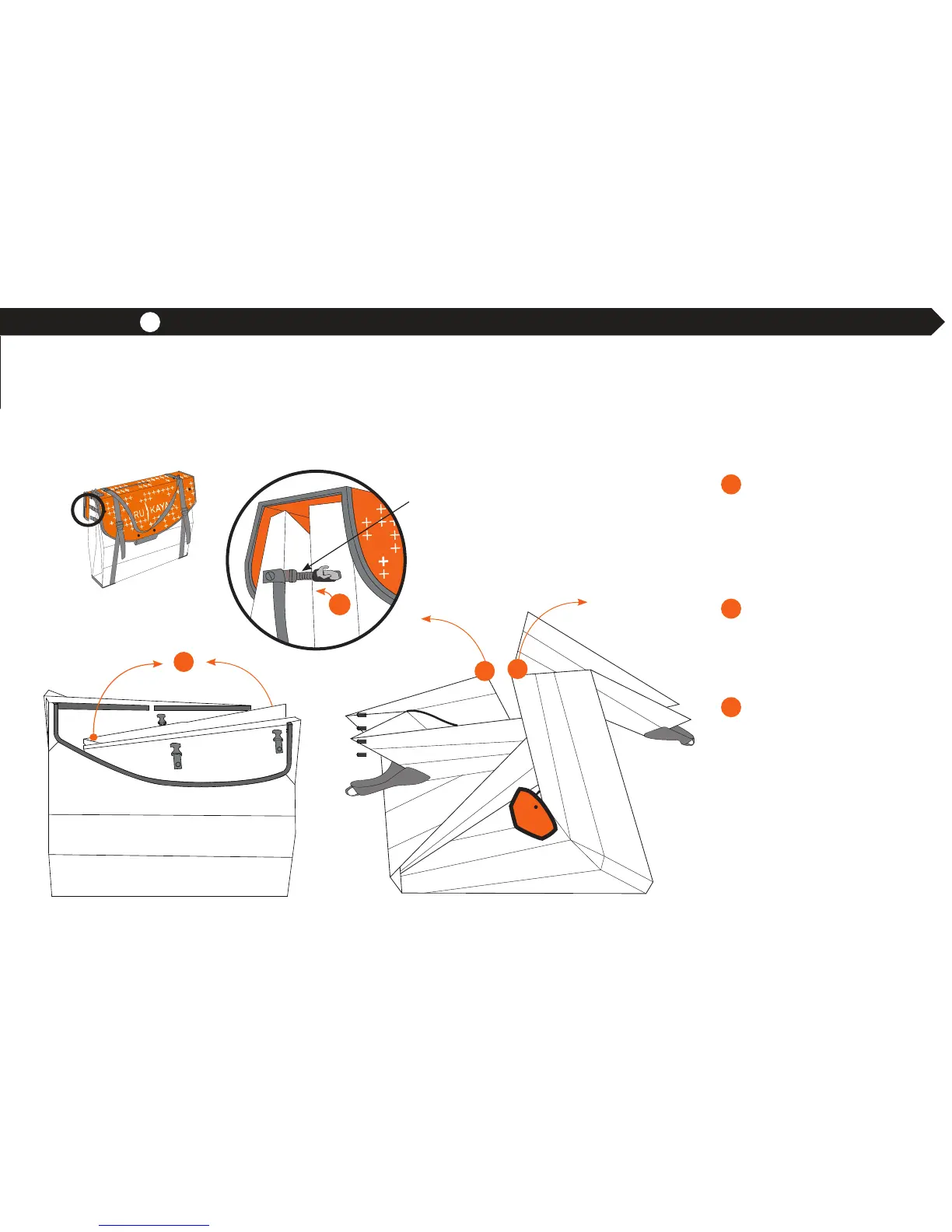

Step 2: Open and unfold the box
Open ratchet buckles
on either side of box, by
squeezing box together
slightly, then lifting up on
Y-shaped lever to release
strap.
Hold the two folds at the
orange stickers. Pull apart
as indicated in the illus-
tration (at left) to open.
Push the ends apart to
extend the box into a long
sheet. Pop the hull flat
with your hands as you
extend it.
A
B
C
B
C
C
NOTE: Removable
orange stickers will
help guide you through
your first assembly.
A
The buckles that close the side of the kayak box become the deck buckles closest to the
cockpit on the kayak. They rotate into two different positions, and have two different straps.
In this step you will open the buckles and release the short strap, then open the box.
short strap
with orange
stitching
3 4 5 6 7 8 9 1032 4 5 6 7 8 91 2
