Orvaldi V3000 - Installation and setup; 2-1. Rear panel view

4
2. Installation and setup
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is
damaged. Please keep the original package in a safe place for future use.
NOTE: There are two different types of online UPS: standard and long-run models. Please
refer to the following model table.
Model Type Model Type
1K 1KL
1.5K 1.5KL
2K 2KL
3K
Standard
3KL
Long-run

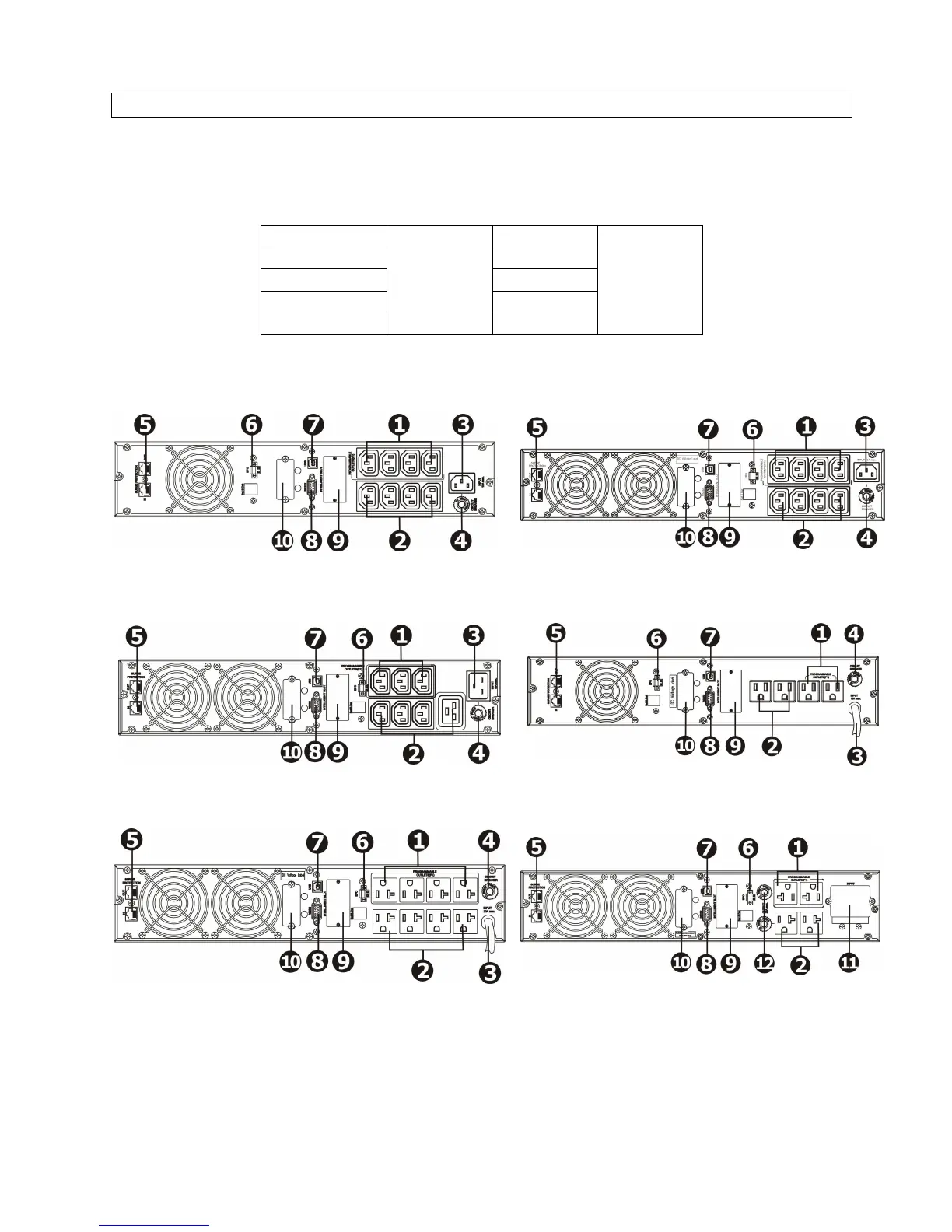

2-1. Rear panel view
1K(L)/1.5K(L) IEC & 2K(L) IEC(4 batteries inside)
2K (L) IEC (6 batteries inside)
3K(L) IEC 1K(L)/1.5K(L) NEMA
2K(L) NEMA 3K(L) NEMA
1. Programmable outlets: connect to non-critical loads.
2. Output receptacles: connect to mission-critical loads.
3. AC input
4. Input circuit breaker
5. Network/Fax/Modem surge protection
