08

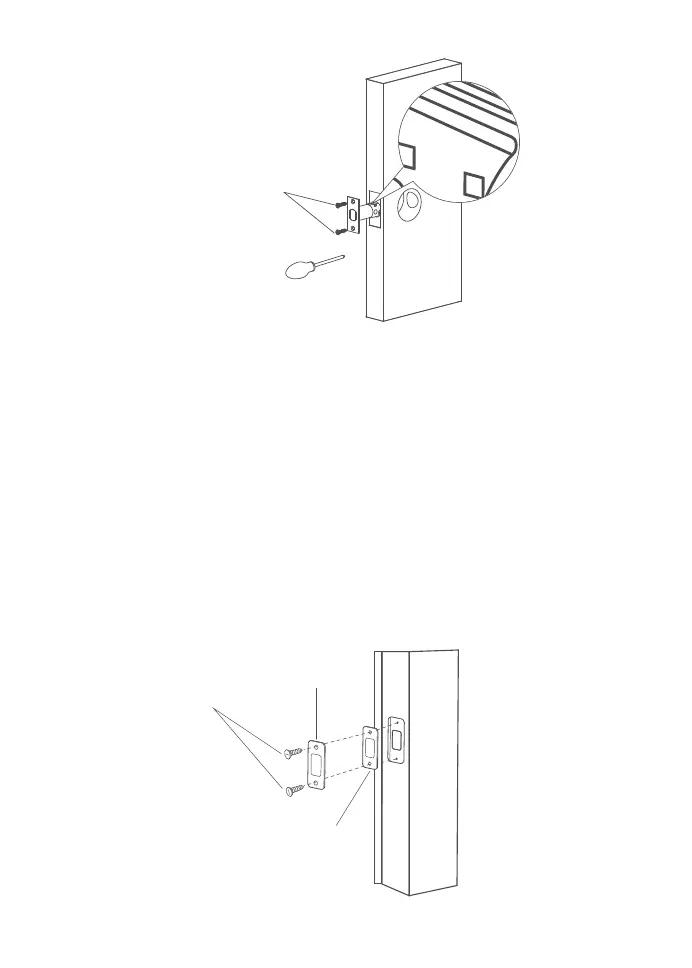

① Align the strike plate with the deadbolt hole center.
② Insert the strike box and the strike plate into the Installation
slot.
③ Secure the strike plate with 2 pcs M4x20 screws, making
sure the plate is placed in the correct direction.
Step 2: Install the strike plate.
If you have an existing plate installed, skip this step.
Strike Plate
Strike Box
Use 2 pcs M4 x20 screws
TOP
2 pcs M4x20
Screws
To Next Page
