A= 2150
B= 2983
C= 2000
D= 1020
E= 1450
F= 570
G= 1108
H= 2278
I= 1065
A= 2150
B= 2783
C= 2000
D= 1020
E= 1450
F= 570
G= 1108
H= 2278
I = 1065
G
E
I
C
B
A
H (with open door)
F
D
-00 (-02, -04)
/+
/+
Min: 1,20 m
Min: 1,50 m
/+
- 2150 mm
- 2325 mm
- 1350 Kg
- 1900 Kg
/+
10
TECHNICAL
SPECIFICATIONS
(Valid for 490 3400-00 unless
otherwise indicated)
GENERAL DATA
Total weight: 1,350 kg
Transport height: 2,150 mm
Dimensions: (-02,-04)
Height: 2,983 mm
(2783)
Width: 1,450 mm
Depth: 1,065 mm
Recommended necessary
space installed: (-02,-04)
Height: 2,983 mm
(2783)
Width: 2,650 mm
Depth (door open): 2,878 mm
Bale size:
Height: 1,000 mm
Width: 1,200 mm
Depth: 800 mm
Weight, cardboard: up to 300 kg
Weight, plastic: up to 450 kg
Loading aperture:
Height: 570 mm
Width: 1,200 mm
Noise level: 73 dB (A)
Primer: Anti-corrosive primer.
Topcoat: Two part paint and
powder coat.
ELECTRICAL DATA
Operating power: 3x400 V, 50 Hz
Electric motor: 3 kW
Operating voltage: 24 AC/DC via
transformer
Electrical
connection: 5 pin CEE
plug, 10 A
Protection class: IP 55
HYDRAULIC DATA:
Flow: 25 L/min
Working pressure:
240 bar (3470 psi)
Relief pressure:
240 bar (3470 psi)
Press force:
24 t (240 kN)
Surface pressure: 2.5 kg / cm
2
Cycle time total: 41 s.
Piston stroke: (-02,-04)
1,000 mm
(800)
Oil volume: 20.8 L
Recommended hydraulic oil:
+5°C to +60°C:
ISO VG 32-68
below 5°C:
Lubrication Engineering
LE 6520 Monolec hydraulic
mulitgrade SAE 5W-20

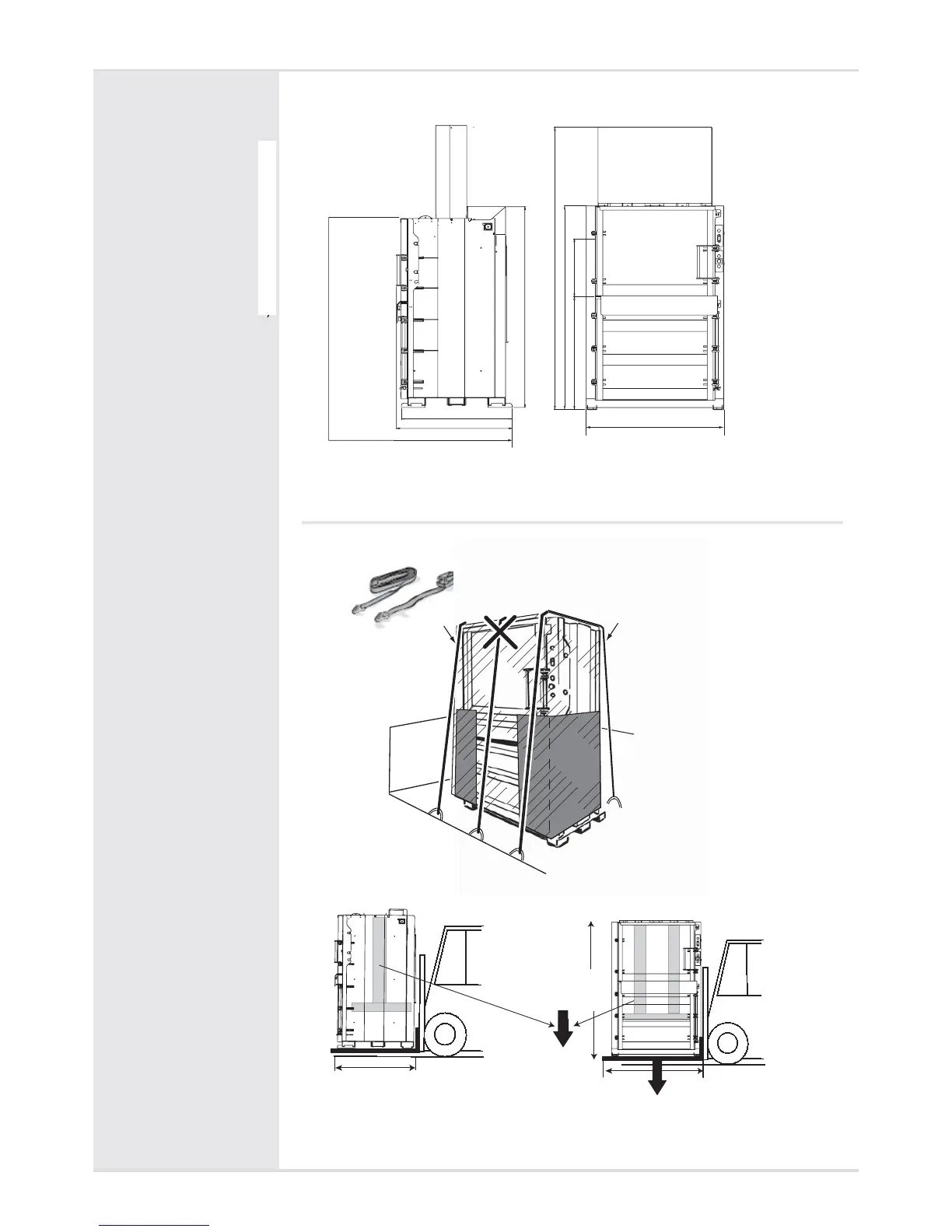

DIMENSIONAL DRAWING
TRANSPORT INSTRUCTIONS
English
2
3
4
4
4
5
6
7
4
