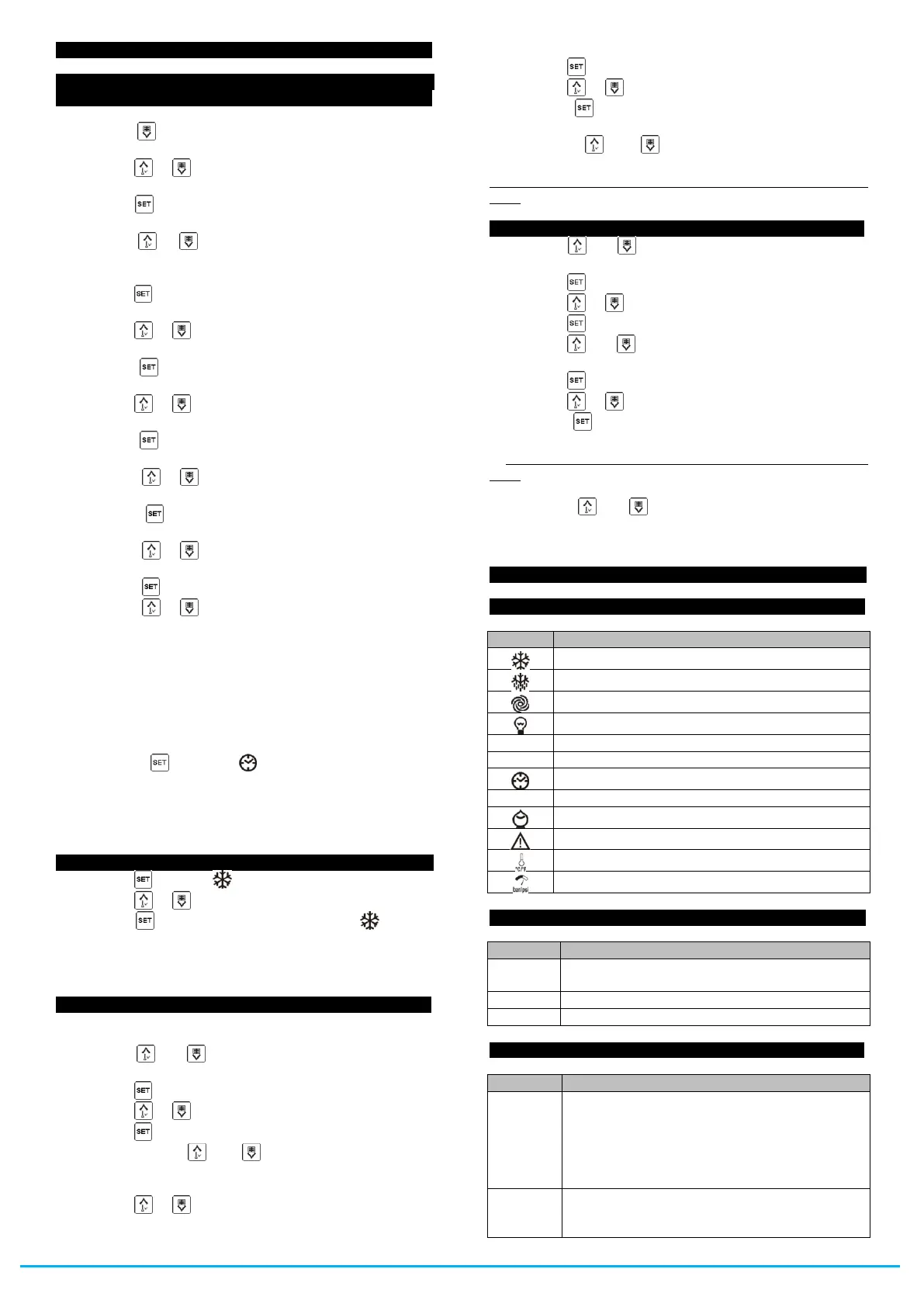

OSAKA – SMART BOX – Simple Manual – v1.1 – Page 3
6 – SETTINGS____________________________________
6.1 Configure the date, hour and day of the week (only
available in SMART BOX SD and SMART BOX PLUS SD))
To enter in the process:
1. Press the key for 1 second: the display will show the
first variable that it’s available to be read.
2. Press the or keys to select “rtc”.
To adjust the year:
3. Press the key: the display will show “y” followed by the
last two digits of the year, and the LED will start flashing.
4. Press the or keys to select the year (only the last
two digits).
To adjust the month:
5. Press the key:
The display will show “n” followed by the month (01...12).
6. Press the or keys to select the month.
To adjust the day:
7. Press the key: The display will show “d” followed by
the day (01...31).
8. Press the or keys to select the day.
To adjust the hour:
9. Press the key: The display will show “h” followed by
the hour (00...23).
10. Press the or keys to select the hour.
To adjust the minutes:
11. Press the key: The display will show “n” followed by
the minutes (00...59).
12. Press the or keys to select the minutes.
To adjust the day of the week:
13. Press the key.
14. Press the or keys to select:
1 “Mon” Monday
2 “tuE” Tuesday
3 “UEd” Wednesday
4 “thu” Thursday
5 “Fri” Friday
6 “SAt” Saturday
7 “Sun” Sunday.
15. Press the key: The LED will turn off, then the
device will exit the process.
To exit the process immediately:
16. Do not touch anything for 60 seconds (all changes will be
saved)
6.2 Configure the regulation Set Point_________ ___
1. Press the key: The LED will start flashing.
2. Press the or keys to enter the desired Set Point.
3. Press the key or wait for 15 seconds: The LED will
turn off, then the device will exit the process.
To exit the process immediately:
5. Wait for 15 seconds (all changes will be saved)
6.3 How to enter in the parameters________________ __
To enter in the process:
1. Make sure that there aren’t any ongoing processes.
2. Press the and keys for 4 seconds: The display will
show “PA”.
3. Press the key.
4. Press the or keys to enter “-19”.
5. Press the key.
6. Again, press the and keys for 4 seconds : The
display will show “SP” (the first parameter of the list).
To move from parameter to parameter:
7. Press the or keys.
To configure a parameter:
8. Press the key in the desired parameter.
9. Press the or keys to select the desired value.
10. Press the key.
To exit the parameters:
11. Press the and keys for 4 seconds or wait 60
seconds (all changes will be saved).
Switch off the power from the device when the process is
over.
6.4 Reset manufacturing parameters (by default)___ _
1. Press the and for 4 seconds : The display will show
“PA”.
2. Press the key.
3. Press the or keys and enter “149”.
4. Press the key.
5. Press the and keys again for 4 seconds: the display
will show “dEF”.
6. Press the key.
7. Press the or keys and enter “1”.
8. Press the key: the display will flash and show “dEF”
for 4 seconds, then the device will exit the process.
9. Switch off the power from the device when the process is
over.
To exit the process immediately:
10. Press the and keys before entering “1” (there will
be no resetting).
7 SIGNALS AND INDICATIONS_____________ ________
7.1 Signals___________________________ _______ ___
7.2 Indications____________ ____________________ _
The keyboard and/or the working Set Point are
locked
The requested operation mode is not available
7.3 Indications regarding the SD card________ __
The SD card can be removed:
- Fixed: there is no writing in progress and the
data logger’s battery is charged
- Flashing: there is no writing in progress but
the data logger’s battery is not charging.
- Fixed: there is writing in progress; the SD
card cannot be removed.
- Flashing: SD card not inserted/unrecognized
