FORZA-4 INSTALL GUIDE
If the speaker is installed outdoor, you will need
to purchase the accessories sold separately.
Order Part # FORZA-4-ACCPK
FORZA-4 INSTALL GUIDE
Set Up & Operation Standard 8 Ohm Application
Amplifier
NOTE:
The FORZA-4 is designed to hang form the ceiling. A safety cable should be used when installing the speakers to avoid personal injury and
damage to the speaker.
1. Set the proper speaker setting for your application ( 8 ohm-0-20W-10W-5W-2.5W )

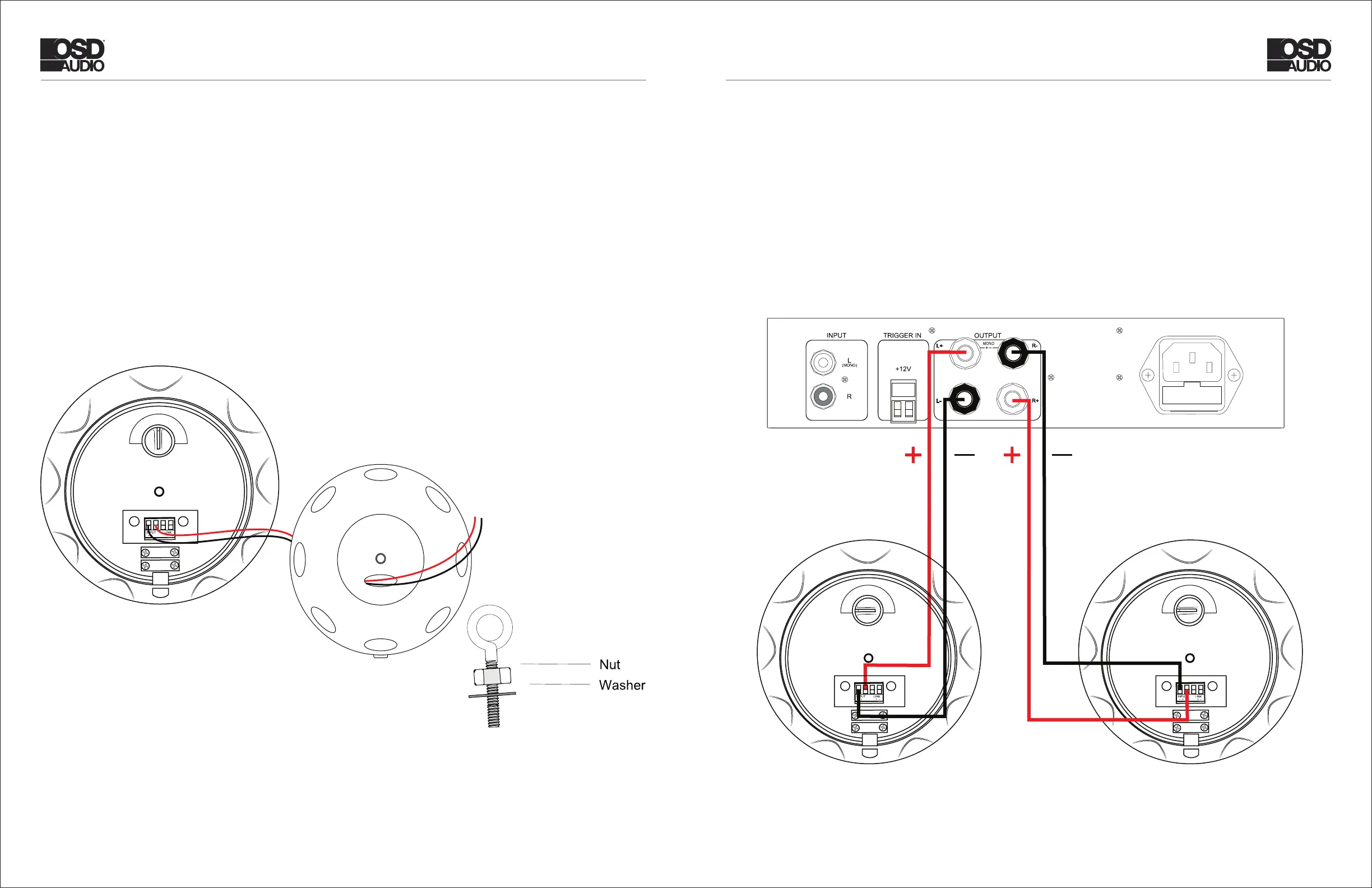

2. Install the top cover and fasten the provided eye hook, nut and washer to the top cover and speaker as illustrated below.
3. At each speaker location, route the speaker cable(s) hanging from the ceiling area through the top cover, and dress the cables to the
wire rope using plastic cable ties. Slide the speaker cables through the supplied back cover. Strip the ends back to 1/8" to 3/16".
4. Connect the wires from the amplifier to the supplied terminal block, Using the IN terminals: red to + and black to -. Please refer to the
following pages for examples of various types of applications.
5. Attach the safety cable to the speaker.
6. If using the bracket to wall or ceiling mount, be sure to use the appropriate hardware to securely attach the speaker.
