AURORA1600 Features
15

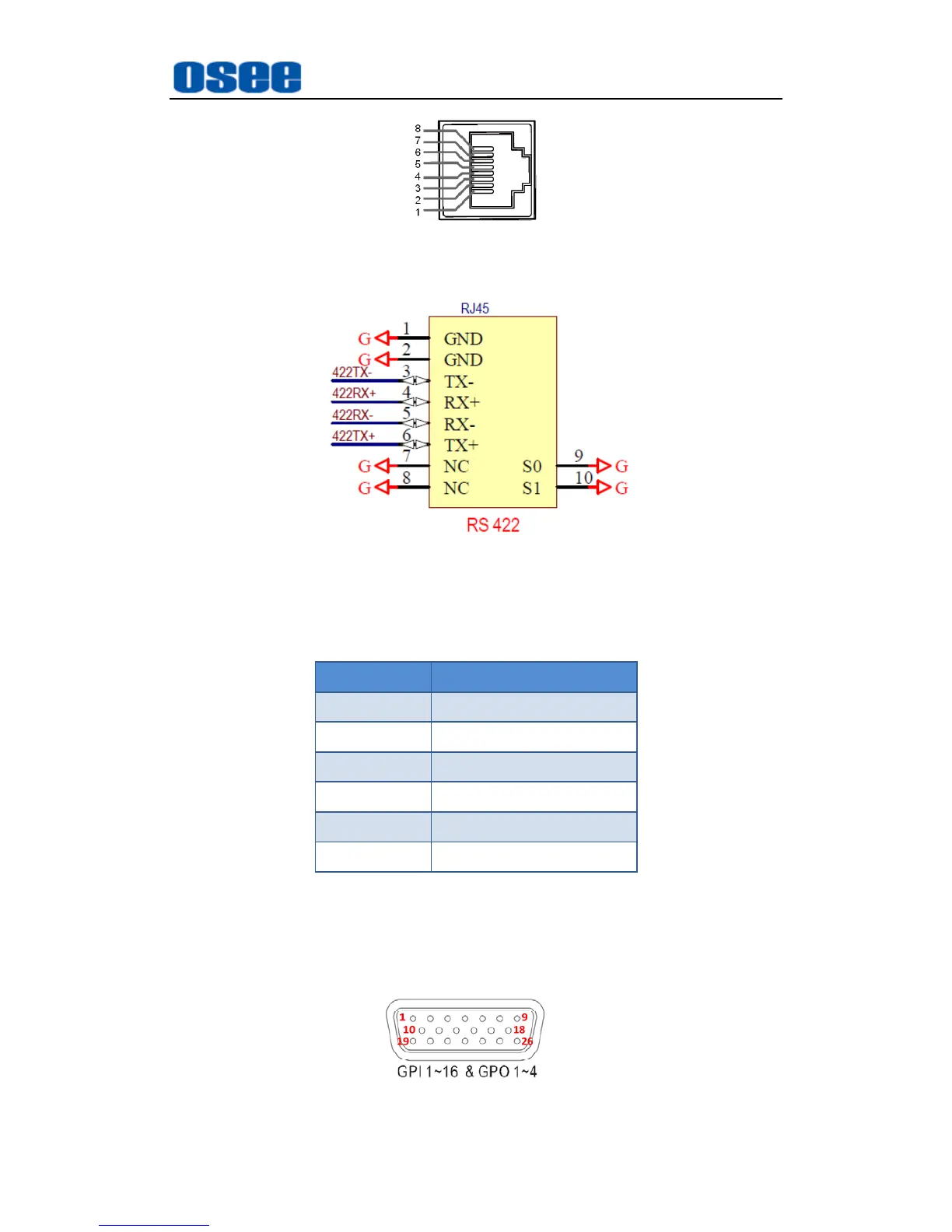

Figure 4.2-5 The Pins Sequence of RS422 Connector
Figure 4.2-6 The Pins Sequence and Functionalities of RS422
Connector
Table 4.2-2 The Relationship of Pins and Values for RS422
Pins Value
1,2 GND
3 Tx-
4 Rx+
5 Rx-
6 Tx+
7,8 GND
8. GPIO(DB26)
It provides one GPIO interface to realize the remote control function, and
you can set a function value to each appointed pin. The relationship of
pins and values for GPIO is as shown in Table 4-3:
Figure 4.2-7 The Pins Sequence of GPIO Connector
