(B)
Clutch cover (C)

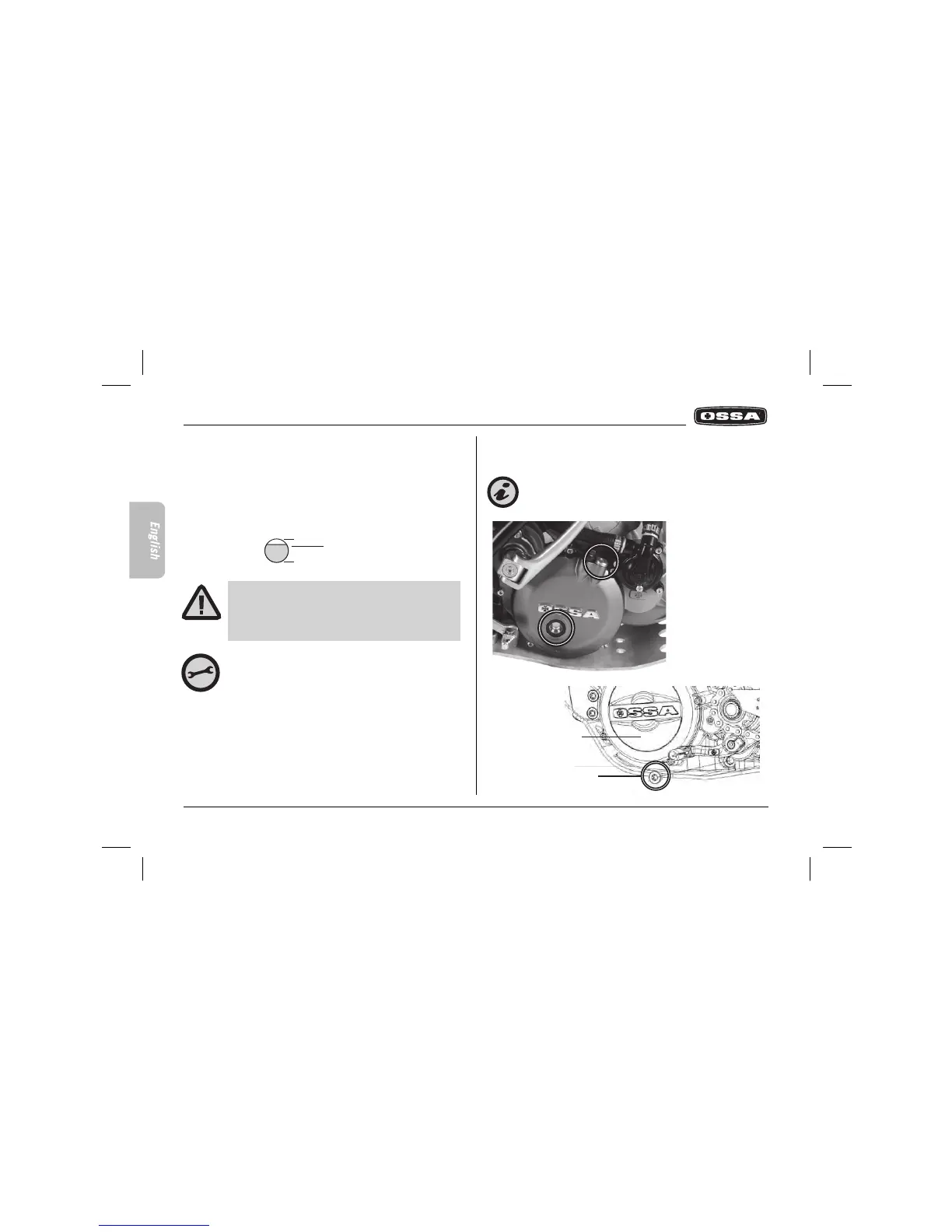

44 User manual
Checking the crankcase oil
IMPORTANT: Clean the plug and change the sealing washer
each time the oil is changed.
The oil level should be checked when the motorcy-
cle is in an upright position and on a flat surface.
The motorcycle should be cold. If it is not cold, wait
some minutes until it goes cold.
The crankcase has a 350cc oil capacity. 2T 100%
synthetic oil should always be used.
MAX.
MIN.
Optimum oil level
To add oil, remove the plug (A) located on the upper
part of the clutch cover. Use a funnel to add oil. NEVER
exceed the maximum level. Put the plug rear in. If the
maximum level is exceeded, oil should be removed. To
drain the crankcase, place a 500cc container beneath
and remove the plug (B) located on the lower central
part of the crankcase. It is necessary to detach the
starter cap for versions that use oil with the ignition
refrigerant.
Filling and draining the crankcase
Crankcase oil is used for lubricating the change pedal and the
clutch. Check the oil level with the indicator located on the lower
part of the clutch cover, which is on the right side of the engine.
The oil level should be lower than the indicated maximum level.
(A)
Indicator
Clutch cover
