18 User manual
1 2 1 2
1 2
3
1 2 3
Multi-function
Adjustment of the multi-function box settings
After confirming each value, the multi-function box will move straight on to the next screen adjustment until the process is complete. If no
button is pressed, the multi-function box will return to the initial screen after 15 seconds.
Activation of the adjustment mode
To activate the adjustment
mode for the multi-function
box settings, push buttons 1,2
and 3 simultaneously for 3
seconds and then release
them.
Select the wheel circumference
Enter the wheel circumferen-
ce by pushing button 1 repea-
tedly. To move to the next
digit, press button 3. Confirm
the selection by pushing
button 2. Note: If you don’t
know the wheel circumferen-
ce, consult the “Measuring
the wheel circumference”
section.
Select the speed unit
To select the speed unit
between km/h and m/h, press
1. Confirm your selection by
pressing 2.
Select the time format
To select the time format
change between the 12 and
24, press 1. Confirm your
selection by pressing 2.
User manual 19
1 2
1 2
1 2 3
3
Multi-function

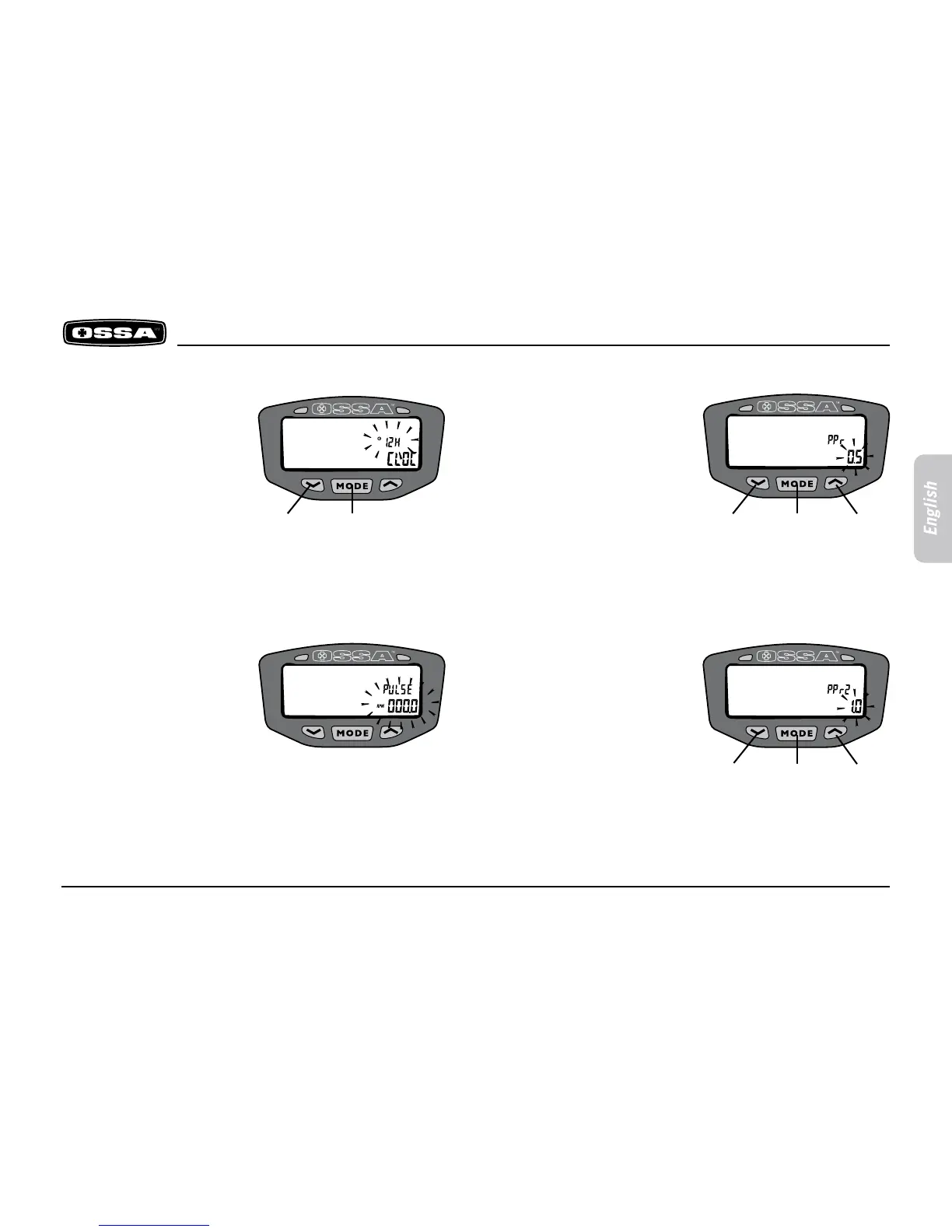

Time adjuster
Set the time by pressing
button 1 repeatedly. To move
to the next digit, press button
3. Confirm the selection by
pushing button 2.
Adjustment of the revolution pulse
(PPR)
Note:
This step must only be
followed for those vehicles
that change the PPR pulse
type to a specific turn rate. If
you don't know this value,
press button 2 to move on to
the next screen. Enter the
value by pressing button 1
repeatedly. To move on to the
next digit, press button 3.
Confirm the selection by
pushing button 2.
Adjustment of the revolution pulse
(PPR)
The indicator receives an
electric pulse each time the
engine turns (PPR). Default
value for 2 and 4 stroke
engines:
1 PPR. Enter the value by
pressing button 1 repeatedly.
To move on to the next digit,
press button 3. Confirm the
selection by pushing button 2.
Adjustment of the revolution pulse
(PPR)
Note:
This stage must only be
implemented if in the
previous stage the value 0
was entered.
Default value: 1.0. If you don’t
know this value press button
2 to move on to the next
screen. To move on to the
next digit, press button 3.
Confirm the selection by
pressing button 2.
User manual 19
