24 User manual
Front suspension
The front suspension is made up of a fork that fixes the wheel and
the front brake system in place. This fork is formed by the suspen-
sion bars that contain the shock absorber spring and the suspension
mechanism. They are connected to the upper part where the
direction pipe is located, a point of connection between the fork
and the chassis. A regulating screw and an air bleed are located on
the upper part of each suspension bar (see photo).
To regulate the extension, use the screw located on the right
suspension bar (Fig. A)
To regulate the compression use the screw located on the left
suspension bar (Fig. B)
Each of the suspension bars also has an air bleed to remove air that
accumulates in the inside of the fork stanchion (Fig. C)
A
B
C
C
User manual 25

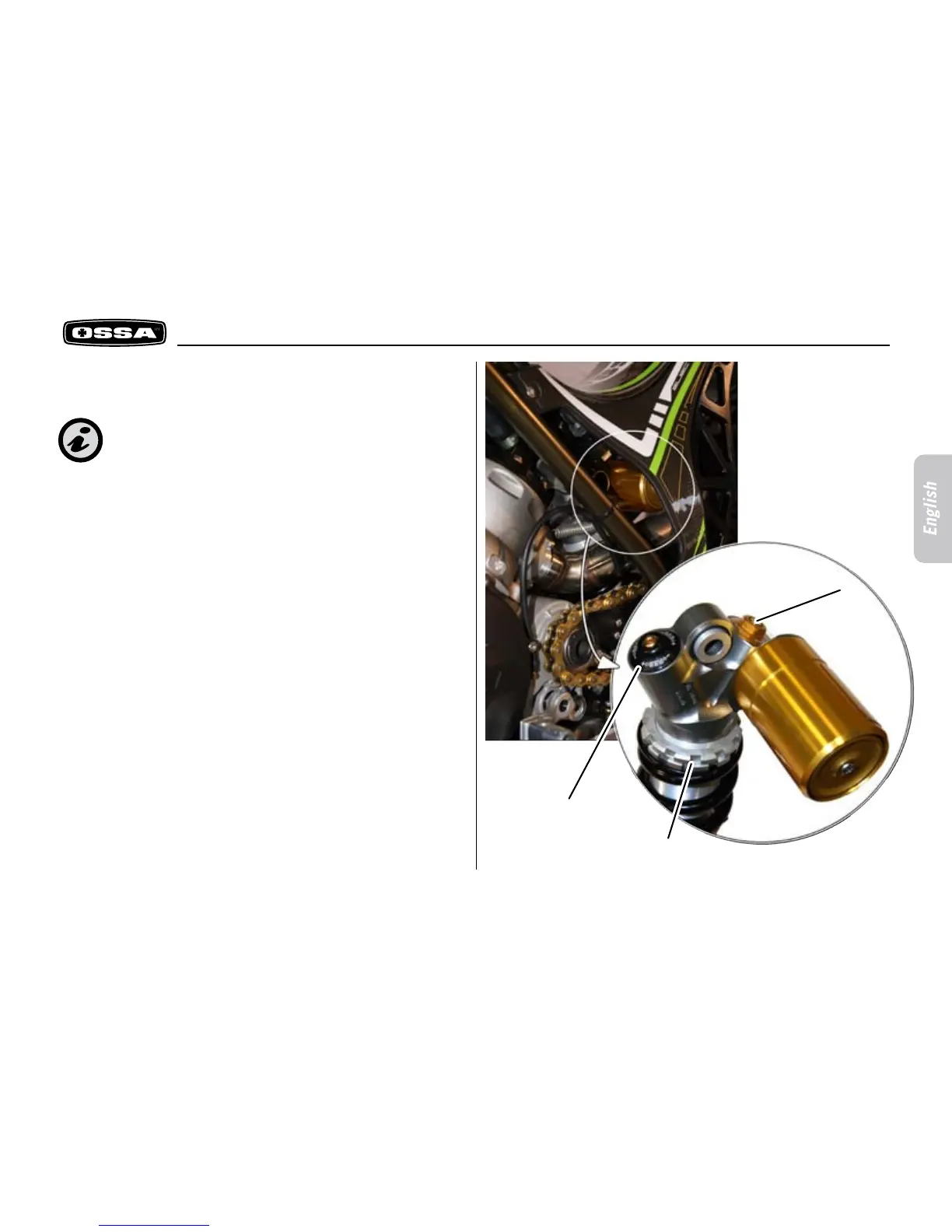

Rear suspension
The rear suspension is formed by a single shock absorber spring. The
pre-charge of this spring can be adjusted by turning the toothed
rings that dictate its direction.
The compression (C), extension (R) and spring pre-charge (see Fig.)
are adjustable in the rear shock absorber.
A special key is needed to adjust these toothed rings.
Adjustable rings for the spring pre-charge
R
C
User manual 25
