User’s Manual (Confidential)
OsteoSys Co., Ltd.
Model Designation : SONOST 3000 DOC. No. : OT06-2R7124
58

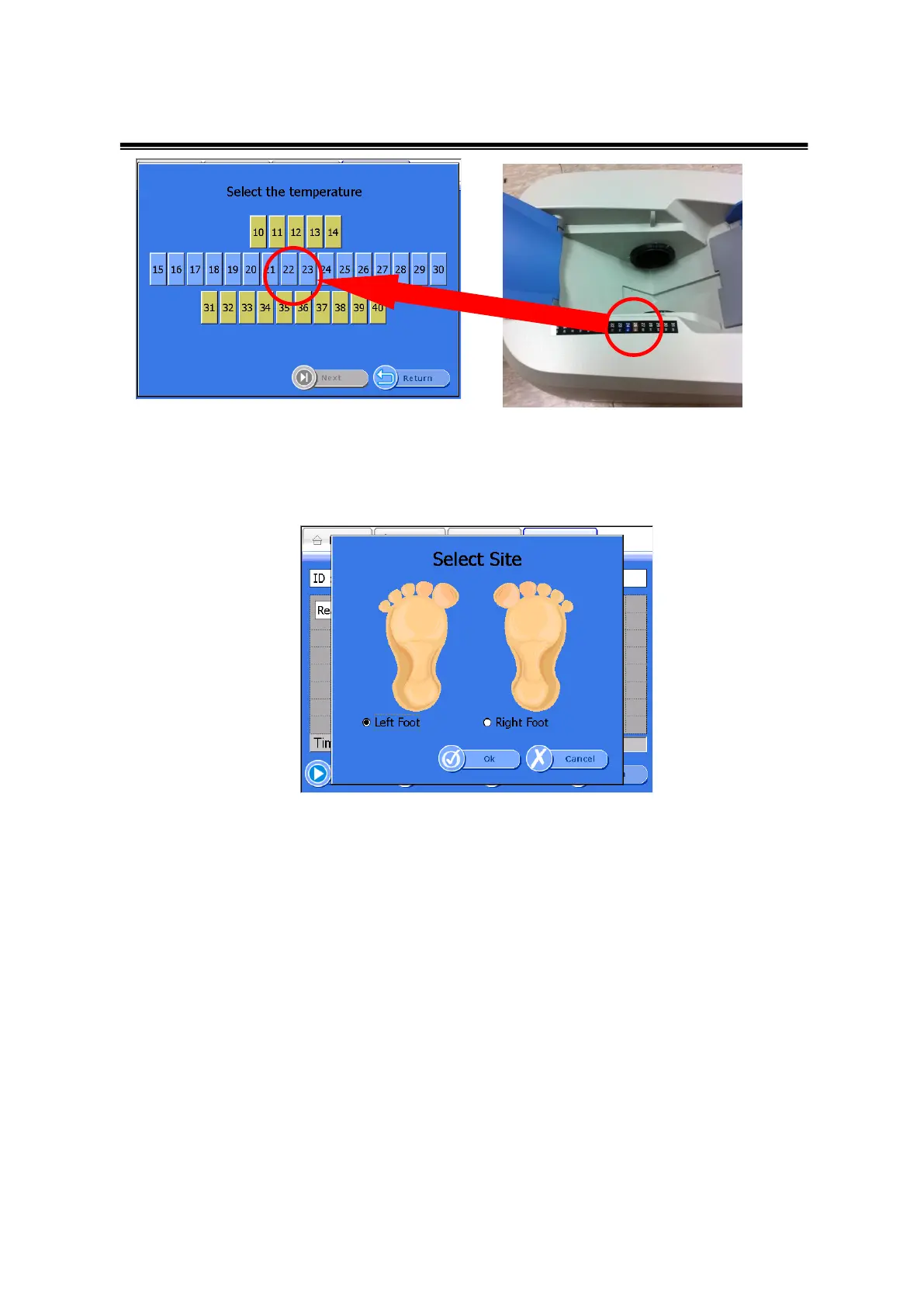

Temperature screen
Click <Next> to select the scan site of the foot and click <OK>.
Ultrasound waves are generated from the probes.
Select Site Window
When ultrasound waves are being generated, the <Start>button will change to
<Stop>button. In case of emergency, click <Stop>, and you can stop the
measurement in progress. In normal conditions, the generation of ultrasound waves
is finished in about 15 seconds, then the “Measure Complete” window will be
displayed with a notification sound.
When you click <Ok>, the detailed results are displayed as shown below.
