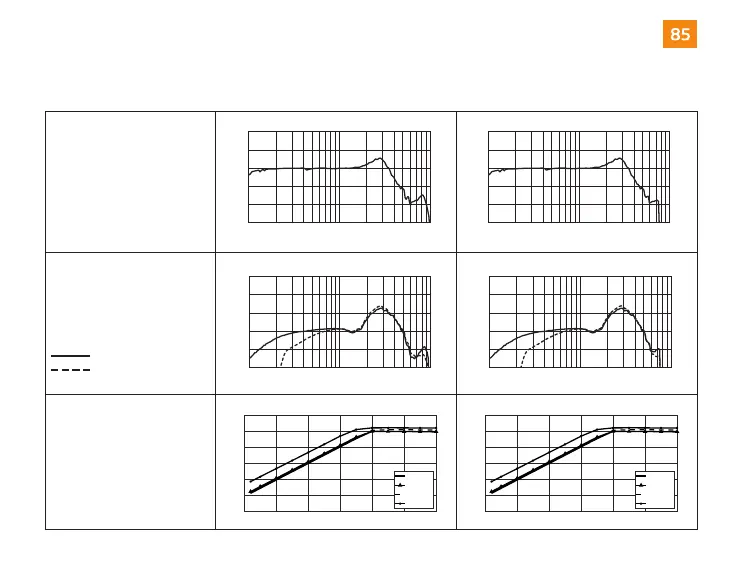

Oticon
Opn 1, Opn S 1 & Opn Play 1
Oticon Opn 2, Opn 3, Opn S 2,
Opn S 3, Opn Play 2, Siya 1,
Siya 2, Ruby 1, Ruby 2
OSPL90 – Output Sound
Pressure Level
Input: 90 dB SPL
Technical setting: A0
90
100
110
120
dB SPL
100 200
Hz 500 1000 2000 Hz 5000 10000
Opn1mRITE85_OSPL90_2cc − 26−09−2016 − taje − 11:05:35
90
100
110
120
dB SPL
100 200
Hz 500 1000 2000 Hz 5000 10000
Opn2+3mRITE85_OSPL90_2cc − 27−09−2016 − taje − 13:23:20
Frequency response
Input:
60 dB SPL (acoustic)
31.6 mA/m (magnetic)
Technical setting: N0
80
90
100
110
dB SPL
100 200
Hz 500 1000 2000 Hz 5000 10000
Opn1 miniRITE−T 85_MTfreqResp_2cc − 04−05−2017 − taje − 13:58:31
80
90
100
110
dB SPL
100 200
Hz 500 1000 2000 Hz 5000 10000
Opn2+3 miniRITE−T 85_MTfreqResp_2cc − 04−05−2017 − taje − 14:28:44
Input-Output
Technical Setting: N0
40 50 60 70 80 90
70
80
90
100
110
dB SPL
500 Hz
800 Hz
1600 Hz
2000 Hz
40 50 60 70 80 90
70
80
90
100
110
dB SPL
500 Hz
800 Hz
1600 Hz
2000 Hz
miniRITE / miniRITE T
Acoustic input
Magnetic input
(miniRITE T)
