1
1.
Material&Dimension
1)
Material
Caser and Cover and Press button: ABS,
LCD window: PMMA
2)

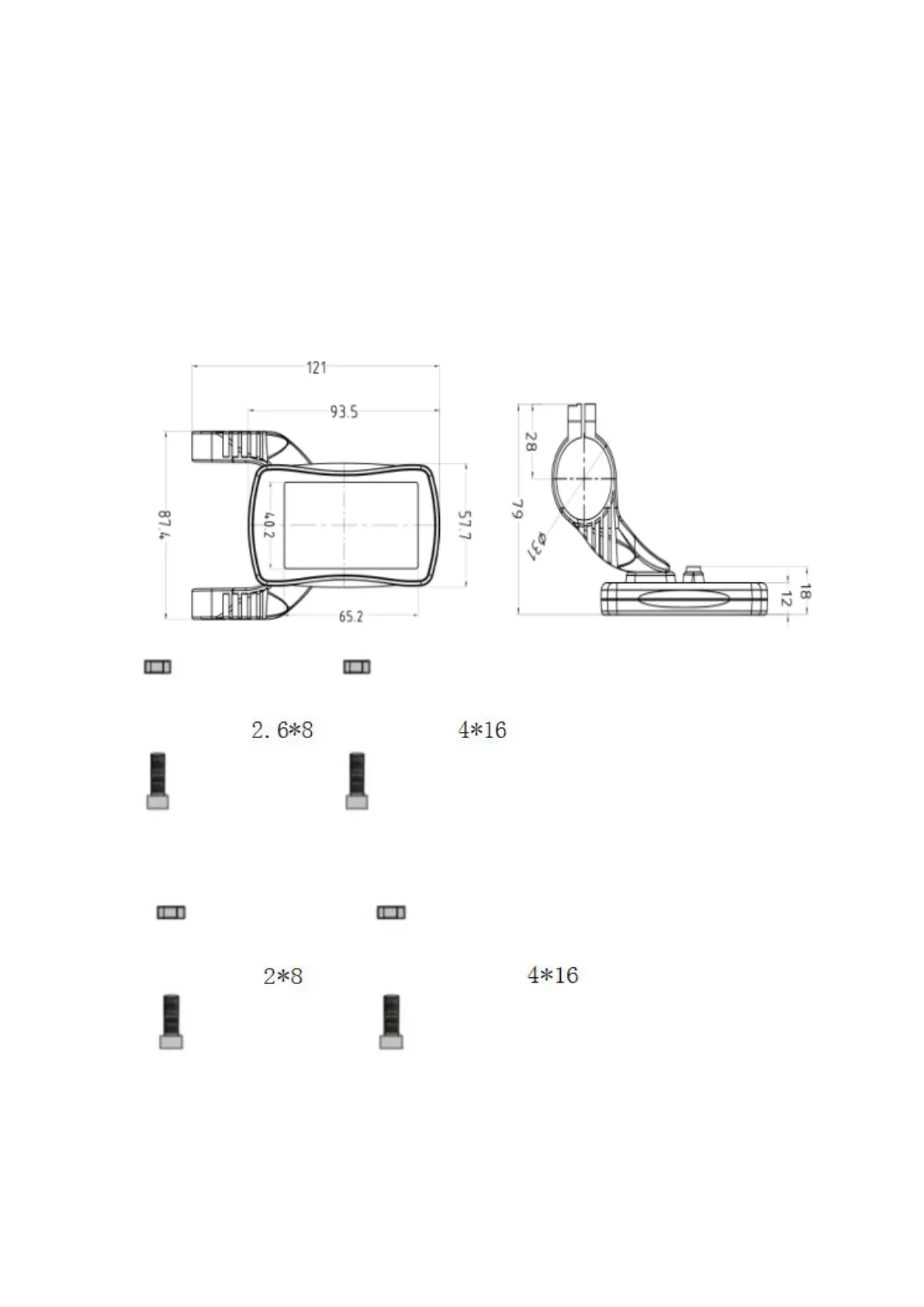

Outside and mounting dimensions(mm)
3)
Press button outside and mounting dimensions(mm)
Scew
Scew
Scew
Scew
